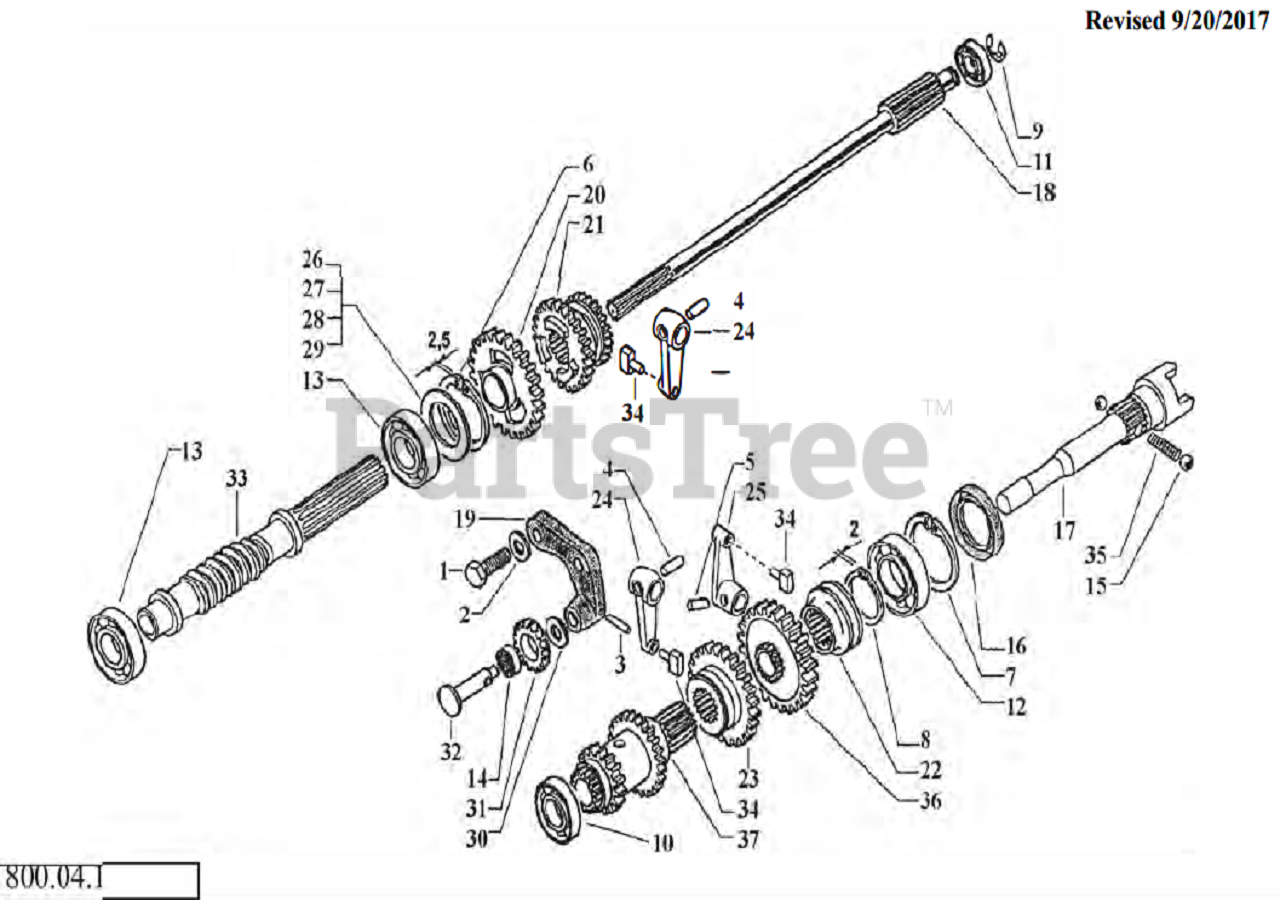

852 - BCS America Two-Wheeled Tractor Transmission (SN: 937702 - 1022832) Parts Diagram

Two-Wheeled Tractor

Transmission (SN: 937702 - 1022832) Parts Diagram

  • Title
1

BCS America 311.12211

CAP SCREW M10X30

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 314.21101

WASHER, SUPER M10

Note:

$1.99

$

In Stock, only 3 left!

0

3

BCS America 342.11042

PIN, SPLIT

Note:

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 342.13060

PIN SPIRAL SPLIT

Note:

$1.99

$

In Stock, only 2 left!

0

5

BCS America 342.13061

PIN SPIRAL SPLIT

Note:

$1.49

$

In Stock, Qty 6

0

6

BCS America 351.11053

SNAP RING D52

Note:

$7.49

$

Usually ships in 5-8 days

0

7

BCS America 351.11055

SNAP RING D55

Note:

$2.49

$

In Stock, only 1 left!

0

8

BCS America 351.21031

SNAP RING D31

Note:

$1.99

$

In Stock, only 4 left!

0

9

BCS America 352.11120

RING, SPLIT

Note:

$1.49

$

In Stock, Qty 8

0

10

BCS America 371.11150

BEARING 15X35X11

Note:

$

$

Currently unavailable

11

BCS America 371.11152

BEARING 15X42X13

Note:

$17.99

$

Usually ships in 5-8 days

0

12

BCS America 371.12229

BEARING 30X55X13

Note:

$19.99

$

Usually ships in 5-8 days

0

13

371.41250

BEARING 25X52X15

Note:

$

$

Not available

14

BCS America 373.20120

BEARING 12X15X10

Note:

$24.99

$

Usually ships in 5-8 days

0

15

BCS America 379.10832

BALL 1/4"

Note:

$0.99

$

In Stock, Qty 10

0

16

BCS America 382.13800

OIL SEAL 38X55X7

Note:

$11.99

$

Usually ships in 5-8 days

0

17

BCS America 524.56336

SHAFT PTO

Note:

$188.99

$

Usually ships in 5-8 days

0

18

BCS America 524.56340

MAIN INPUT SHAFT

Note:

$277.99

$

Usually ships in 5-8 days

0

19

BCS America 524.56349

SUPPORT REVERSE GEAR

Note:

$118.99

$

Usually ships in 5-8 days

0

20

BCS America 524.56354

GEAR, FIRST

Note:

$143.99

$

Usually ships in 5-8 days

0

21

BCS America 524.56360

GEAR, SLIDER

Note:

$162.99

$

Usually ships in 5-8 days

0

22

BCS America 524.56362

PTO SLIDER

Note:

$94.99

$

Usually ships in 5-8 days

0

23

BCS America 524.56370

SLIDER REVERSER

Note:

$156.99

$

Usually ships in 5-8 days

0

24

BCS America 524.56389

LEVER REVERSER

Note:

$49.99

$

Usually ships in 5-8 days

0

25

BCS America 524.56390

LEVER PTO ENGAEMENT

Note:

$61.99

$

Usually ships in 5-8 days

0

26

BCS America 563.56328

SHIM 1.5 MM

Note:

$12.99

$

In Stock, only 1 left!

0

27

BCS America 563.56329

SHIM 1.6 MM

Note:

$12.99

$

Usually ships in 5-8 days

0

28

BCS America 563.56330

SHIM 1.7 MM

Note:

$11.99

$

Usually ships in 5-8 days

0

29

BCS America 563.56331

SHIM 1.8 MM

Note:

$12.99

$

Usually ships in 5-8 days

0

30

BCS America 563.56348

WASHER

Note:

$5.49

$

Usually ships in 5-8 days

0

31

BCS America 564.56347

REVESER GEAR

Note:

$124.99

$

Usually ships in 5-8 days

0

32

BCS America 564.56351

PIN REVERSE GEAR

Note:

$

$

Not available

33

BCS America 564.56478

WORM GEAR

Note:

$245.99

$

Usually ships in 5-8 days

0

34

$10.99

$

Usually ships in 5-8 days

0

35

BCS America 580.56391

SPRING FOR PTO BALLS

Note:

$1.99

$

In Stock, Qty 5

0

36

BCS America 590.56365

GEAR PTO

Note:

$

$

Currently unavailable

37

BCS America 590.56383

GEAR CLUSTER

Note:

$318.99

$

Usually ships in 5-8 days

0
