852 - BCS America Two-Wheeled Tractor Steering Column (SN: 859161 - 892207) Parts Diagram

Two-Wheeled Tractor

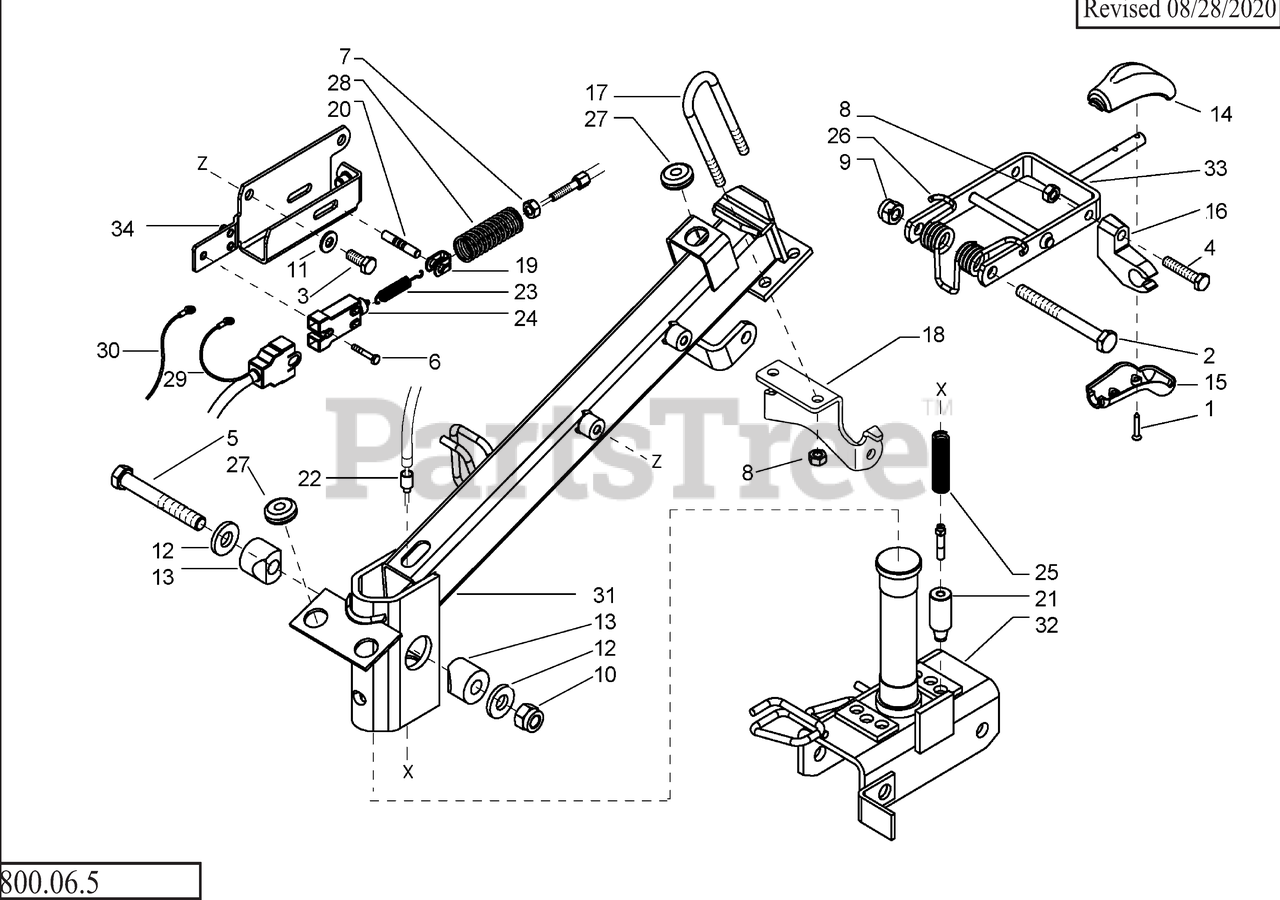

Steering Column (SN: 859161 - 892207) Parts Diagram

  • Title

1

BCS America 311.00451

SCREW, M5X25

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 311.11229

CAP SCREW, M10X110 UNI 5737-8G

Note:

$2.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12150

CAP SCREW, M8X20 UNI 5739-8G

Note:

$1.49

$

In Stock, only 4 left!

0

4

BCS America 311.12165

CAP SCREW,

Note:

$1.99

$

In Stock, only 1 left!

0

5

BCS America 311.12293

CAP SCREW, M12X80

Note:

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 311.21024

CAP SCREW

Note:

$

$

Currently unavailable

7

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

8

BCS America 312.41080

NUT, SELF LOCKING, M8

Note:

$0.99

$

In Stock, Qty 11

0

9

BCS America 312.41100

NUT, LOCK STANDARD, M10

Note:

$1.49

$

In Stock, only 2 left!

0

10

BCS America 312.41126

NUT, LOCK DEFORMED, M12

Note:

$1.99

$

Usually ships in 5-8 days

0

11

BCS America 314.21083

WASHER, SUPER, M8

Note:

$1.49

$

In Stock, Qty 7

0

12

BCS America 314.21100

WASHER, SPRING

Note:

$

$

Currently unavailable

13

BCS America 521.56917

WEDGE

Note:

$24.99

$

Usually ships in 5-8 days

0

14

BCS America 551.57212

KNOB, UPPER HANDLE RELEASE

Note:

$6.49

$

Usually ships in 5-8 days

0

15

BCS America 551.57213

KNOB, LOWER HANDLE RELEASE

Note:

$6.49

$

In Stock, only 3 left!

0

16

BCS America 552.43340

SUPPORT, CONTROL ROD

Note:

$

$

Not available

17

BCS America 561.56940

U-BOLT

Note:

$8.49

$

Usually ships in 5-8 days

0

18

BCS America 561.56974

BRACKET

Note:

$

$

Currently unavailable

19

BCS America 561.57411

MOTOR STOP FORK

Note:

$16.99

$

Usually ships in 5-8 days

0

20

BCS America 561.57412

M/S SPRING CHECK PIN

Note:

$6.49

$

Usually ships in 5-8 days

0

21

BCS America 563.56924

CAP

Note:

$32.99

$

Usually ships in 5-8 days

0

22

BCS America 580.42167

SHEATH END

Note:

$2.99

$

In Stock, only 2 left!

0

23

BCS America 580.47712

SPRING

Note:

$14.99

$

Usually ships in 5-8 days

0

24

BCS America 580.48009

INTERLOCK SAFETY

Note:

$32.99

$

In Stock, only 1 left!

0

25

BCS America 580.56918

SPRING, STEERING COLUMN

Note:

$4.49

$

Usually ships in 5-8 days

0

26

BCS America 580.56942

SPRING, HANDLEBAR RELEASE

Note:

$16.99

$

Usually ships in 5-8 days

0

27

BCS America 580.56991

SUPPORT, CAP

Note:

$4.99

$

In Stock, only 3 left!

0

28

BCS America 580.57413

CHECK SPRING, MOTOR STOP

Note:

$4.99

$

Usually ships in 5-8 days

0

29

BCS America 580.57417

WIRE HARNESS, MOTOR STOP

Note:

$27.99

$

Usually ships in 5-8 days

0

30

BCS America 580.57419

GROUND WIRE

Note:

$

$

Currently unavailable

31

BCS America 590.57000

STEERING COLUMN

Note:

$

$

Currently unavailable

32

BCS America 590.57006

STEERING COUPLER

Note:

$225.99

$

Usually ships in 5-8 days

0

33

BCS America 590.57010

LEVER, HANDLE BAR

Note:

$87.99

$

Usually ships in 5-8 days

0

34

BCS America 592.57409

SUPPORT, ENGINE STOP

Note:

$89.99

$

Usually ships in 5-8 days

0
