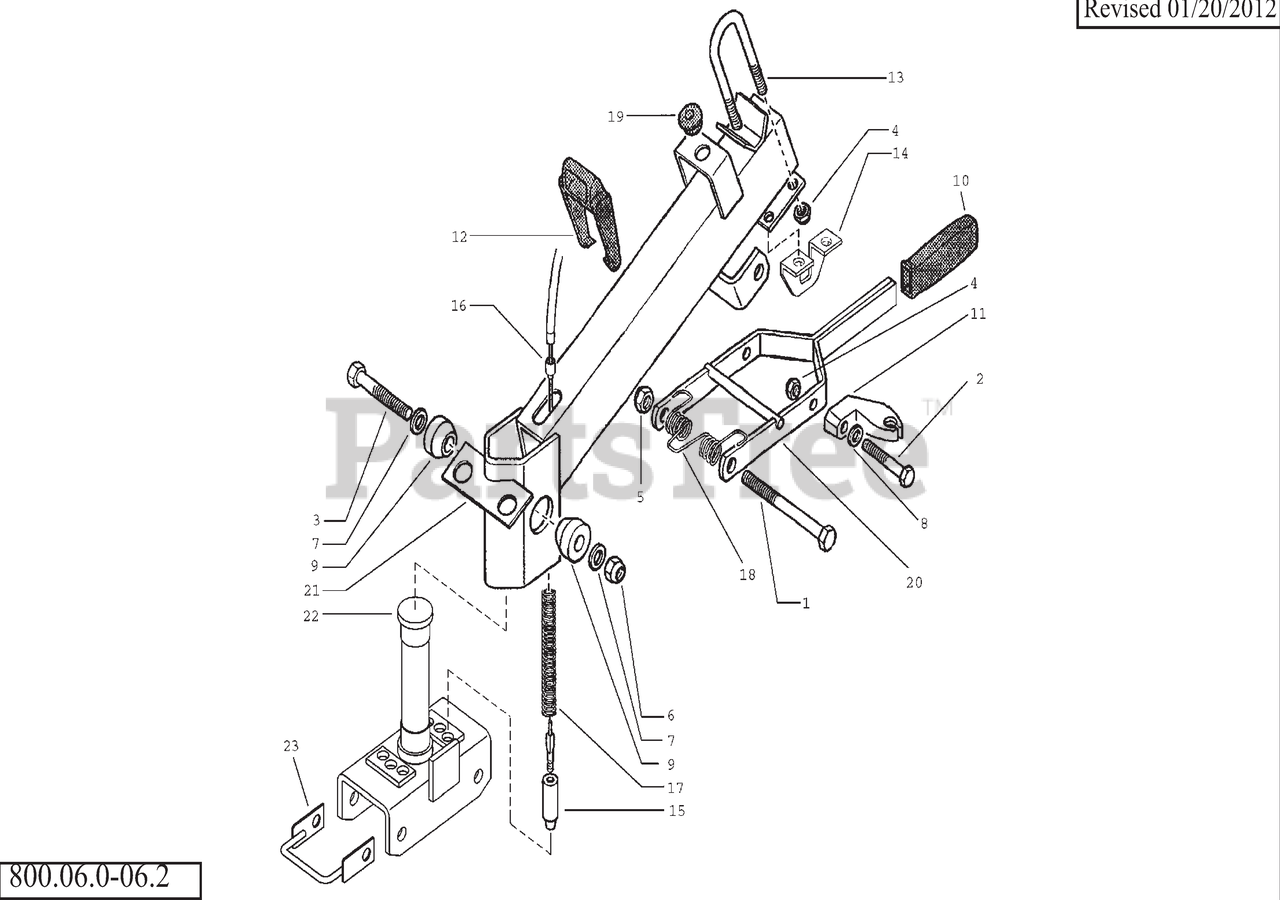

852 - BCS America Two-Wheeled Tractor Steering Column (SN: 000001 - 783461) Parts Diagram

Two-Wheeled Tractor

Steering Column (SN: 000001 - 783461) Parts Diagram

  • Title

1

BCS America 311.11229

CAP SCREW, M10X110

Note:

$2.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12154

CAP SCREW, M8X40

Note:

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.12293

CAP SCREW, M12X80

Note:

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 312.41080

NUT, SELF LOCKING, M8

Note:

$0.99

$

In Stock, Qty 11

0

5

BCS America 312.41100

NUT, SELF LOCKING, M10

Note:

$1.49

$

In Stock, only 2 left!

0

6

BCS America 312.41126

NUT, LOCK DEFORMED, M12

Note:

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.21100

SPRING

Note:

$

$

Currently unavailable

8

BCS America 314.23084

WASHER, LOCK, M8.4

Note:

$0.99

$

In Stock, Qty 10

0

9

BCS America 521.56917

WEDGE

Note:

$24.99

$

Usually ships in 5-8 days

0

10

BCS America 551.02714

KNOB

Note:

$14.99

$

Usually ships in 5-8 days

0

11

BCS America 552.43340

SUPPORT, CONTROL ROD

Note:

$

$

Not available

12

BCS America 552.49668

GUIDE, CABLE

Note:

$9.49

$

In Stock, only 1 left!

0

13

BCS America 561.56940

U-BOLT

Note:

$8.49

$

Usually ships in 5-8 days

0

14

BCS America 561.56948

BRACKET

Note:

$23.99

$

Usually ships in 5-8 days

0

15

BCS America 563.56924

CAP

Note:

$32.99

$

Usually ships in 5-8 days

0

16

BCS America 580.42167

SHEATH END

Note:

$2.99

$

In Stock, only 2 left!

0

17

BCS America 580.56918

SPRING, STEERING COLUMN

Note:

$4.49

$

Usually ships in 5-8 days

0

18

BCS America 580.56942

SPRING, HANDLEBAR RELEASE

Note:

$16.99

$

Usually ships in 5-8 days

0

19

BCS America 580.56991

SUPPORT, CAP

Note:

$4.99

$

In Stock, only 3 left!

0

20

BCS America 590.56935

LEVER, HANDLEBAR SELECTION

Note:

$71.99

$

Usually ships in 5-8 days

0

21

590.57025

STEERING COLUMN

Note:

$

$

Not available

22

590.57033

COUPLER, STEERING COLUMN

Note:

$

$

Not available

23

590.57048

LOOP

Note:

$

$

Not available
