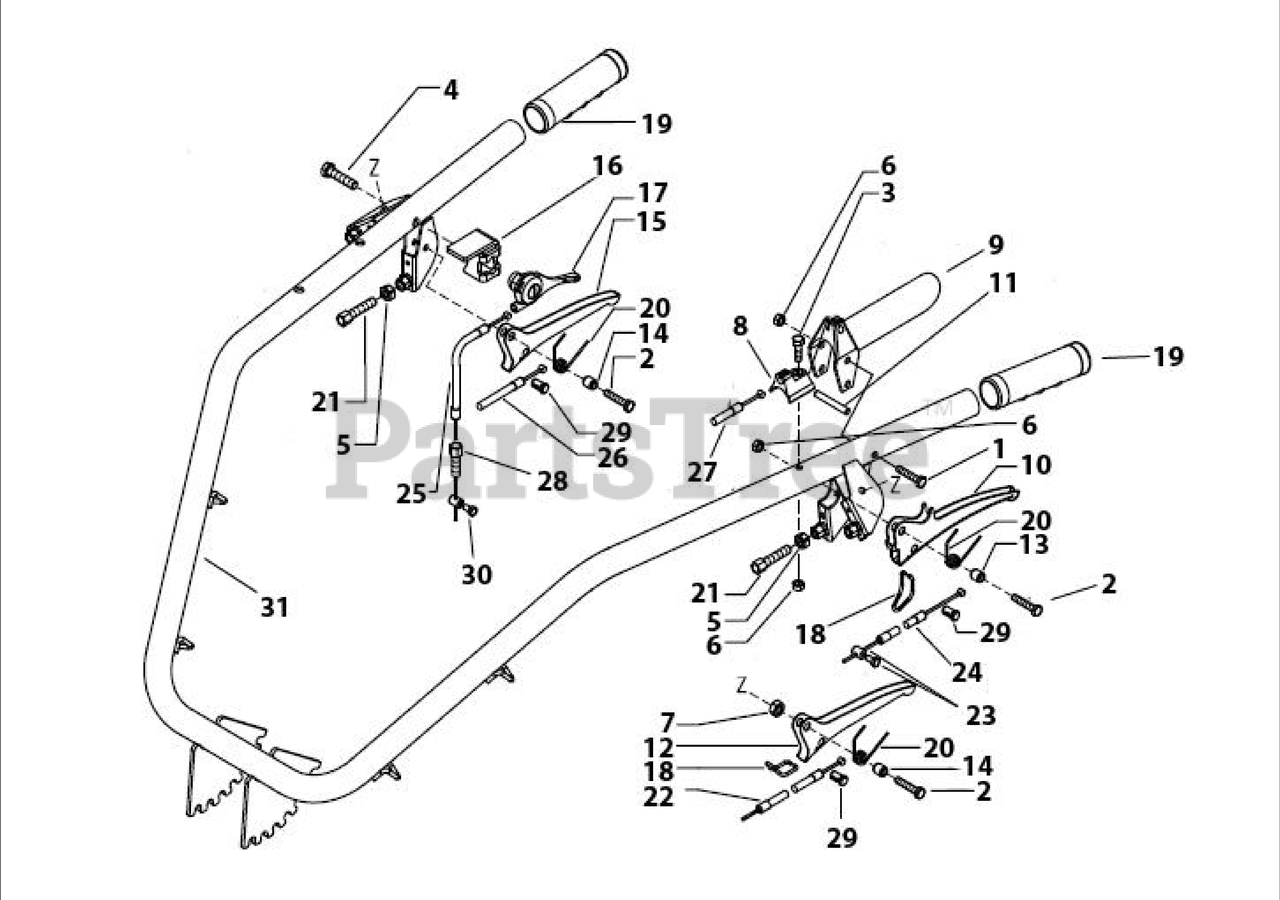

852 - BCS America Two-Wheeled Tractor Handlebars (SN: 874157 - 981377) Parts Diagram

Two-Wheeled Tractor

Handlebars (SN: 874157 - 981377) Parts Diagram

  • Title

1

BCS America 311.11097

CAP SCREW, M6X45

Note:

$1.49

$

In Stock, only 2 left!

0

2

BCS America 311.12089

CAP SCREW, M6X25

Note:

$1.49

$

In Stock, only 3 left!

0

3

BCS America 311.12092

CAP SCREW, M6X35

Note:

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.21020

SCREW

Note:

$1.99

$

In Stock, only 4 left!

0

5

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

6

BCS America 312.41060

NUT, SELF LOCK M6

Note:

$0.99

$

In Stock, only 4 left!

0

7

BCS America 312.41080

NUT, SELF LOCKING M8

Note:

$0.99

$

In Stock, Qty 11

0

8

BCS America 552.48038

CABLE GUIDE

Note:

$7.49

$

In Stock, only 1 left!

0

9

BCS America 552.48041

LEVER, MOTOR STOP ( OPC)

Note:

$24.99

$

In Stock, Qty 8

0

10

BCS America 561.47655

LEVER, CLUTCH

Note:

$45.99

$

In Stock, only 1 left!

0

11

BCS America 561.48037

PIN, MOTOR STOP LEVER

Note:

$3.49

$

Usually ships in 5-8 days

0

12

BCS America 561.48470

LEVER, BRAKE (LEFT OR RIGHT)

Note:

$32.99

$

In Stock, only 1 left!

0

13

BCS America 561.50361

SPACER, LEVER

Note:

$4.99

$

In Stock, only 1 left!

0

14

561.56603

SPACER, LEVER

Note:

$

$

Not available

15

561.56604

LEVER, STEERING RELEASE

Note:

$

$

Not available

16

561.56874

PANEL

Note:

$

$

Not available

17

BCS America 580.02538

LEVER, THROTTLE

Note:

$34.99

$

In Stock, only 1 left!

0

18

BCS America 580.47649

CLIP, WIRE STOP

Note:

$7.99

$

Usually ships in 5-8 days

0

19

BCS America 580.48000

GRIP (LEFT OR RIGHT)

Note:

$7.49

$

Usually ships in 5-8 days

0

20

BCS America 580.56593

SPRING, LEVER

Note:

$5.49

$

In Stock, only 1 left!

0

21

BCS America 580.56595

SCREW, ADJUSTING M8

Note:

$9.49

$

In Stock, only 2 left!

0

22

580.57205

CABLE & SHEATH BRAKE (L OR R)

Note:

$

$

Not available

23

BCS America 580.57263

CLAMP, CABLE

Note:

$5.99

$

Usually ships in 5-8 days

0

24

580.57354

CLUTCH CABLE

Note:

$

$

Not available

25

580.57355

CABLE, THROTTLE

Note:

$

$

Not available

26

580.57369

CABLE, STEERING RELEASE

Note:

$

$

Not available

27

BCS America 580.57418

CABLE, LEVER MOTOR STOP (OPC)

Note:

$31.99

$

Usually ships in 5-8 days

0

28

BCS America 581.47704

SCREW, ADJUSTING M6

Note:

$9.49

$

Usually ships in 5-8 days

0

29

BCS America 581.50313

BARREL

Note:

$11.99

$

In Stock, only 2 left!

0

30

BCS America 581.56156

CLAMP, THROTTLE

Note:

$20.99

$

Usually ships in 5-8 days

0

31

592.57164

HANDLEBAR

Note:

$

$

Not available
