852 - BCS America Two-Wheeled Tractor Handlebar RH Controls (SN: 963590 & Above) Parts Diagram

Two-Wheeled Tractor

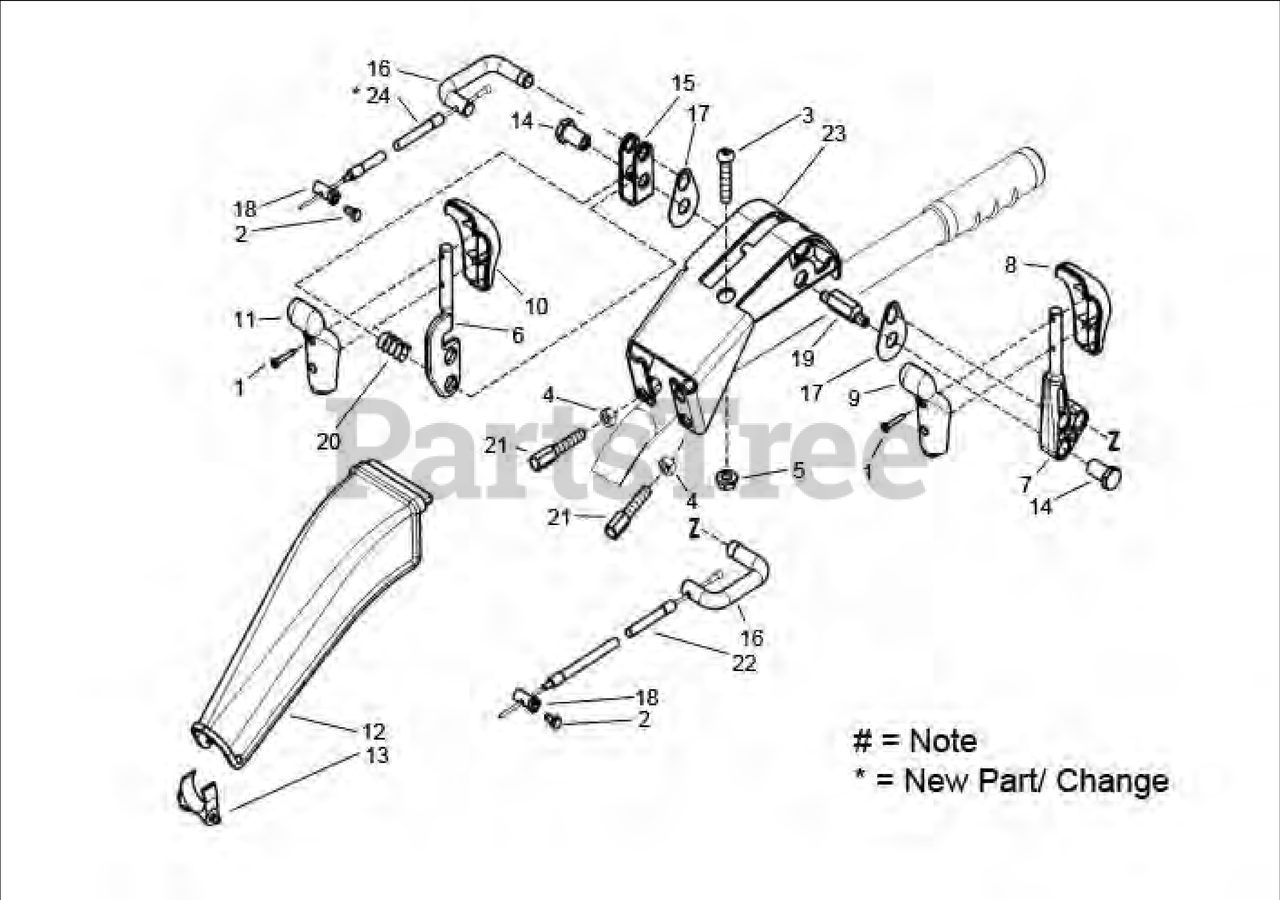

Handlebar RH Controls (SN: 963590 & Above) Parts Diagram

  • Title
1

BCS America 311.00451

SCREW M5X6

Note:

$0.99

$

In Stock, Qty 8

0

2

BCS America 311.12090

CAP SCREW, M6X16

Note:

$0.99

$

In Stock, only 4 left!

0

3

BCS America 311.21020

SCREW

Note:

$1.99

$

In Stock, only 4 left!

0

4

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

5

BCS America 312.41084

NUT, SELF LOCKING M8

Note:

$1.49

$

Usually ships in 5-8 days

0

6

521.56810

LEVER REVERSE

Note:

$

$

Not available

7

BCS America 531.56860

LEVER DIFFERENTIAL

Note:

$31.99

$

In Stock, only 1 left!

0

8

BCS America 551.57212

GRIP UPPER BLACK

Note:

$6.49

$

In Stock, only 2 left!

0

9

BCS America 551.57213

GRIP LOWER BLACK

Note:

$6.49

$

In Stock, only 3 left!

0

10

BCS America 551.57214

GRIP UPPER RED

Note:

$6.49

$

Usually ships in 5-8 days

0

11

BCS America 551.57215

GRIP LOWER RED

Note:

$6.49

$

In Stock, only 1 left!

0

12

BCS America 552.56835

COVER

Note:

$32.99

$

In Stock, only 1 left!

0

13

BCS America 552.56836

CROSS PIECE

Note:

$10.99

$

Usually ships in 5-8 days

0

14

BCS America 561.48287

BUSHING, REVERSE LEVER

Note:

$9.99

$

In Stock, only 2 left!

0

15

$16.99

$

Usually ships in 5-8 days

0

16

BCS America 561.56832

ANCHOR PIN

Note:

$32.99

$

Usually ships in 5-8 days

0

17

BCS America 563.56833

PLATE, SMALL

Note:

$5.49

$

In Stock, only 3 left!

0

18

BCS America 563.56840

CLAMP, CABLE (Cap Screw not included)

Note:

$5.49

$

Usually ships in 5-8 days

0

19

$32.99

$

Usually ships in 5-8 days

0

20

BCS America 580.49830

SPRING

Note:

$4.99

$

In Stock, only 1 left!

0

21

BCS America 580.56595

CABLE ADJUSTER

Note:

$9.49

$

In Stock, only 2 left!

0

22

BCS America 580.43216

CABLE (DIFFERENTIAL)

Note:

$25.99

$

In Stock, only 4 left!

0

23

BCS America 592.56850

SUPPORT BRACKET

Note:

$139.99

$

Usually ships in 5-8 days

0

24

580.56846

CABLE (FORWARD / REVERSE)

Note:

$

$

Not available
