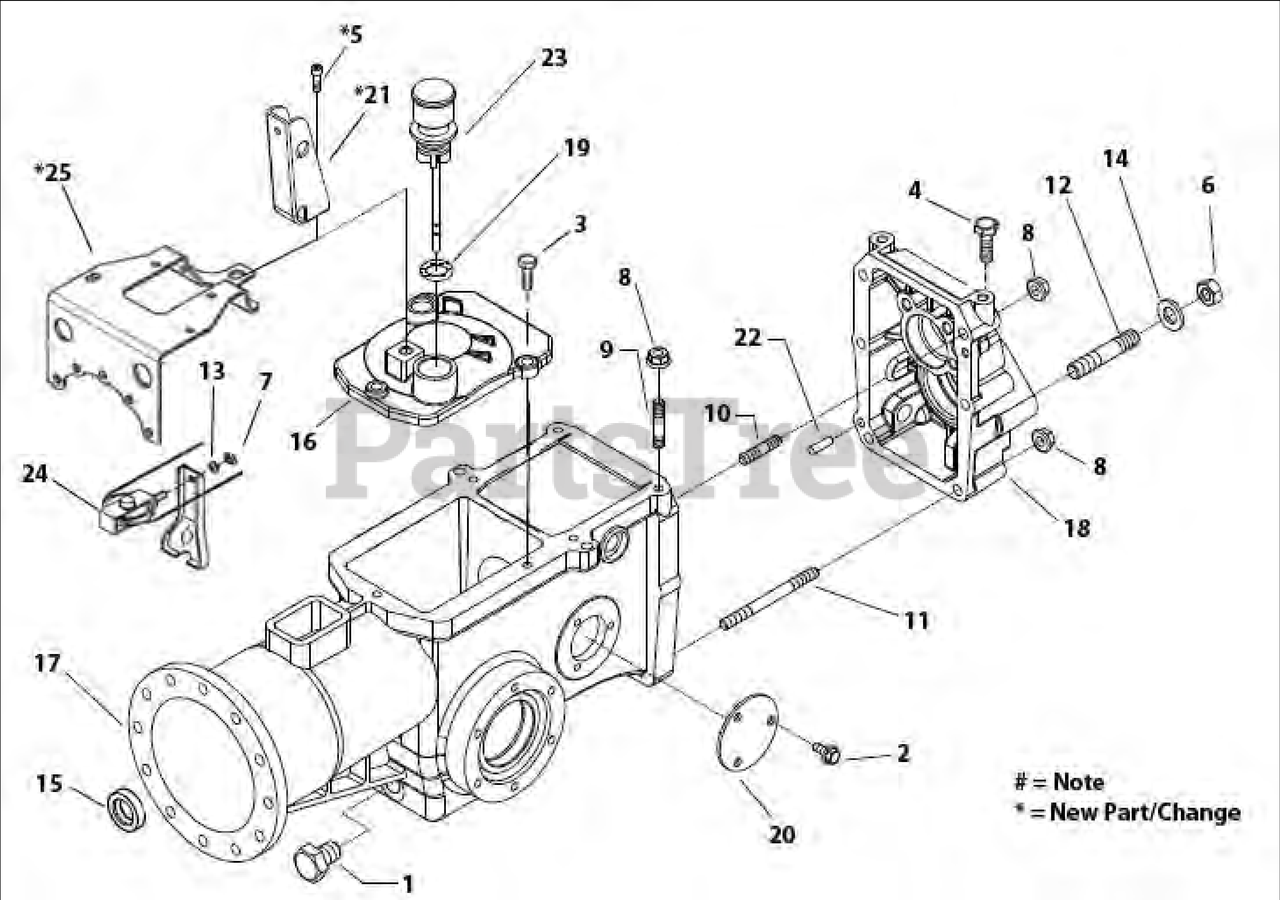

852 - BCS America Two-Wheeled Tractor Gearbox (SN: 981378 - 1035748) Parts Diagram

Two-Wheeled Tractor

Gearbox (SN: 981378 - 1035748) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG, 1/4

Note:

$5.49

$

In Stock, only 2 left!

0

2

BCS America 311.12083

CAP SCREW, M6X12

Note:

$1.49

$

In Stock, only 1 left!

0

3

BCS America 311.12167

CAP SCREW, M8X30 FLANGED HEAD

Note:

$1.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12170

CAP SCREW, M8X20

Note:

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 311.52103

CAP SCREW, M10X25

Note:

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 312.21121

NUT, M12 (TIGHTEN TO 60 FT LBS)

Note:

$1.99

$

In Stock, only 2 left!

0

7

BCS America 312.41080

NUT, SELF LOCKING M8

Note:

$0.99

$

In Stock, Qty 11

0

8

BCS America 312.41085

NUT, SELF LOCKING DEFORMED M8

Note:

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 313.12082

STUD M8X38X14X20

Note:

$1.99

$

Usually ships in 5-8 days

0

10

BCS America 313.12084

STUD M8X58X16X16

Note:

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12094

STUD M8X68

Note:

$2.49

$

Usually ships in 5-8 days

0

12

BCS America 313.12125

PTO STUD M12X1.25X12X64

Note:

$4.49

$

In Stock, only 2 left!

0

13

BCS America 314.21083

WASHER M8

Note:

$1.49

$

In Stock, Qty 7

0

14

BCS America 314.21132

WASHER TAPERED M13X24X3

Note:

$1.99

$

In Stock, only 1 left!

0

15

BCS America 382.11500

OIL SEAL 15X28X7

Note:

$8.49

$

Usually ships in 5-8 days

0

16

BCS America 531.43875

GEAR BOX COVER

Note:

$85.99

$

Usually ships in 5-8 days

0

17

BCS America 531.56326

GEAR BOX CASE

Note:

$708.99

$

Usually ships in 5-8 days

0

18

BCS America 531.56332

REAR END COVER

Note:

$163.99

$

In Stock, only 1 left!

0

19

BCS America 551.02678

O-RING , DIPSTICK

Note:

$1.49

$

In Stock, Qty 5

0

20

BCS America 561.47520

SIDE COVER

Note:

$11.99

$

Usually ships in 5-8 days

0

21

BCS America 561.47923

CLUTCH CABLE BRACKET ( Recoil Start Only)

Note:

$32.99

$

Usually ships in 5-8 days

0

22

BCS America 580.43053

PARALLEL PIN

Note:

$1.49

$

Usually ships in 5-8 days

0

23

BCS America 590.15425

DIP STICK VENTED W/CAP

Note:

$

$

Not available

24

BCS America 590.56258

PULLEY ASSEMBLY (Electric Start Only)

Note:

$62.99

$

Usually ships in 5-8 days

0

25

561.C1003

SUPPORT BRACKET

Note:

$

$

Not available
