852 - BCS America Two-Wheeled Tractor Gearbox (SN: 000001 - 859160) Parts Diagram

Two-Wheeled Tractor

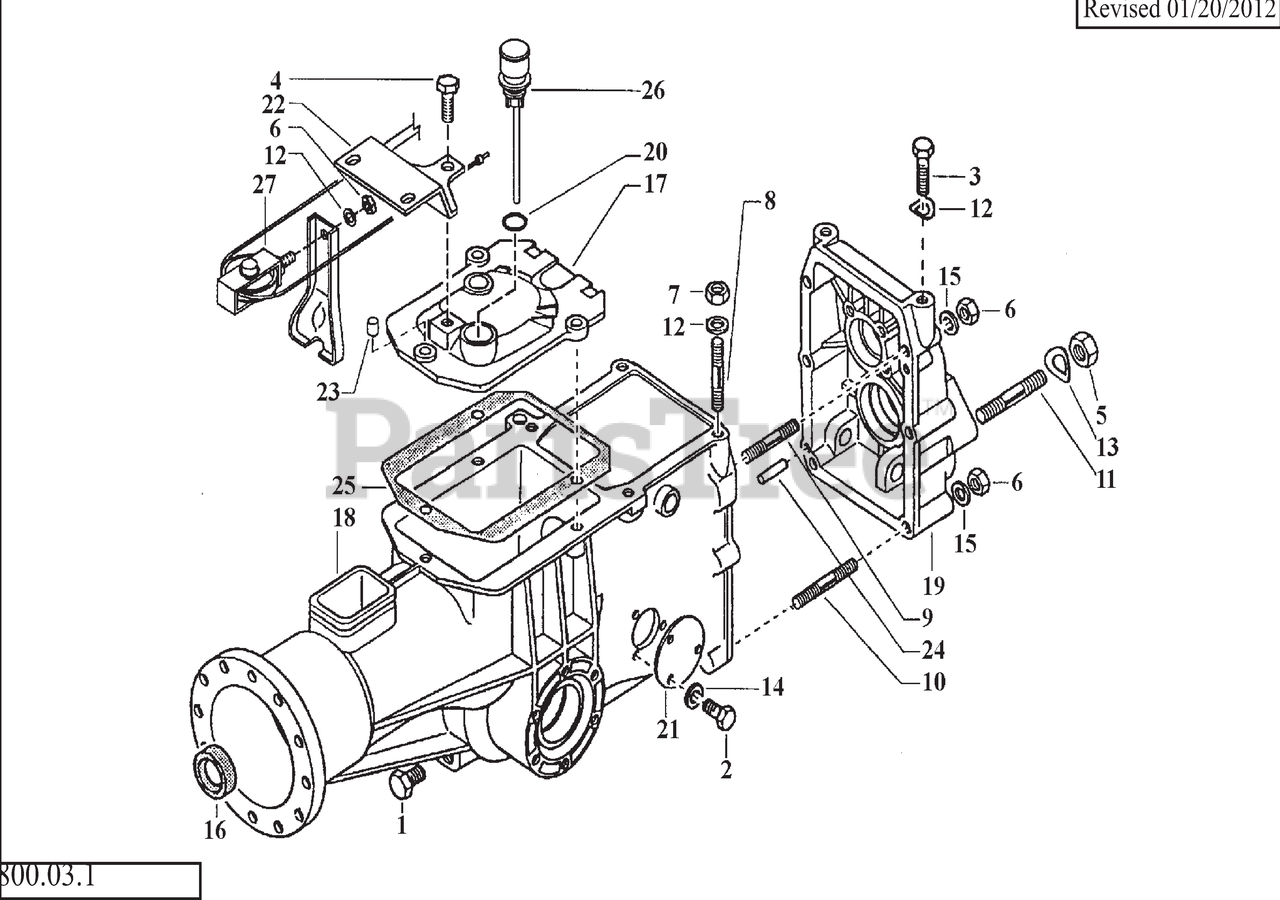

Gearbox (SN: 000001 - 859160) Parts Diagram

  • Title
1

BCS America 300.40001

PLUG, 1/4

Note:

$5.49

$

In Stock, only 2 left!

0

2

BCS America 311.11090

CAP SCREW, M6X10

Note:

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 311.12150

CAP SCREW, M8X20

Note:

$1.49

$

In Stock, only 4 left!

0

4

BCS America 311.12219

CAP SCREW, M10X25

Note:

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 312.21121

NUT, M12

Note:

$1.99

$

Usually ships in 5-8 days

0

6

BCS America 312.41080

NUT, LOCK, M8

Note:

$0.99

$

In Stock, Qty 11

0

7

BCS America 312.41085

NUT, DEFORMED LOCK, M8

Note:

$1.99

$

Usually ships in 5-8 days

0

8

BCS America 313.12082

STUD, M8X38X14X20

Note:

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 313.12084

STUD, M8X58X16X16

Note:

$2.49

$

Usually ships in 5-8 days

0

10

BCS America 313.12094

STUD, M8X68X14X36

Note:

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12125

STUD, M64X12X1 25X26X12

Note:

$4.49

$

Usually ships in 5-8 days

0

12

BCS America 314.21083

WASHER, SUPER, M8

Note:

$1.49

$

In Stock, Qty 7

0

13

BCS America 314.21132

WASHER, TAPERED, M13X24X3

Note:

$1.99

$

In Stock, only 1 left!

0

14

BCS America 314.22064

WASHER, LOCK, M6.4

Note:

$0.99

$

Usually ships in 5-8 days

0

15

BCS America 314.23084

WASHER, LOCK, M8.4

Note:

$0.99

$

In Stock, Qty 10

0

16

BCS America 382.11500

OIL SEAL, 15X28X6

Note:

$8.49

$

In Stock, only 1 left!

0

17

BCS America 531.43875

COVER, GEARBOX

Note:

$85.99

$

Usually ships in 5-8 days

0

18

BCS America 531.56326

GEARBOX

Note:

$708.99

$

Usually ships in 5-8 days

0

19

BCS America 531.56332

REAR COVER

Note:

$163.99

$

In Stock, only 1 left!

0

20

BCS America 551.02678

O-RING

Note:

$1.49

$

In Stock, Qty 5

0

21

BCS America 561.47520

COVER, SIDE

Note:

$11.99

$

Usually ships in 5-8 days

0

22

BCS America 561.57606

PLATE

Note:

$42.99

$

Usually ships in 5-8 days

0

23

BCS America 561.57607

SPACER, CLUTCH STOP

Note:

$11.99

$

Usually ships in 5-8 days

0

24

$1.49

$

Usually ships in 5-8 days

0

25

BCS America 580.43117

GASKET

Note:

$2.99

$

In Stock, only 2 left!

0

26

BCS America 590.15425

CAP W/ MEASURING ROD

Note:

$

$

Not available

27

BCS America 590.56258

PULLEY ASSEMBLY

Note:

$62.99

$

Usually ships in 5-8 days

0
