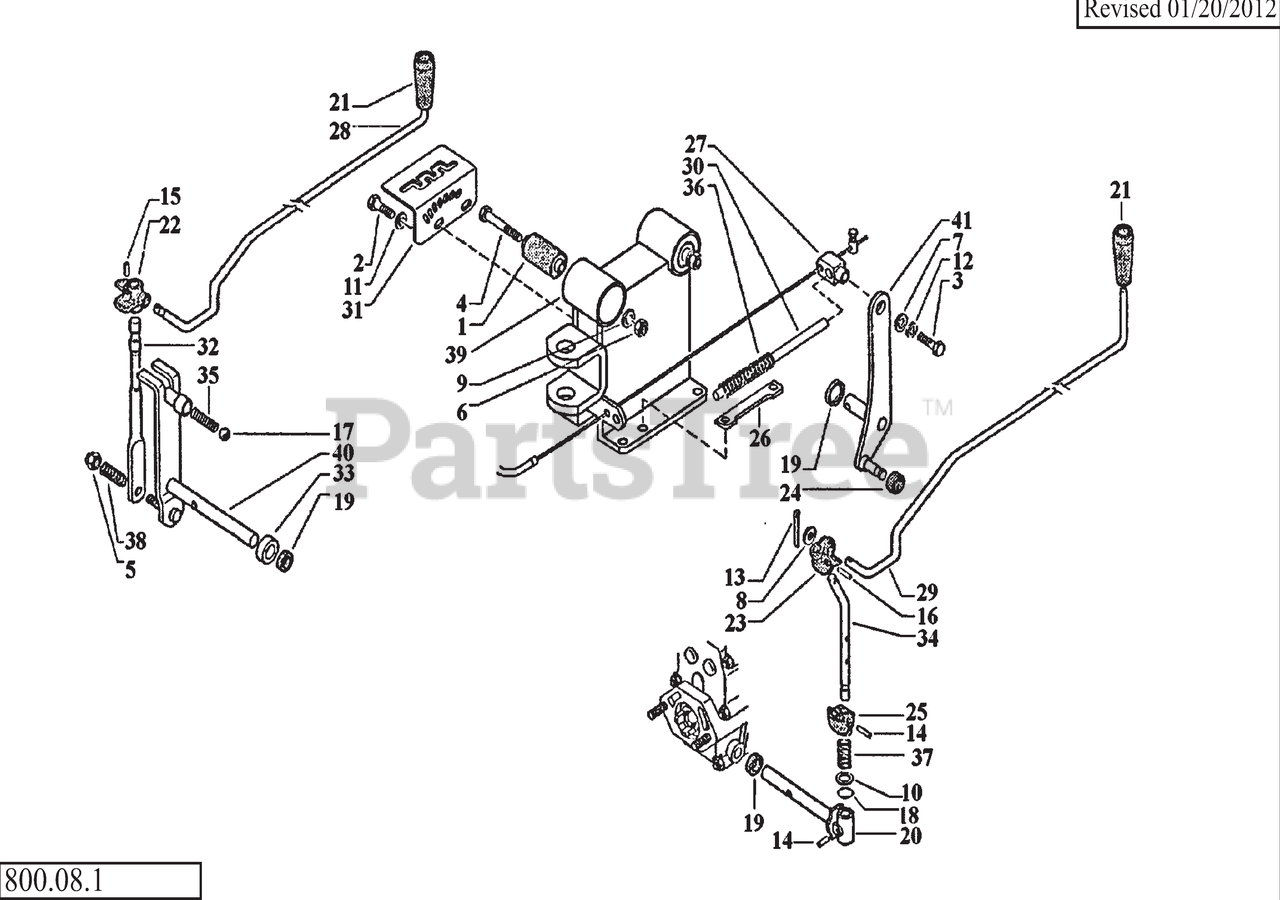

852 - BCS America Two-Wheeled Tractor Controls (SN: 000001 - 783461) Parts Diagram

Two-Wheeled Tractor

Controls (SN: 000001 - 783461) Parts Diagram

  • Title
1

BCS America 300.10120

SILENT BLOCK, 12X40X58X66-

Note:

$35.99

$

In Stock, only 1 left!

0

2

BCS America 311.12148

CAP SCREW, M8X14

Note:

$1.49

$

In Stock, Qty 10

0

3

BCS America 311.12149

CAP SCREW, M8X12

Note:

$1.49

$

Usually ships in 5-8 days

0

4

311.12701

CAP SCREW, M12X100

Note:

$

$

Not available

5

BCS America 312.41080

NUT, SELF LOCKING, M8

Note:

$0.99

$

In Stock, Qty 11

0

6

BCS America 312.41120

NUT, SELF LOCKING, M12

Note:

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 314.11084

WASHER, FLAT, M8.4

Note:

$0.99

$

In Stock, only 4 left!

0

8

BCS America 314.11104

WASHER, FLAT, M10.5

Note:

$0.99

$

In Stock, Qty 5

0

9

BCS America 314.11130

WASHER, FLAT, M13X25

Note:

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 314.14130

WASHER, FLAT, M13

Note:

$0.99

$

In Stock, Qty 5

0

11

BCS America 314.21083

WASHER, SUPER, M8

Note:

$1.49

$

In Stock, Qty 7

0

12

BCS America 314.23084

WASHER, LOCK, M8.4

Note:

$0.99

$

In Stock, Qty 10

0

13

BCS America 341.10028

PIN, COTTER, M2X15

Note:

$0.99

$

In Stock, only 2 left!

0

14

BCS America 342.13020

PIN, SPIROL, M4X20

Note:

$1.49

$

Usually ships in 5-8 days

0

15

BCS America 342.13022

PIN, SPIROL, M3X22

Note:

$1.49

$

In Stock, only 3 left!

0

16

BCS America 342.13024

PIN, SPIROL, M4X24

Note:

$1.49

$

Usually ships in 5-8 days

0

17

BCS America 379.11532

BALL, 15/32

Note:

$1.49

$

In Stock, only 2 left!

0

18

BCS America 381.11191

O-RING

Note:

$0.99

$

In Stock, only 1 left!

0

19

BCS America 382.11400

OIL SEAL, M14X22X4

Note:

$7.99

$

Usually ships in 5-8 days

0

20

BCS America 523.57250

SHAFT, PTO

Note:

$132.99

$

Usually ships in 5-8 days

0

21

$5.99

$

Usually ships in 5-8 days

0

22

BCS America 552.47645

JOINT

Note:

$30.99

$

In Stock, only 2 left!

0

23

BCS America 552.48379

ARTICULATION, PTO

Note:

$8.99

$

Usually ships in 5-8 days

0

24

BCS America 552.57313

PIN, PTO LOCKOUT

Note:

$6.49

$

Usually ships in 5-8 days

0

25

BCS America 552.57322

ARTICULATION, PTO

Note:

$13.99

$

Usually ships in 5-8 days

0

26

BCS America 561.47560

LEVER, REVERSE SPEED

Note:

$9.99

$

Usually ships in 5-8 days

0

27

BCS America 561.47574

BLOCK, REVERSER

Note:

$31.99

$

Usually ships in 5-8 days

0

28

BCS America 561.47646

CONTROL ROD, GEAR SELECT

Note:

$52.99

$

In Stock, only 1 left!

0

29

BCS America 561.47648

CONTROL ROD, PTO

Note:

$45.99

$

Usually ships in 5-8 days

0

30

BCS America 561.47672

PIN, GUIDE

Note:

$10.99

$

Usually ships in 5-8 days

0

31

BCS America 561.57239

GEAR QUADRANT

Note:

$33.99

$

Usually ships in 5-8 days

0

32

BCS America 561.57271

LEVER, GEAR

Note:

$36.99

$

Usually ships in 5-8 days

0

33

BCS America 561.57303

SPACER

Note:

$13.99

$

Usually ships in 5-8 days

0

34

BCS America 561.57324

SHIFT ARM, PTO

Note:

$48.99

$

In Stock, only 1 left!

0

35

BCS America 580.43176

SPRING

Note:

$2.49

$

In Stock, only 1 left!

0

36

BCS America 580.47671

SPRING, REVERSER

Note:

$16.99

$

Usually ships in 5-8 days

0

37

BCS America 580.49830

SPRING

Note:

$4.99

$

In Stock, only 1 left!

0

38

BCS America 580.57232

SPRING

Note:

$2.49

$

Usually ships in 5-8 days

0

39

590.57027

SUPPORT, STEERING COLUMN

Note:

$

$

Not available

40

BCS America 590.57300

LEVER, SPEED SELECTOR

Note:

$96.99

$

Usually ships in 5-8 days

0

41

BCS America 590.57315

LEVER, PTO LOCKOUT

Note:

$52.99

$

Usually ships in 5-8 days

0
