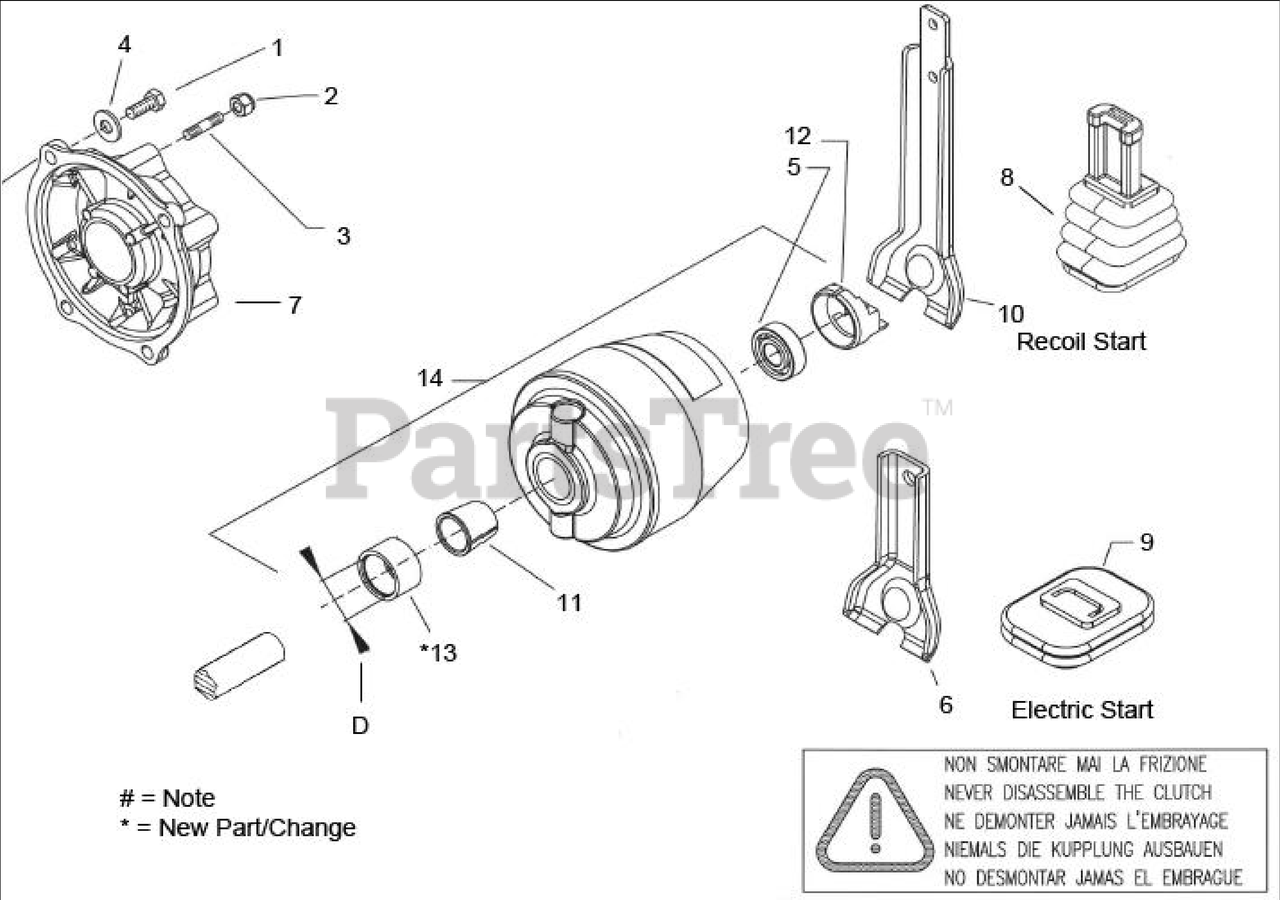

852 - BCS America Two-Wheeled Tractor Clutch (SN: 1032924 - 1042210) Parts Diagram

Two-Wheeled Tractor

Clutch (SN: 1032924 - 1042210) Parts Diagram

  • Title

1

BCS America 311.00015

CAPSCREW 3/8-16 X1

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 312.41083

LOCKNUT M8 SELF LOCKING

Note:

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 313.12083

STUD M8X40X14X14

Note:

$2.99

$

In Stock, Qty 6

0

4

BCS America 314.23105

WASHER LOCK M10.4

Note:

$1.49

$

In Stock, Qty 5

0

5

BCS America 371.12173

BEARING 17x40x12 6203 2RS/C3 SKF

Note:

$10.99

$

In Stock, only 3 left!

0

6

BCS America 509.56262

CLUTCH FORK (Electric Start)

Note:

$58.99

$

In Stock, only 1 left!

0

7

BCS America 531.56150

FLANGE, ENGINE

Note:

$199.99

$

Usually ships in 5-8 days

0

8

551.56481

BOOT/BELLOWS (Recoil Start)

Note:

$

$

Not available

9

BCS America 551.57609

BOOT/BELLOWS (Electric Start)

Note:

$32.99

$

In Stock, only 1 left!

0

10

BCS America 561.47845

CLUTCH FORK ( Recoil Start)

Note:

$31.99

$

In Stock, only 1 left!

0

11

BCS America 561.56281

TAPERED BUSHING D=25.4mm

Note:

$41.99

$

Usually ships in 5-8 days

0

12

524.C1014

PUSHER CONE

Note:

$

$

Not available

13

BCS America 561.56285

SPACER 18mm D=25.4mm

Note:

$23.99

$

Usually ships in 5-8 days

0

14

592.C1012

CLUTCH (Includes #13,11,5 &12 )

Note:

$

$

Not available
