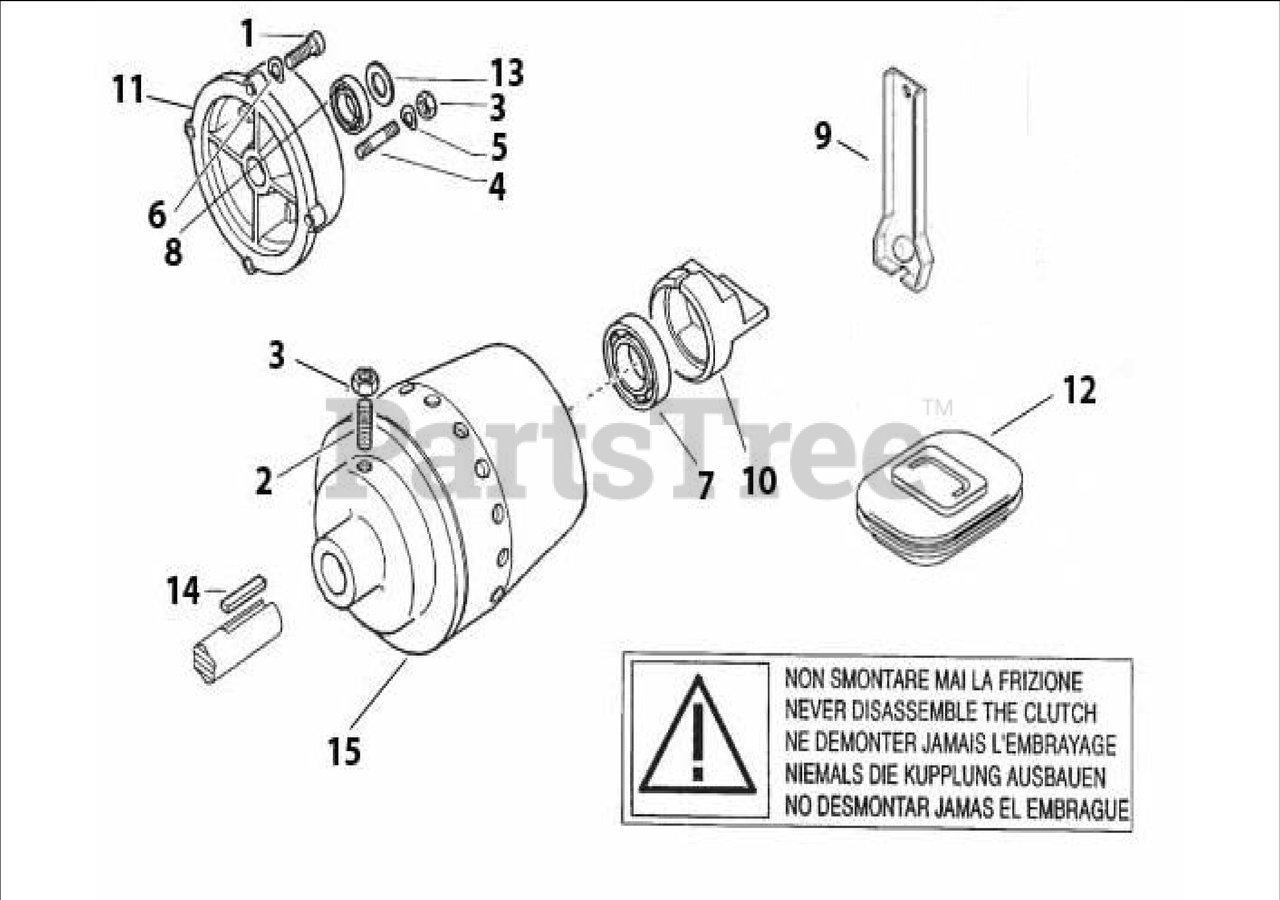

852 - BCS America Two-Wheeled Tractor Clutch (SN: 000001 - 779510) Parts Diagram

Two-Wheeled Tractor

Clutch (SN: 000001 - 779510) Parts Diagram

  • Title

1

BCS America 311.00015

CAPSCREW, 3/8

Note:

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.00786

CAPSCREW, M8X30

Note:

$1.49

$

In Stock, Qty 5

0

3

BCS America 312.11080

NUT, M8

Note:

$0.99

$

In Stock, only 3 left!

0

4

BCS America 313.12088

STUD, M8X40X14X4

Note:

$8.49

$

In Stock, only 2 left!

0

5

BCS America 314.23084

WASHER, LOCK, M8.4

Note:

$0.99

$

In Stock, Qty 10

0

6

BCS America 314.23105

WASHER, WAVEY M10.4

Note:

$1.49

$

In Stock, Qty 5

0

7

BCS America 371.12173

BEARING 6203 2RS 17X40X12

Note:

$10.99

$

In Stock, only 3 left!

0

8

BCS America 371.12233

BEARING 6006 2RS 30X55X13

Note:

$24.99

$

Usually ships in 5-8 days

0

9

BCS America 509.56262

CLUTCH LEVER

Note:

$58.99

$

In Stock, only 1 left!

0

10

BCS America 524.47896

CONE PUSHER

Note:

$

$

Not available

11

BCS America 531.56150

FLANGE, ENGINE

Note:

$199.99

$

Usually ships in 5-8 days

0

12

BCS America 551.57609

BOOT/BELLOWS

Note:

$32.99

$

Usually ships in 5-8 days

0

13

BCS America 563.47484

WASHER

Note:

$2.99

$

In Stock, only 1 left!

0

14

BCS America 563.49782

KEY

Note:

$10.99

$

Usually ships in 5-8 days

0

15

BCS America 592.56257

CONE CLUTCH (INCLUDES # 2,3,7,10 & 15)

Note:

$

$

Not available
