852 - BCS America Two-Wheeled Tractor Bumper Accessories (SN: 981378 & Above) Parts Diagram

Two-Wheeled Tractor

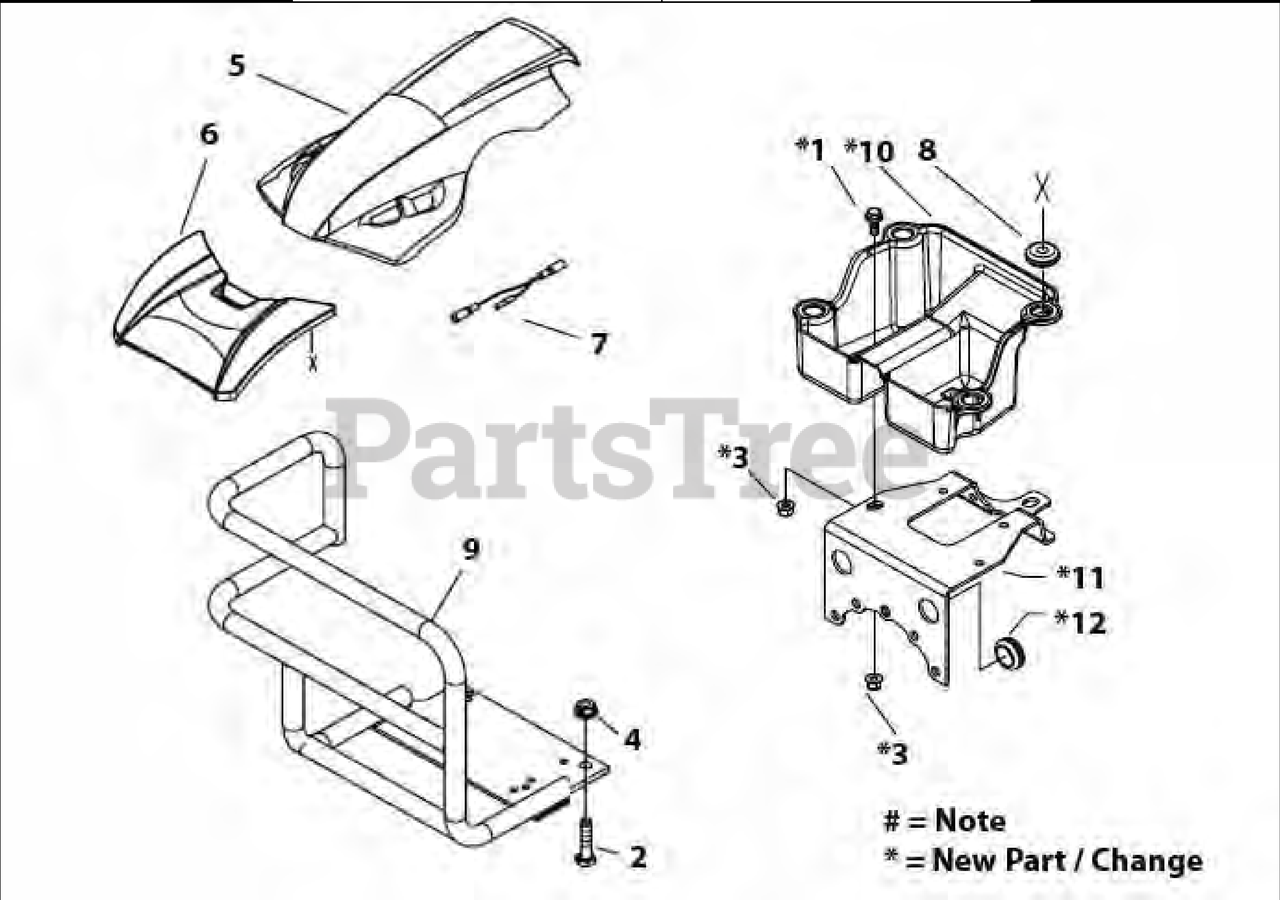

Bumper Accessories (SN: 981378 & Above) Parts Diagram

  • Title

1

311.12081

SCREW TE C/F M6X20 DIN 6921-8G

Note:

$

$

Not available

2

BCS America 311.12154

CAPSCREW M8X40 UNI5739-8G

Note:

$1.99

$

In Stock, only 4 left!

0

3

312.41066

LOCKNUT M6 FLANGED

Note:

$

$

Not available

4

BCS America 312.41084

LOCKNUT M8 FLANGED

Note:

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 552.57623

STEERING COLUMN COVER

Note:

$150.99

$

In Stock, only 1 left!

0

6

BCS America 552.57621

LOWER COVER (RECOIL START ONLY)

Note:

$73.99

$

Usually ships in 5-8 days

0

7

BCS America 580.57385

OPC WIRE

Note:

$13.99

$

Usually ships in 5-8 days

0

8

BCS America 580.56991

SUPPORT BODY CAP / GROMMET

Note:

$4.99

$

In Stock, only 3 left!

0

9

BCS America 590.56113

BUMPER GX340 – GX390

Note:

$390.99

$

Usually ships in 5-8 days

0

10

552.C1001

TRAY

Note:

$

$

Not available

11

561.C1003

SUPPORT BRACKET

Note:

$

$

Not available

12

581.C1004

CABLE GLAND/ GROMMET

Note:

$

$

Not available
