852 (590-852-150) - Cub Cadet Triple Rear Bagger Kit att3 General Assembly Parts Diagram

Triple Rear Bagger Kit

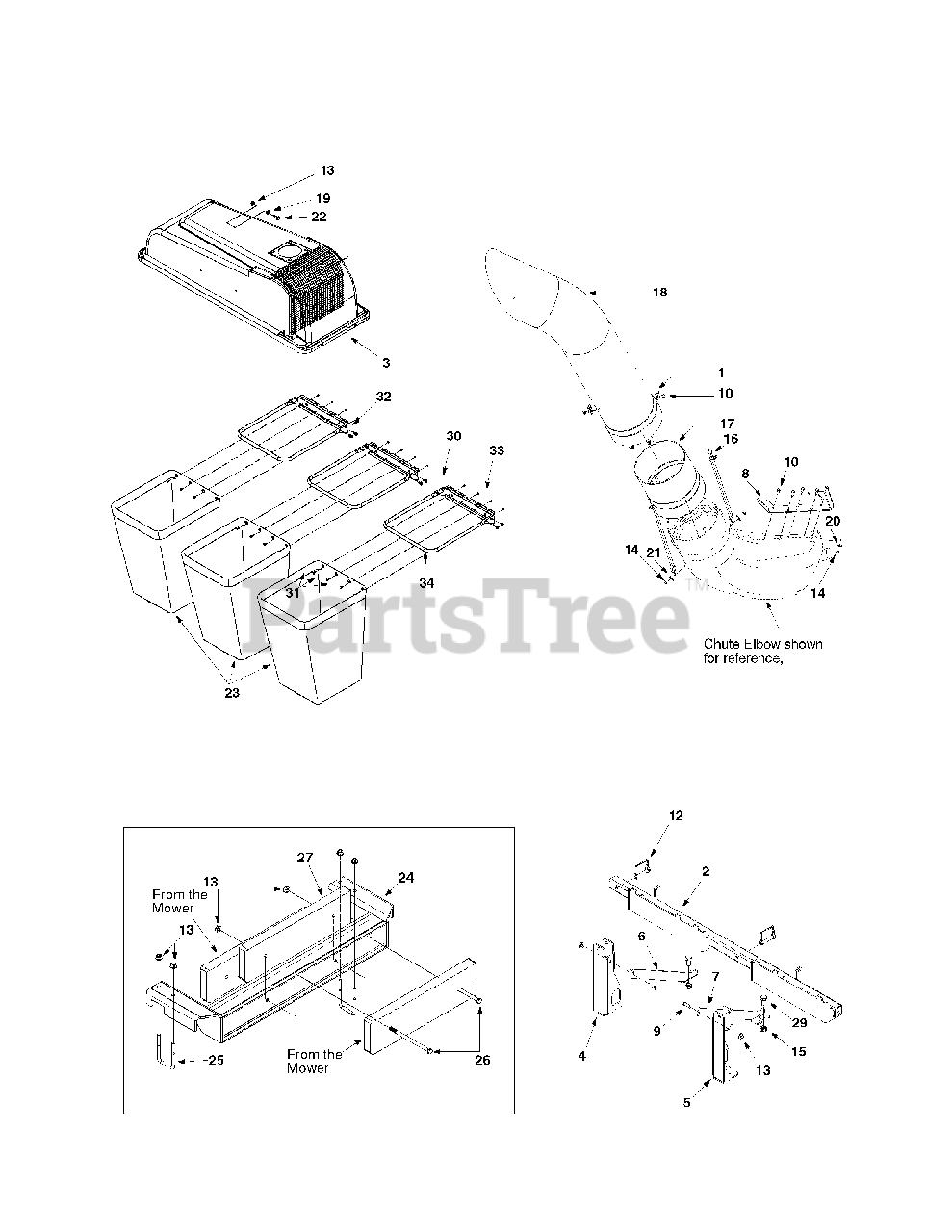

General Assembly Parts Diagram

  • Title

1

Cub Cadet 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 603-04098

Catcher Support Bracket
(Superseded to 603-04098-0637)

Variations

Cub Cadet 603-04098-0637

FRAME ASSY-BAG MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 664-04018

Catcher Cover

$

$

Not available

4

Cub Cadet 703-05237

Upright Mounting Bracket LH
(Superseded to 703-05237-0637)

Variations

Cub Cadet 703-05237-0637

BRACKET-UPRIGHT MOUNTING LH - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

$73.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-05239

Upright Mounting Bracket RH
(Superseded to 703-05239-0637)

Variations

Cub Cadet 703-05239-0637

BRACKET-UPRIGHT MOUNTING RH - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 703-05240

Upright Gusset LH
(Superseded to 703-05240-0637)

Variations

Cub Cadet 703-05240-0637

GUSSET-UPRIGHT LH - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-05241

Upright Gusset RH
(Superseded to 703-05241-0637)

Variations

Cub Cadet 703-05241-0637

GUSSET-UPRIGHT RH - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-05245A

Boot Mount
(Superseded to 703-05245A-0637)

Variations

Cub Cadet 703-05245A-0637

Chute Mounting Plate - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

$64.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0751

Hex Bolt 1/4-20 x 0.620"

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3034

Carriage Bolt 3/8-16 x 1.25"

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 711-04160

Lock Pin
(Superseded to 911-04160)

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0431

Top Lock Flange Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3027

Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3083

Lock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 723-0476

Chute Strap

$33.99

$

In Stock, only 1 left!

0

17

Cub Cadet 731-04423

Extension Tube

$

$

Not available

18

Cub Cadet 731-0926B

Chute Tube

$142.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0253

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3092

Flat Washer

$3.99

$

In Stock, Qty 9

0

22

Cub Cadet 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

23

Cub Cadet 764-0251

Triple Grasscatcher bag
(Superseded to 964-0251)

$87.99

$

In Stock, Qty 15

0

24

Cub Cadet 603-04307

Weight Bar Bracket
(Superseded to 903-04307-0637)

Variations

Cub Cadet 603-04307-0637

USE 903-04307-0637 BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

25

Cub Cadet 710-04170

U Bolt 3/8-16 x 1.5"

$22.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 710-3086

Hex Bolt 3/8-16 x 6.25"

$

$

Not available

27

Cub Cadet 01003789

Weight Bar
(Superseded to 02002426)

$168.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-3097

Carriage Bolt 3/8-16

$6.99

$

In Stock, Qty 5

0

29

Cub Cadet 710-3131

Hex Screw 1/2-13

$5.49

$

In Stock, only 1 left!

0

30

Cub Cadet 17201A

Bag Frame Hangar Bracket
(Superseded to 17201A-0637)

Variations

Cub Cadet 17201A-0637

Bag Hanger Bracket, Black - POWDER BLACK (0637)

$71.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0473

Machine Screw #10-24 x .50

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 710-0604A

Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 712-0272

Hex Nut 10-24

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet 749-0745A

Grass Bag Frame
(Superseded to 749-0745A-0637)

Variations

Cub Cadet 749-0745A-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$

$

Not available

$

$
