851302 - Ariens 36" Snow Blower for Mammoth 850 (SN: 000101 & Above) Motor Assembly Parts Diagram

36" Snow Blower for Mammoth 850

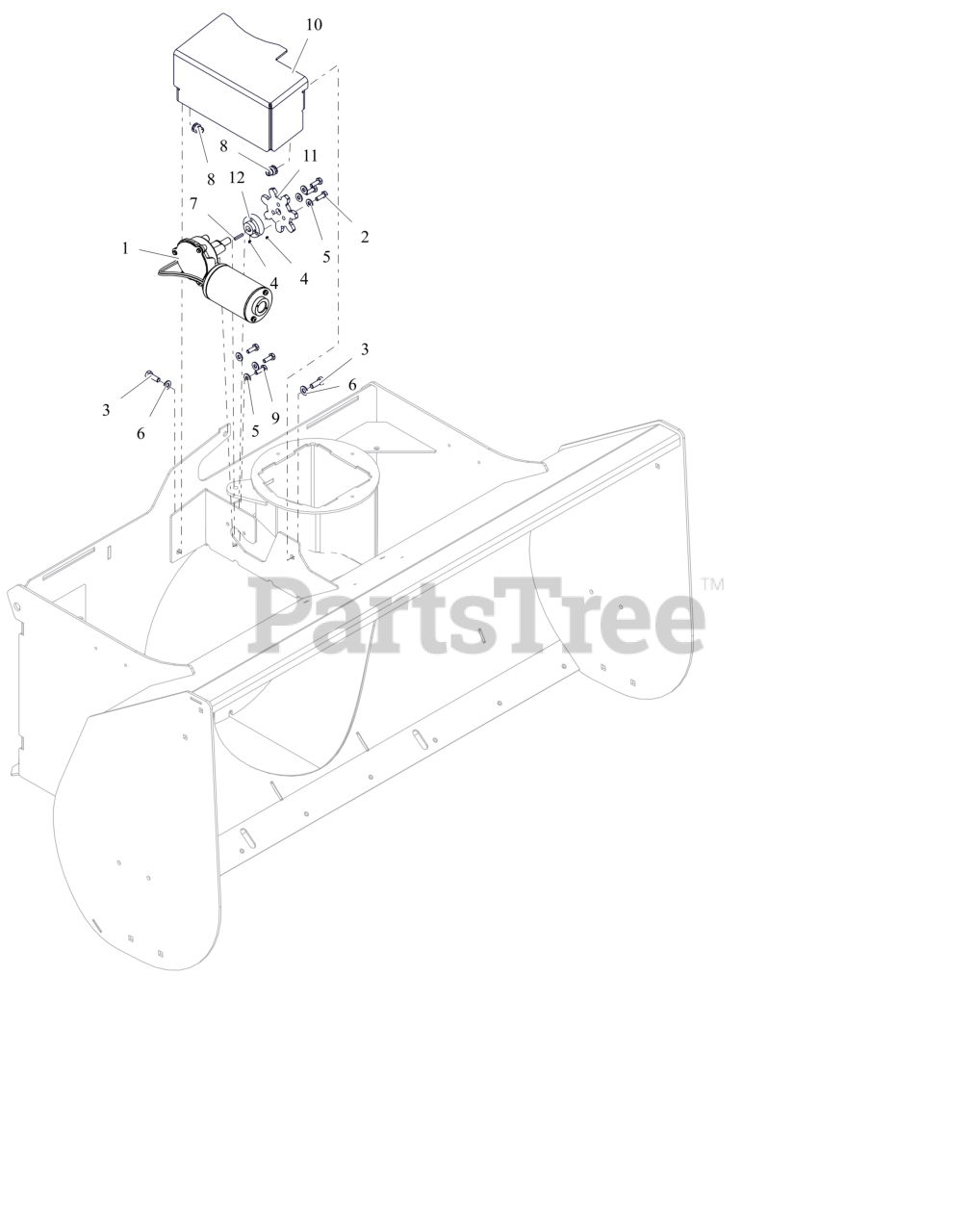

Motor Assembly Parts Diagram

  • Title

1

Ariens 09455500

MOTOR, GEAR - CHUTE ROTATION

$646.99

$

Usually ships in 4-12 days

0

2

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05901801

BLT, HEX .31-18X.875 G5 ZCC

$2.49

$

In Stock, only 2 left!

0

4

Ariens 06000225

SET, SCR 10-24 X .188 W/ PATCH

$3.49

$

Usually ships in 4-12 days

0

5

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06401017

WSHR,FLT .344X.688X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06600231

KEY, .125 SQ. X .8125

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 06800210

RVT, HEX 5/16-18 SHORT

$

$

Not available

9

Ariens 07001934

BOLT, HEX 0.250-28X0.75 GR5

$

$

Currently unavailable

10

Ariens 09452800

BRKT, MOTOR COVER

$

$

Currently unavailable

11

Ariens 09453000

GEAR, CHUTE DRIVE

$

$

Not available

12

Ariens 09455100

ADAPTOR, MOTOR SHAFT

$

$

Not available
