85104 - Toro Drag Stick (1989) ENGINE -KAWASAKI FA130 Parts Diagram

Drag Stick

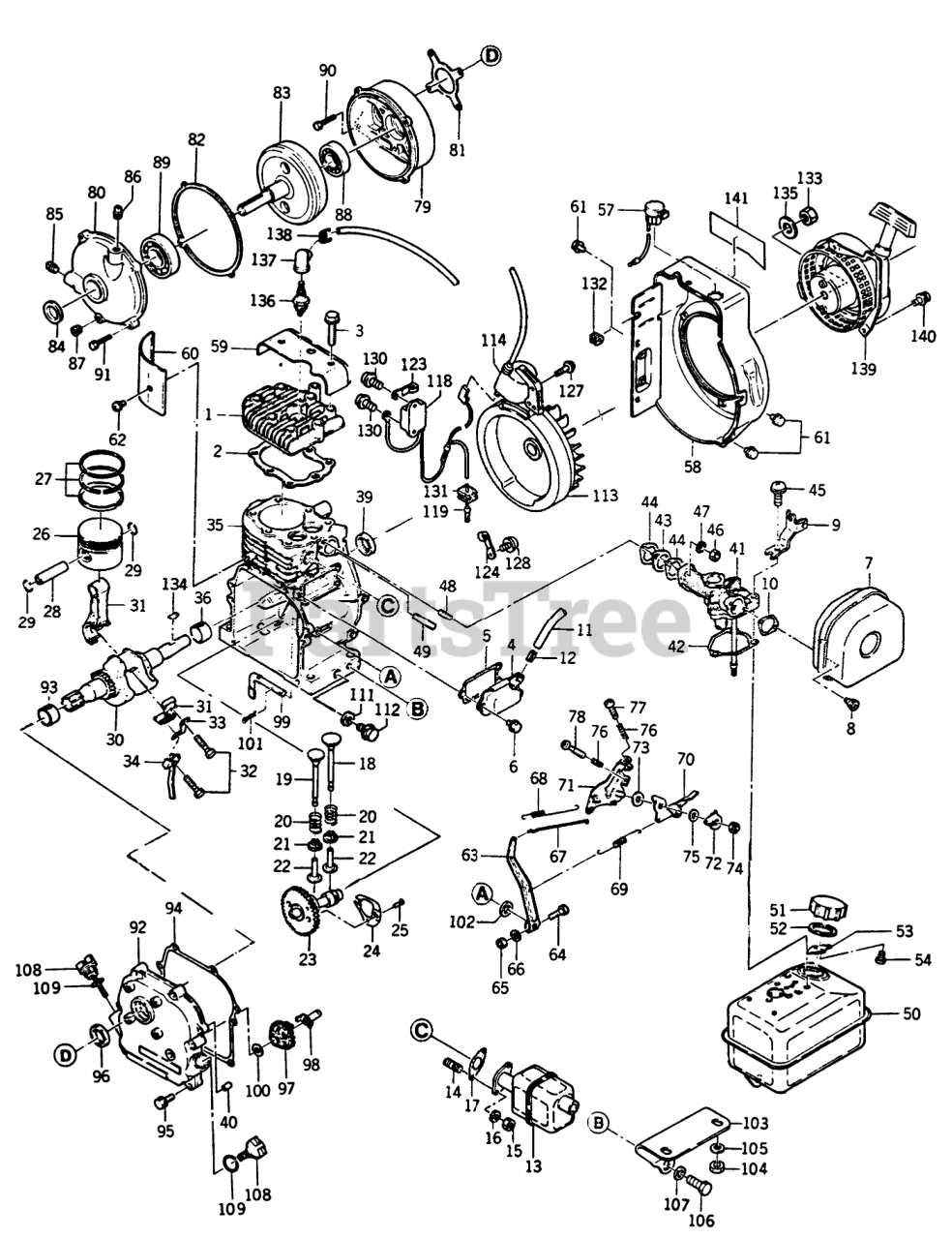

ENGINE -KAWASAKI FA130 Parts Diagram

  • Title

1

Toro KW10363

CYLINDER HEAD

$

$

Not available

2

Toro KW10364

GASKET

$

$

Not available

3

Toro KW10327

BOLT (8X50)

$

$

Not available

4

Toro KW10457

VALVE CHAMBER COVER

$

$

Not available

5

Toro KW10365

GASKET

$

$

Not available

6

Toro KW10334

BOLT (6X12)

$

$

Not available

7

Toro KW10319

Air Cleaner Complete (see SECTION 1-3 for complete parts breakdown)

$

$

Currently unavailable

8

Toro KW10425

BOLT

$

$

Not available

9

Toro KW10419

AIR CLEANER STAY

$

$

Not available

10

Toro KW10366

GASKET

$

$

Not available

11

Toro KW10470

RUBBER TUBE

$

$

Not available

12

Toro KW10367

PIPE

$

$

Not available

13

Toro KW10418

MUFFLER

$

$

Not available

14

Toro KW10328

Stud
(Superseded to 93-8653)

$

$

Not available

15

Toro KW10101

NUT 6MM

$

$

Not available

16

Toro KW10137

WASHER-PLAIN 6MM

$

$

Not available

17

Toro KW10432

GASKET

$

$

Not available

18

Toro KW10358

INTAKE VALVE

$

$

Not available

19

Toro KW10370

EXHAUST VALVE

$

$

Not available

20

Toro KW10371

VALVE SPRING

$

$

Not available

21

Toro KW10372

SPRING SEAT

$

$

Not available

22

Toro KW10321

TAPPET

$

$

Not available

23

Toro KW10458

Cam Shaft Complete (includes items 24 & 25)

$

$

Not available

24

Toro KW10338

DECOMPRESSOR

$

$

Not available

25

Toro KW10473

PIN

$

$

Not available

26

Toro KW10374

PISTON (STD)

$

$

Not available

26

Toro KW10361

PISTON 0.25MM O/S

$

$

Not available

26

Toro KW10362

PISTON 0.50MM O/S

$

$

Not available

27

Toro KW10373

RING SET (STD)

$

$

Not available

27

Toro KW10359

RING SET 0.25MM O/S

$

$

Not available

27

Toro KW10360

RING SET 0.50MM 0/S

$

$

Not available

28

Toro KW10322

PISTON PIN

$

$

Not available

29

Toro KW10375

SNAP RING

$

$

Not available

30

Toro KW10429

CRANK SHAFT

$

$

Not available

31

Toro KW10376

Connecting Rod (includes item 32)

$

$

Not available

32

Toro KW10377

CONNECTING ROD BOLT

$

$

Not available

33

Toro KW10378

LOCKWASHER

$

$

Not available

34

Toro KW10379

SPLASHER ARM

$

$

Not available

35

Toro KW10459

Crank Case (includes item 36)

$

$

Not available

36

Toro KW10486

GASKET

$

$

Not available

39

Toro KW10357

Oil Seal

$

$

Currently unavailable

40

Toro KW10463

Dowel Pin
(Superseded to 93-8516)

$1.49

$

Usually ships in 3-6 days

0

41

Toro KW10430

CARBURETOR ASS'Y

$

$

Not available

42

Toro KW10401

GASKET

$

$

Not available

43

Toro KW10424

INSULATOR

$

$

Not available

44

Toro KW10407

GASKET

$

$

Not available

45

Toro KW10345

SCREW (6X25)

$

$

Not available

46

Toro KW10101

NUT 6MM

$

$

Not available

47

Toro KW10137

WASHER-PLAIN 6MM

$

$

Not available

48

Toro KW10329

STUD

$

$

Not available

49

Toro KW10330

STUD

$

$

Not available

50

Toro KW10460

Fuel Tank Assy (includes items 51, 52, 53 & 54)

$

$

Not available

51

Toro KW10461

Tank Cap Assy (includes items 52, 53 & 54)

$

$

Not available

52

Toro KW10408

GASKET

$

$

Not available

53

Toro KW10409

SPRING

$

$

Not available

54

Toro KW10411

SCREW

$

$

Not available

57

Toro KW10416

STOP SWITCH

$

$

Not available

58

Toro KW10464

FAN HOUSING

$

$

Not available

59

Toro KW10420

CYLINDER HEAD COVER

$

$

Not available

60

Toro KW10368

CYLINDER COVER

$

$

Not available

61

Toro KW10333

BOLT (6X10)

$

$

Not available

62

Toro KW10348

SCREW (5X10)

$

$

Not available

63

Toro KW10391

GOVERNOR ARM ASS'Y

$

$

Not available

64

Toro KW10462

BOLT

$

$

Not available

65

Toro KW10101

NUT 6MM

$

$

Not available

66

Toro KW10139

Washer
(Superseded to 93-8645)

$

$

Not available

67

Toro KW10422

GOVERNOR LINK

$

$

Not available

68

Toro KW10356

Link Spring
(Superseded to KW10734)

$

$

Not available

69

Toro KW10476

SPRING

$

$

Not available

70

Toro KW10392

CONTROL LEVER

$

$

Not available

71

Toro KW10427

BRACKET

$

$

Not available

72

Toro KW10428

BRACKET

$

$

Not available

73

Toro KW10394

WASHER

$

$

Not available

74

Toro KW10395

NUT

$

$

Not available

75

Toro KW10396

SPRING

$

$

Not available

76

Toro KW10113

SPRING

$

$

Not available

77

Toro KW10342

SCREW (4X20)

$

$

Not available

78

Toro KW10343

SCREW (4X25)

$

$

Not available

79

Toro KW10443

CASE

$

$

Not available

80

Toro KW10444

CASE

$

$

Not available

81

Toro KW10445

GASKET

$

$

Not available

82

Toro KW10446

GASKET

$

$

Not available

83

Toro KW10447

SHAFT

$

$

Not available

84

Toro KW10449

OIL SEAL

$

$

Not available

85

Toro KW10412

PLUG

$

$

Not available

86

Toro KW10448

PLUG

$

$

Not available

87

Toro KW10437

PLUG

$

$

Not available

88

Toro KW10467

Ball Bearing

$

$

Not available

89

Toro KW10468

BALL BEARING

$

$

Not available

90

Toro KW10331

BOLT (8X30)

$

$

Not available

91

Toro KW10335

BOLT (6X25)

$

$

Not available

92

Toro KW10433

SIDE BASE

$

$

Not available

93

Toro KW10386

PLAIN BEARING

$

$

Not available

94

Toro KW10385

GASKET

$

$

Not available

95

Toro KW10336

BOLT (6X28)

$

$

Not available

96

Toro KW10357

Oil Seal

$

$

Currently unavailable

97

Toro KW10387

GOVERNOR ASS'Y

$

$

Not available

98

Toro KW10388

GOVERNOR SLEEVE

$

$

Not available

99

Toro KW10389

GOVERNOR TIP

$

$

Not available

100

Toro KW10122

BOLT

$

$

Not available

101

Toro KW10167

Pin
(Superseded to 93-8607)

$

$

Not available

102

Toro KW10139

Washer
(Superseded to 93-8645)

$

$

Not available

103

Toro KW10452

TANK BRACKET

$

$

Not available

104

Toro KW10352

NUT

$

$

Not available

105

Toro KW10454

WASHER

$

$

Not available

106

Toro KW10320

BOLT (8X16)

$

$

Not available

107

Toro KW10410

WASHER

$

$

Not available

108

Toro KW10325

OIL GAUGE

$

$

Not available

109

Toro KW10469

O-Ring

$

$

Not available

111

Toro KW10318

GASKET

$

$

Not available

112

Toro KW10323

BOLT (10X14)

$

$

Not available

113

Toro KW10434

FLYWHEEL

$

$

Not available

114

Toro KW10339

IGNITION COIL

$

$

Not available

118

Toro KW10435

IGNITER

$

$

Not available

119

Toro KW10436

LEAD WIRE

$

$

Not available

123

Toro KW10472

CLAMP

$

$

Not available

124

Toro KW10351

CLAMP

$

$

Not available

127

Toro KW10324

BOLT (5X20)

$

$

Not available

128

Toro KW10347

SCREW (4X8)

$

$

Not available

130

Toro KW10346

SCREW (5X14)

$

$

Not available

131

Toro KW10413

GROMMET

$

$

Not available

132

Toro KW10474

GROMMET

$

$

Not available

133

Toro KW10438

Nut 14mm
(Superseded to 93-8568)

$

$

Not available

134

Toro KW10355

Key

$

$

Currently unavailable

135

Toro KW10384

WASHER

$

$

Not available

136

Toro KW10414

OBS SPARK PLUG
(Superseded to 45-0320)

$3.49

$

Usually ships in 3-6 days

0

137

Toro KW10450

Plug Cap
(Superseded to KW10087)

$49.99

$

Usually ships in 3-6 days

0

138

Toro KW10451

SPRING

$

$

Not available

139

Toro KW10456

Recoil Starter Assy (see SECTION 1-4 for complete parts breakdown)

$

$

Not available

140

Toro KW10337

BOLT (6X10)

$

$

Not available

141

Toro KW10714

DECAL

$

$

Not available
