851004 - Ariens 44" Brush for Mammoth 850 (SN: 000101 & Above) Brush Frame and Wheels Parts Diagram

44" Brush for Mammoth 850

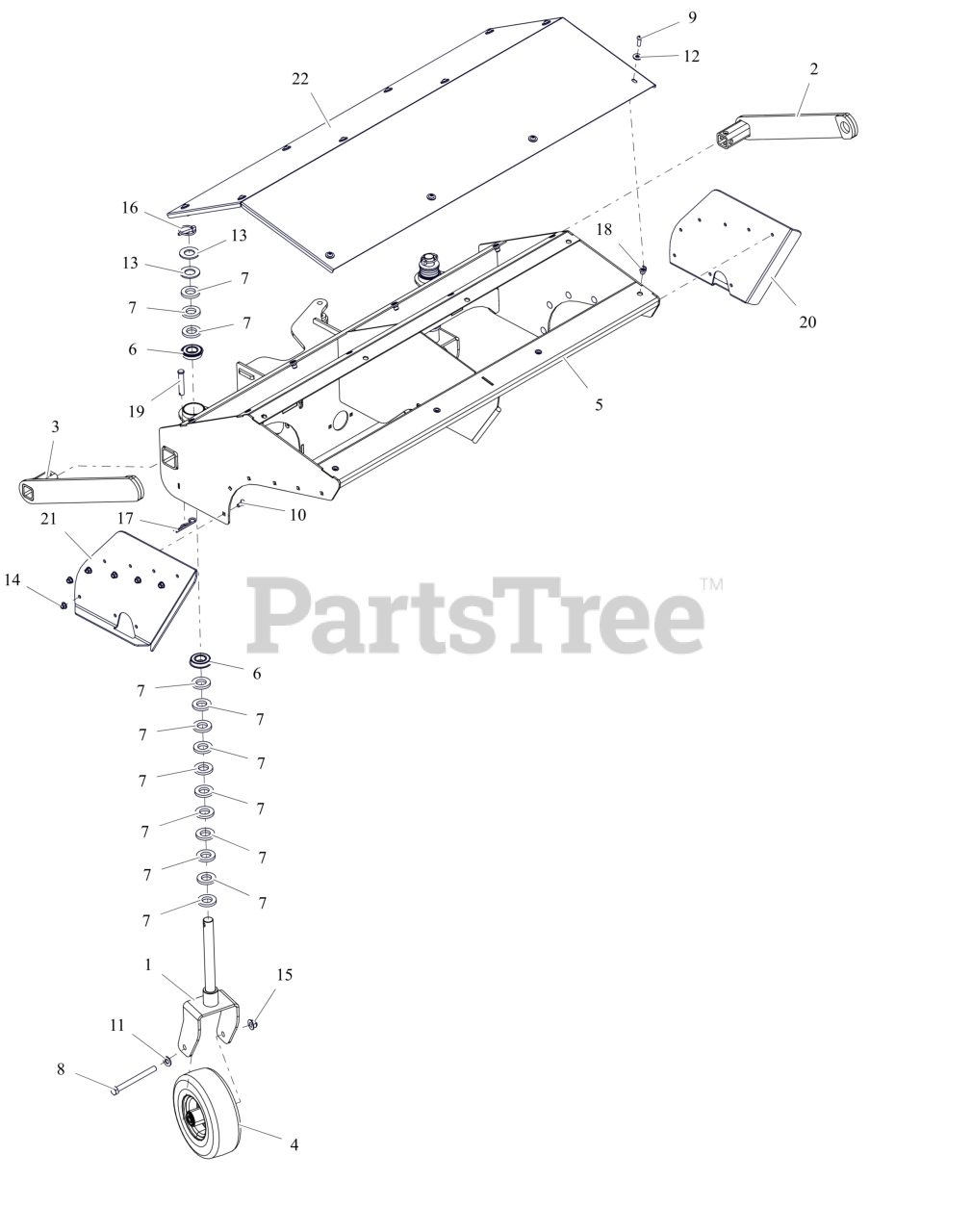

Brush Frame and Wheels Parts Diagram

  • Title

1

Ariens 09398800

WLDMT, BRUSH CASTER

$193.99

$

Usually ships in 4-12 days

0

2

Ariens 09399100

WLDMT, BRUSH STAND, LH

$155.99

$

Usually ships in 4-12 days

0

3

Ariens 09399200

WLDMT, BRUSH STAND, RH

$155.99

$

Usually ships in 4-12 days

0

4

Ariens 09451300

WHEEL, CASTER

$168.99

$

Usually ships in 4-12 days

0

5

Ariens 55102200

WLDMT, BRUSH FRAME W/ZERKS

$

$

Currently unavailable

6

Ariens 05400728

BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING

$12.99

$

In Stock, Qty 6

0

7

Ariens 05501440

SPCR, 1.875 X 1.031 X .25

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 05901632

BLT,HEX .50-13X5.50 G5 ZCC

$6.99

$

Usually ships in 4-12 days

0

9

Ariens 05901840

BLT,SHCS-BTN .31-18X1.00 ZCC

$2.49

$

In Stock, Qty 20+

0

10

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06401023

WSHR,FLT .375X.875X.083 ZCC

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06401203

WSHR, FLT 1.062X2.000X.134 ZCC

$3.99

$

In Stock, only 1 left!

0

14

Ariens 06500809

NUT,LK-NYL-FLG .31-18 G5ZC120

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06500810

NUT,NYL-FLG .50-13 GF ZCC

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06700226

PIN, LYNCH .25X1.562 ZCC

$3.99

$

In Stock, only 2 left!

0

17

Ariens 06700230

PIN, HAIR .148"x3-0"LG

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 06800210

RVT, HEX 5/16-18 SHORT

$3.49

$

Usually ships in 0 days

0

19

Ariens 06800213

PIN, CLEVIS .50 X 2.375

$9.49

$

Usually ships in 4-12 days

0

20

Ariens 09453300

PLATE, BRG MOUNT LH

$135.99

$

Usually ships in 4-12 days

0

21

Ariens 09453400

PLATE, BRG MOUNT RH

$135.99

$

Usually ships in 4-12 days

0

22

Ariens 55102000

COVER, TOP - W/DECAL

$581.99

$

Usually ships in 0 days

0
