8510 - Poulan Chainsaw CRANKCASE, FLYWHEEL, PISTON Parts Diagram

Chainsaw

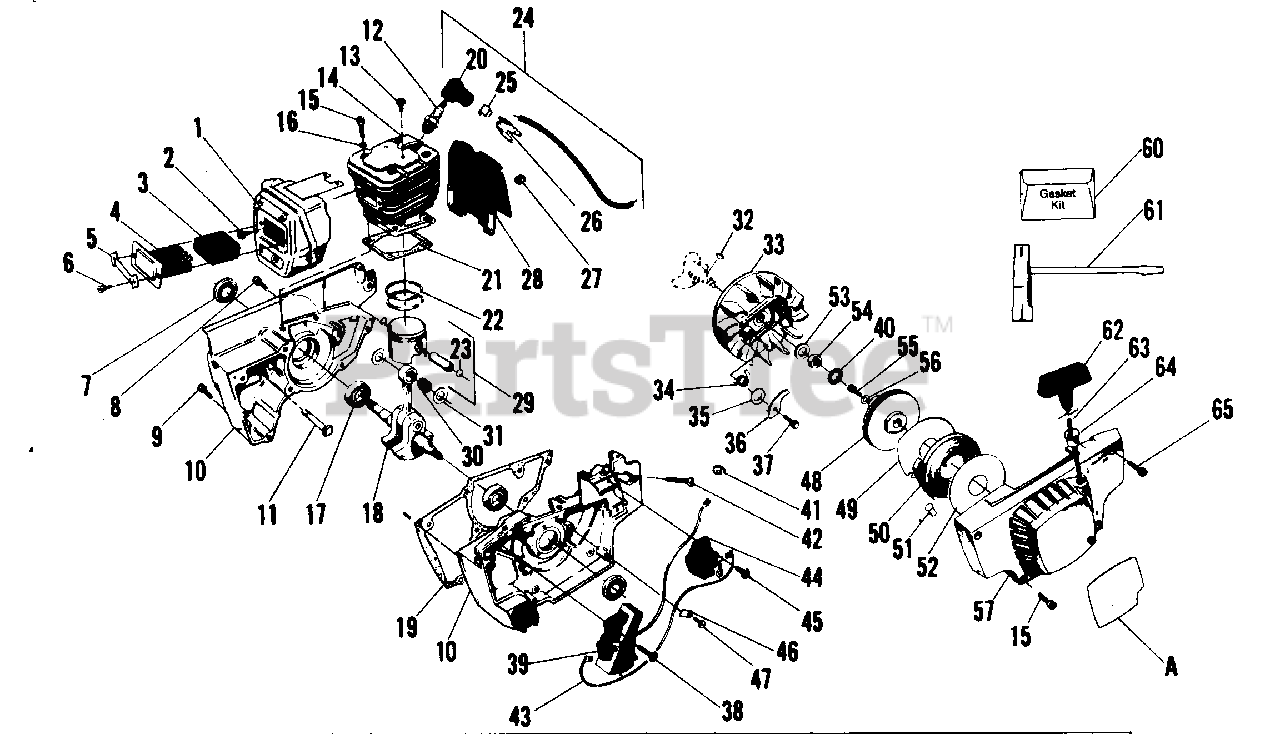

CRANKCASE, FLYWHEEL, PISTON Parts Diagram

  • Title

1

Poulan 530022274

Body Muffler

$

$

Not available

2

Poulan 530015298

Screw - Muffler (12 - 24 x 5/8)

$2.49

$

Usually ships in 3-10 days

0

3

Poulan 530023674

Screen Spark Arrestor

$18.99

$

Usually ships in 3-10 days

0

4

Poulan 530022131

Diffuser - Muffler

$18.99

$

Usually ships in 3-10 days

0

5

Poulan 530024839

Retainer - Diffuser Mounting Screw

$

$

Not available

6

Poulan 530015433

Screw - 10 - 32 x 1/2

$

$

Not available

7

Poulan 530019075

Seal - Crankshaft

$9.49

$

Usually ships in 3-10 days

0

8

Poulan 530015203

Screw - Crankcase (#10 - 24 x 3/4 Socket Head)

$2.49

$

Usually ships in 3-10 days

0

9

Poulan 530015258

Screw - 8 x 1/2 Socket Head

$1.49

$

Usually ships in 3-10 days

0

10

Poulan 530010833

Crankcase Ass'y. (Incl. 10 & 11)

$

$

Not available

11

Poulan 530015535

Stud - Bar Mounting

$

$

Not available

12

Poulan 530030034

Spark Plug (CJ - 4)

$

$

Not available

13

Poulan 530015306

Screw - Muffler Body Bracket Hex Hd. 10 - 24 x 7/16

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530012092

Cylinder

$

$

Not available

15

Poulan 530001711

Screw - 1/4 - 20 x 1 Socket Hd.

$1.99

$

In Stock, only 1 left!

0

16

Poulan 530001677

Lockwasher - Cylinder

$

$

Not available

17

Poulan 530032034

Bearing - Crankshaft

$

$

Not available

18

Poulan 530026250

Crankshaft & Connecting Rod

$

$

Not available

19

Poulan 530019085

Gasket Crankcase

$

$

Not available

20

Poulan 530039097

Boot - Spark Plug

$

$

Not available

21

Poulan 530019081

Gasket - Cylinder

$

$

Not available

22

Poulan 530024058

Piston Rings

$

$

Not available

23

Poulan 530015207

Retainer - Piston Pin

$

$

Not available

24

Poulan 530039065

High Tension Lead Ass'y. (Incl. 20 & 25)

$

$

Not available

25

Poulan 530003933

Connector - Spark Plug
(Superseded to 507475326)

$

$

Not available

26

Poulan 530015195

Clip - High Tension Lead

$2.49

$

Usually ships in 3-10 days

0

27

Poulan 530023816

Grommet - High Tension Lead

$

$

Not available

28

Poulan 530022128

Air Baffle Ass'y.

$

$

Not available

29

Poulan 530010531

Piston Ass'y.

$

$

Not available

30

Poulan 530032031

Bearing - Piston Rod

$

$

Not available

31

Poulan 530015208

Washer - Thrust

$

$

Not available

32

Poulan 530002595

Key - Flywheel

$5.99

$

In Stock, Qty 7

0

33

Poulan 530039066

Flywheel

$

$

Not available

34

Poulan 530042062

Spring - Starter Dog

$

$

Not available

35

Poulan 530001718

Washer - Starter Dog

$

$

Not available

36

Poulan 530042064

Dog - Starter

$

$

Not available

37

Poulan 530004261

Stud - Starter Dog

$

$

Not available

38

Poulan 530015198

Screw - 10 - 24 x 7/8

$

$

Not available

39

Poulan 530039108

Module - Ignition (Incl. 41 & 43)

$

$

Not available

40

Poulan 530026727

Seal - Foam - Starter Pulley

$

$

Not available

41

Poulan 530039069

Grommet - Lead Wire

$

$

Not available

42

Poulan 530015586

Screw - Idle Speed

$

$

Not available

43

Poulan 530039064

Lead Wire - Module to Transformer

$

$

Not available

44

Poulan 530039068

Transformer Ass'y. (Incl. 24)

$

$

Not available

45

Poulan 530015038

Screw - 10 - 24 x 3/4 Hex Washer Hd.

$

$

Not available

46

Poulan 530023661

Clamp - Lead Wire

$2.49

$

Usually ships in 3-10 days

0

47

Poulan 530001726

Screw - 8 - 32 x 5/16 Tapping

$

$

Not available

48

Poulan 530011255

Pulley - Starter

$

$

Not available

49

Poulan 530042041

Disc. - Starter (Over Spring)

$

$

Not available

50

Poulan 530042049

Spring - Starter Rewind

$

$

Not available

51

Poulan 530015323

Pin - Spring Anchor

$

$

Not available

52

Poulan 530042039

Disc. - Starter (Under Spring)

$

$

Not available

53

Poulan 530001626

Washer - 3/8

$

$

Not available

54

Poulan 530001722

Locknut - Flywheel - 3/4 - 24

$4.99

$

In Stock, only 4 left!

0

55

Poulan 530015092

Screw - 1/4 - 20 x 1/2 Socket Hd.

$2.49

$

Usually ships in 3-10 days

0

56

Poulan 530015209

Washer - Starter Pulley

$2.49

$

Usually ships in 3-10 days

0

57

Poulan 530011815

Fan Housing Ass'y.

$

$

Not available

60

Poulan 530069180

Gasket Repair Kit (Inc. 19,21,27,40)

$

$

Not available

61

Poulan 530031107

Scrench

$

$

Not available

62

Poulan 530042056

Handle Starter

$

$

Not available

63

Poulan 530069234

Rope Kit

$

$

Not available

64

Poulan 530002820

Bushing - Rope

$

$

Not available

65

Poulan 530015196

Screw - 1/4 - 20 x 1 - 1/2 1/8 Socket Hd.

$

$

Not available

A

Poulan 530026754

Decal - Fan Housing

$

$

Not available
