8510 - Poulan Chainsaw CARBURETOR, FUEL TANK, & HANDLE ASSEMBLIES Parts Diagram

Chainsaw

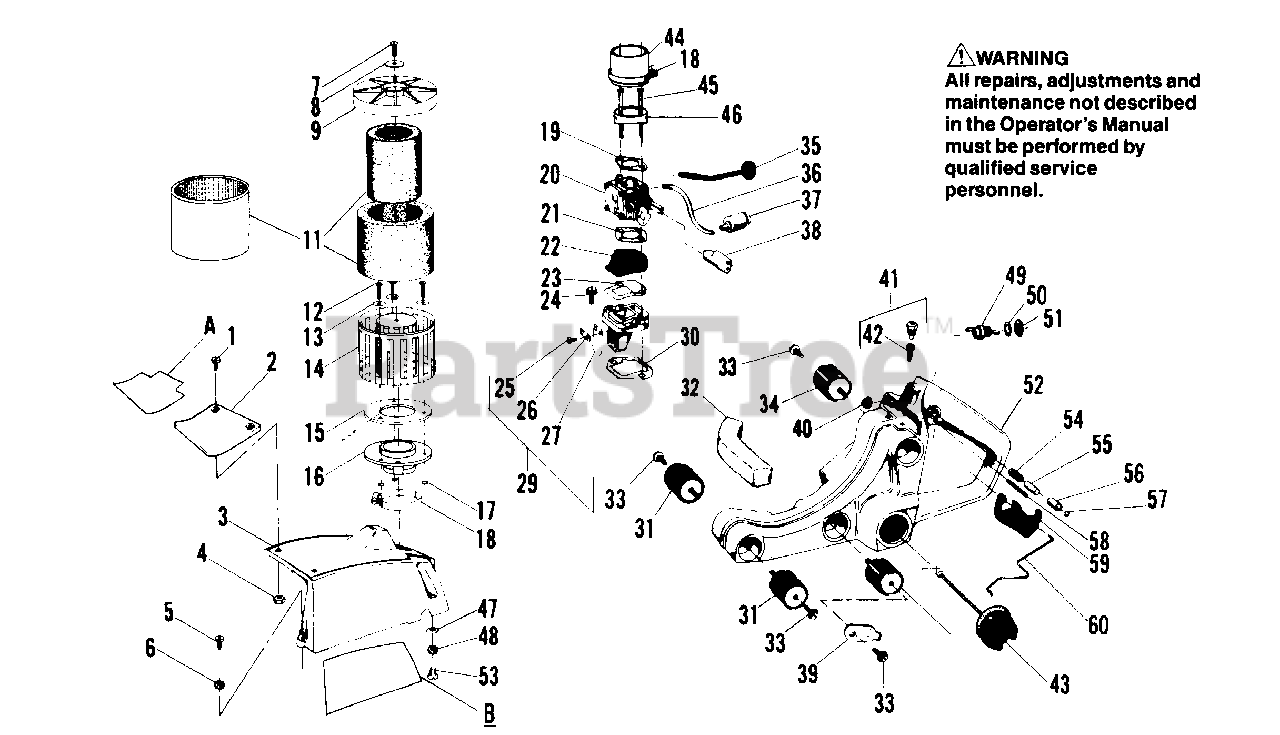

CARBURETOR, FUEL TANK, & HANDLE ASSEMBLIES Parts Diagram

  • Title

1

Poulan 530015406

Screw - 10 - 24 x 1/2 - Heat Shield

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530025914

Shield - Heat

$

$

Not available

3

Poulan 530012120

Cover - Cylinder

$

$

Not available

4

Poulan 530001543

Nut - 10 - 24 - Heat Shield

$

$

Not available

5

Poulan 530015329

Screw - Cylinder Cover - 10 x 24

$

$

Not available

6

Poulan 530015328

Washer -#10 Heavy Lock - Cylinder Cover

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530015141

Screw - 1/4 - 20 x 3/4 - Fill. Hd. - Air Filter Cover
(Superseded to 530015239)

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 530015622

Washer - Air Filter Cap

$

$

Not available

9

Poulan 530062164

Cap - Air Filter

$

$

Not available

11

Poulan 530062163

Air Filter Assembly

$

$

Not available

12

Poulan 530015651

Screw -#10 - 24 x 3/4 - Air Filter Case

$

$

Not available

13

Poulan 530001708

Washer - Air Filter Case

$

$

Not available

14

Poulan 530062168

Air Filter Case (Incl. #9 & 11)

$

$

Not available

15

Poulan 530019138

Gasket - Air Filter Case/Adaptor

$

$

Not available

16

Poulan 530062143

Adaptor - Air Filter Case

$

$

Not available

17

Poulan 530015653

Locknut - Adaptor
(Superseded to 534235901)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530062160

Hose Clamp

$

$

Not available

19

Poulan 530062161

Gasket - Carb./Air Filter Adaptor

$

$

Not available

20

Poulan 530034111

Carburetor Ass'y.

$

$

Not available

21

Poulan 530019082

Gasket - Carburetor

Note: Included in Gasket Kit

$

$

Not available

22

Poulan 530023654

Adaptor - Carb. Reed Block

$

$

Not available

23

Poulan 530019083

Gasket - Carb. Adaptor/Reed Block

Note: Included in Gasket Kit

$

$

Not available

24

Poulan 530015038

Screw - 10 - 24 x 3/4

$

$

Not available

25

Poulan 530001713

Screw - 4 - 40 x 1/8 Pan Hd.

$

$

Not available

26

Poulan 530002580

Stop - Reed

$

$

Not available

27

Poulan 530023643

Reed

$2.49

$

Usually ships in 3-10 days

0

29

Poulan 530010752

Reed Valve Ass'y. (Incl. #25, 26, 27 & 28)

$

$

Not available

30

Poulan 530019086

Gasket - Reed Valve

Note: Included in Gasket Kit

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530024224

Vibration Isolator - Front (Hour Glass Shape)

$

$

Not available

32

Poulan 530023692

Seal - Saw Dust

Note: Included in Gasket Kit

$

$

Not available

33

Poulan 530015036

Screw - 10 - 24 x 1/2
(Superseded to 530016141)

$5.99

$

Usually ships in 3-10 days

0

34

Poulan 530024637

Vibration Isolator - Middle & Rear (Cylinder Shape)

$

$

Not available

35

Poulan 530024762

Choke - Rod

$

$

Not available

36

Poulan 530021022

Line - Fuel Pick-up

$

$

Not available

37

Poulan 530034114

Fuel Pick-up Ass'y.

$

$

Not available

38

Poulan 530024003

Grommet - Carb. Screws

$

$

Not available

39

Poulan 530024322

Bumper - Center Isolator Mount

$

$

Not available

40

Poulan 530023665

Grommet - Choke Rod

Note: Included in Gasket Kit

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 530010528

Vent Ass'y. - Fuel Tank (Incl. #42)

$

$

Not available

42

Poulan 530026119

Check Valve - Fuel Tank Vent

$5.99

$

In Stock, Qty 10

0

43

Poulan 530010331

Fuel Cap Ass'y.

$

$

Not available

44

Poulan 530062159

Hose - Rubber

$

$

Not available

45

Poulan 530015627

Screw - Carburetor

$

$

Not available

46

Poulan 530062144

Adaptor- Carb./Air Filter

$

$

Not available

47

Poulan 530092062

Washer - Cylinder Cover

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530001642

Lockwasher - 1/4 Cylinder Cover

$3.99

$

Usually ships in 3-10 days

0

49

Poulan 530023732

Switch - Ignition

$

$

Not available

50

Poulan 530015214

Lockwasher - Switch

$

$

Not available

51

Poulan 530023575

Nut - Switch Mounting
(Superseded to 530002582)

$

$

Not available

52

Poulan 530010749

Fuel Tank & Handle Ass'y. (Inc. 55-58)

$

$

Not available

53

Poulan 530015117

Screw-Cylinder Cover/Adaptor

$

$

Not available

54

Poulan 530024772

Spring - Throttle Lock Button

$4.99

$

Usually ships in 3-10 days

0

55

Poulan 530024771

Pin - Throttle Lock

$3.99

$

Usually ships in 3-10 days

0

56

Poulan 530024773

Sleeve - Throttle Lock

$

$

Not available

57

Poulan 530001672

E-Ring Throttle Lock

$

$

Not available

58

Poulan 530015008

Pin - Trigger Shaft

$

$

Not available

59

Poulan 530023658

Trigger Throttle

$

$

Not available

60

Poulan 530026351

Rod - Throttle

$

$

Not available

A

Poulan 530026755

Decal - Instructions

$

$

Not available

B

Poulan 530025322

Decal - Warning

$

$

Not available

Poulan 530066512

Operator's Manual

$

$
