851 (590-851-150) - Cub Cadet Discharge Restrictor Kit General Assembly Parts Diagram

Discharge Restrictor Kit

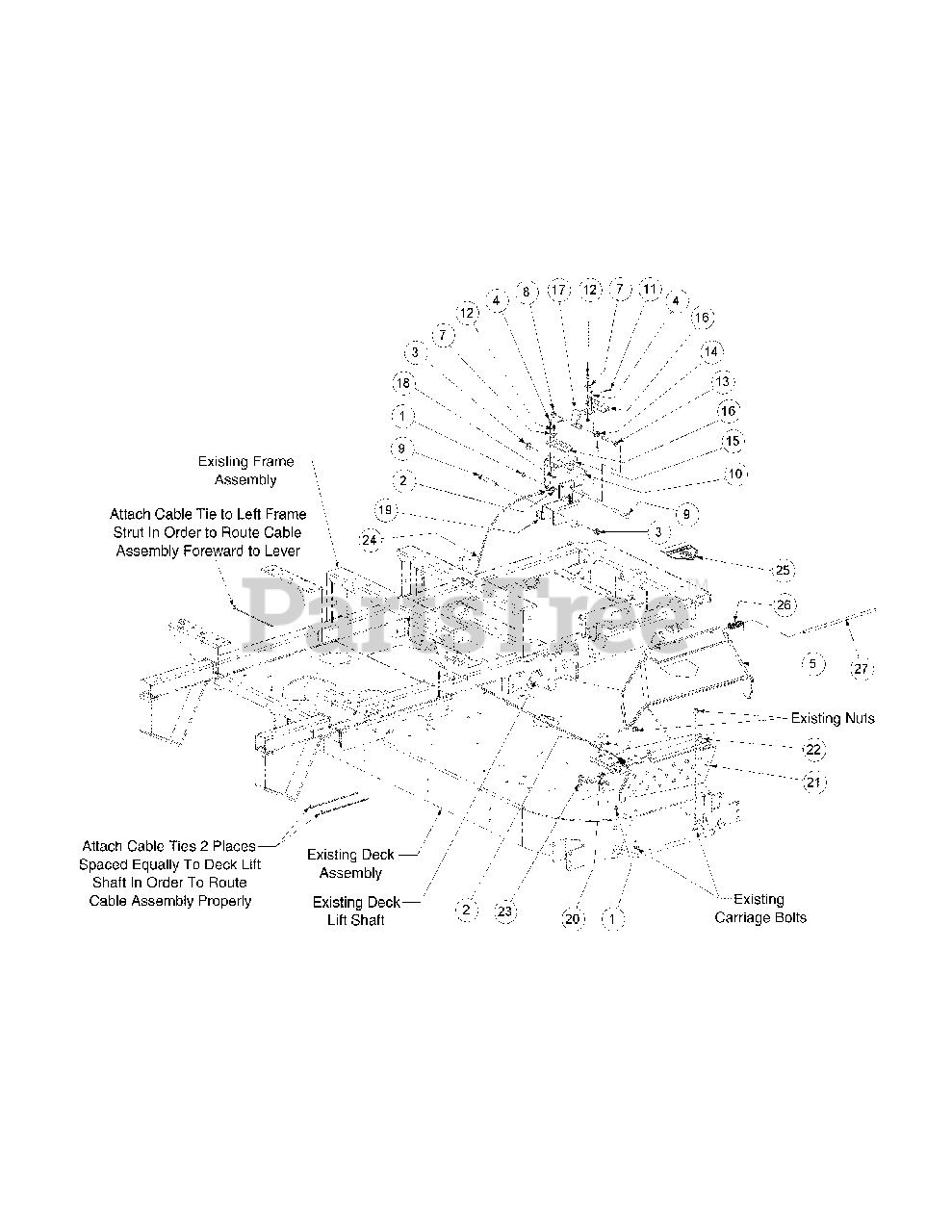

General Assembly Parts Diagram

  • Title
1

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00013131

Screw, Hex, Cap, 1/4-20 x .75

$6.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00060031

Clevis Pin, 1/4 x 1/2, SS
(Superseded to 715-05056)

$9.49

$

In Stock, only 2 left!

0

5

Cub Cadet 01006693P

Chute Deflector

$68.99

$

In Stock, Qty 8

0

6

Cable Tie

$

$

Not available

7

Cub Cadet 01000489

Bell Washer, .265 x 0.75 x 0.062
(Superseded to 736-0270)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3022

Hex Head Capscrew, 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

10

Cub Cadet 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01006997

Shoulder Bolt, 1/4 x 1/4, SS

$

$

Not available

13

Cub Cadet 01007122P

Hex Head Capscrew, 5/16-18 x 2.5

$

$

Not available

14

Cub Cadet 01008140P

Deck Lift Spring

$34.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01009191-0637

Foot Pedal Latch Lever Assembly

$

$

Not available

16

Cub Cadet 01009193-0637

Rate Plate Pad

$

$

Not available

17

Cub Cadet 01009198-0637

Foot Pedal Latch Assembly

$

$

Not available

18

Cub Cadet 01009377

Nut w/ Star Washer, 10-24

$5.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02000045

Bracket Engage Cable Weldment

$

$

Not available

20

Cub Cadet 01010160

Restrictor Discharge Spring

$8.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 02000047

Restrictor Discharge Weldment

$

$

Not available

22

Cub Cadet 02000046

Chute Deflector Bracket Weldment

$118.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02000044

Restrictor Support Weldment

$46.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02000080

Restrictor Discharge Cable Assembly

$

$

Not available

25

Cub Cadet 01002166

Decal, Danger, Hands & Feet

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-04797

Torsion Spring, 0.4 ID x 2.16 LG.

$11.99

$

In Stock, only 4 left!

0

27

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0
