8500 - Poulan Chainsaw CLUTCH & OIL PUMP Parts Diagram

Chainsaw

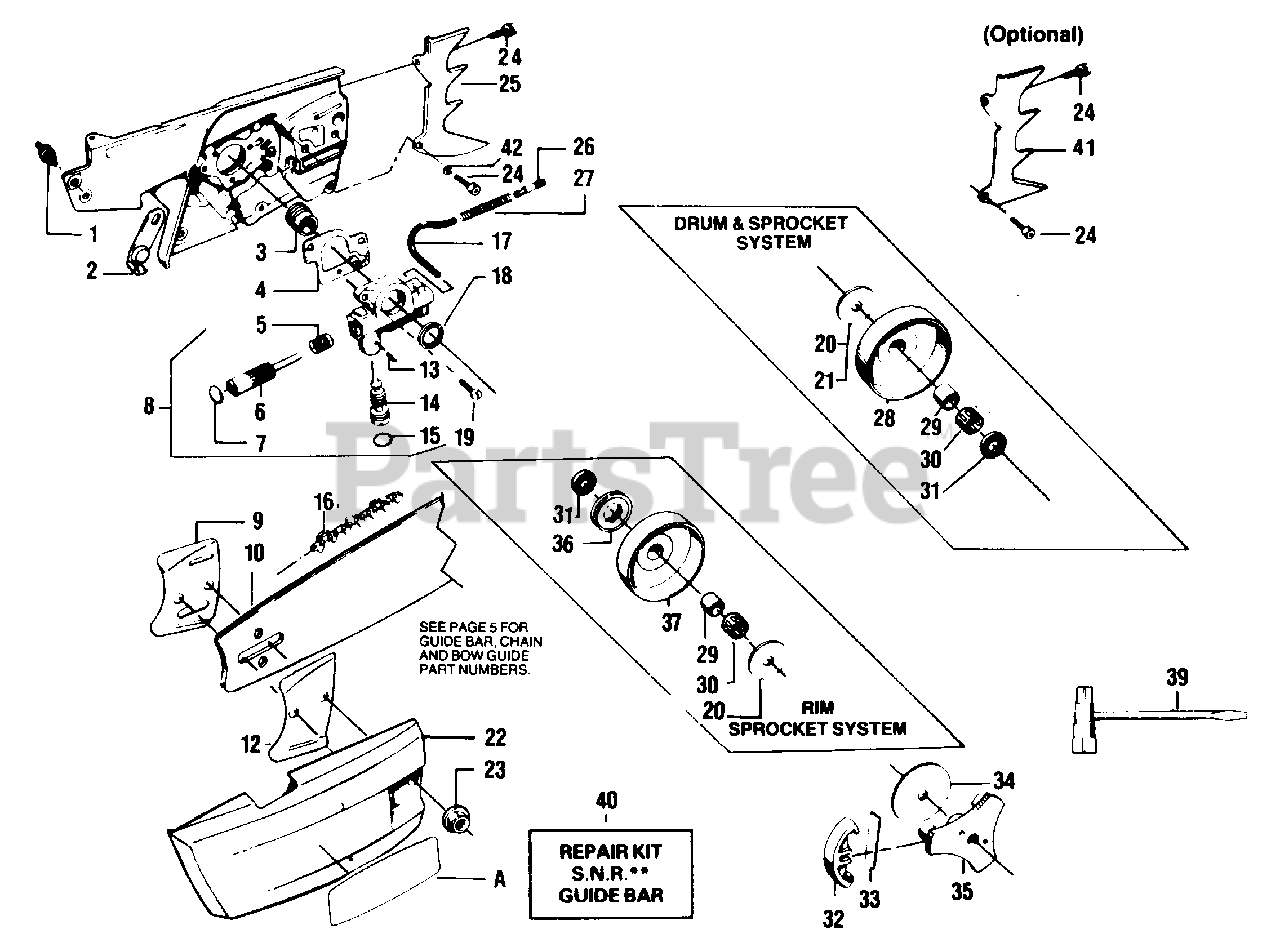

CLUTCH & OIL PUMP Parts Diagram

  • Title

1

Poulan 530023663

Bumper - Bar Clamp

$

$

Not available

2

Poulan 530024322

Bumper - Center Isolator Mount

$

$

Not available

3

Poulan 530023673

Worm Gear

$

$

Not available

4

Poulan 530019084

Gasket - Oil Pump Included in Engine - Gasket Kit 69180

$

$

Not available

5

Poulan 530023695

Spring - Oil Pump Plunger

$

$

Not available

6

Poulan 530023672

Plunger - Oil Pump

$

$

Not available

7

Poulan 530023669

Plug - Oil Pump Body

$

$

Not available

8

Poulan 530010173

Oil Pump Assembly (Incl. #5, 6, 7, 13, 14, 15, 17, 18 & 26)

$

$

Not available

9

Poulan 530025858

Plate - Bar (Inner)

$

$

Not available

10

Bar - See Page 5

$

$

Not available

12

Poulan 530025857

Plate - Bar (Outer)

$

$

Not available

13

Poulan 530015211

Pin - Adj. Screw Stop

$

$

Not available

14

Poulan 530023659

Screw - Oil Pump Adjusting

$

$

Not available

15

Poulan 530019079

"O" Ring - Adj. Screw Included in Engine - Gasket Kit 69180

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530021021

Line - Oil Pick-up (3-1/4" Long; Cut from No. 8132 Tubing)

$

$

Not available

18

Poulan 530019076

Seal - Oil Pump Included in Engine - Gasket Kit 69180

$

$

Not available

19

Poulan 530015168

Screw - 10 - 24 x 5/8

$

$

Not available

20

Poulan 530015574

Washer - Sprocket Shroud - See Service Ref. 1

$

$

Not available

21

Poulan 530015592

Moss Thrust Washer - Sprocket Shroud (Optional)

$

$

Not available

22

Poulan 530011917

Bar Clamp

$47.99

$

Usually ships in 3-10 days

0

23

Poulan 530015537

Nut - Bar Mounting (.375) (Includes Washer)

$

$

Not available

24

Poulan 530001636

Screw - Spur - 1/4 - 20 x 5/8 - Socket Head

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530025954

Spur - Heavy Duty

$

$

Not available

26

Poulan 530002589

Weight & Filter - Oil Pick-up

$10.99

$

Usually ships in 3-10 days

0

27

Poulan 530023456

Spring - Oil Line Protector

$

$

Not available

28

Drum & Sprocket - (Optional) - See Service Ref. 1

$

$

Not available

Poulan 952048075

OBSOLETE

$

$

Not available

Poulan 530048075

7 tooth 3/8" Pitch

$

$

Not available

Poulan 530048076

7 tooth .404 Pitch

$

$

Not available

29

Poulan 530032085

Inner Race - Clutch Drum

$

$

Not available

30

Poulan 530032084

Bearing - Clutch

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530015575

Washer - Thrust (Black) - See Service Ref. 1

$

$

Not available

32

Poulan 530023469

Shoe - Clutch

$

$

Not available

33

Poulan 530023675

Spring - Clutch Shoe (Green)

$

$

Not available

34

Poulan 530015577

Washer - Clutch Shoe

$

$

Not available

35

Poulan 530022281

Drive Plate - Clutch

$

$

Not available

36

Rim Sprocket - See Service Ref. 1

$

$

Not available

Poulan 530004746

RIM - FLOATING

$

$

Not available

Poulan 952004746

3/8" Pitch - 7 tooth (Optional)

$4.99

$

Usually ships in 3-10 days

0

Poulan 530004747

SUB 952-004747 RIM

$

$

Not available

Poulan 952004747

.404 Pitch - 7 tooth (Optional)

$

$

Not available

37

Poulan 530048077

Clutch Drum - Splined (for Rim Sprocket) - See Service Ref. 1

$

$

Not available

39

Poulan 530031107

Scrench

$

$

Not available

40

Repair Kit - Symmetrical S.N.R.** Guide Bars

$

$

Not available

Poulan 530055064

.050 gauge

$

$

Not available

.063 gauge

$

$

Not available

Poulan 530055059

Control Tip - S.N.R.** Guide Bars - .050 gauge

$

$

Not available

Poulan 530055061

Control Tip - S.N.R.** Guide Bars - .063 gauge

$77.99

$

Usually ships in 3-10 days

0

41

Poulan 530022112

Spur (Optional)

$

$

Not available

42

Poulan 530001642

Lockwasher - Spur

$3.99

$

Usually ships in 3-10 days

0

A

Decal - Bar Clamp -

$

$

Not available

Poulan 530026736

6900

Note: Not Shown.

$

$

Not available

Poulan 530026739

7700 G.SAW

$

$

Not available

Poulan 530026742

8500

$

$

Not available

Poulan 530066548

Operators Manual

$6.49

$

Usually ships in 3-10 days

0

Poulan 530066051

Bow Guide Manual

$

$

Not available

Carton

Note: Not Shown.

$

$

Not available
