850 - BCS America Two-Wheeled Tractor Clutch (SN: 1000 - 2033) Parts Diagram

Two-Wheeled Tractor

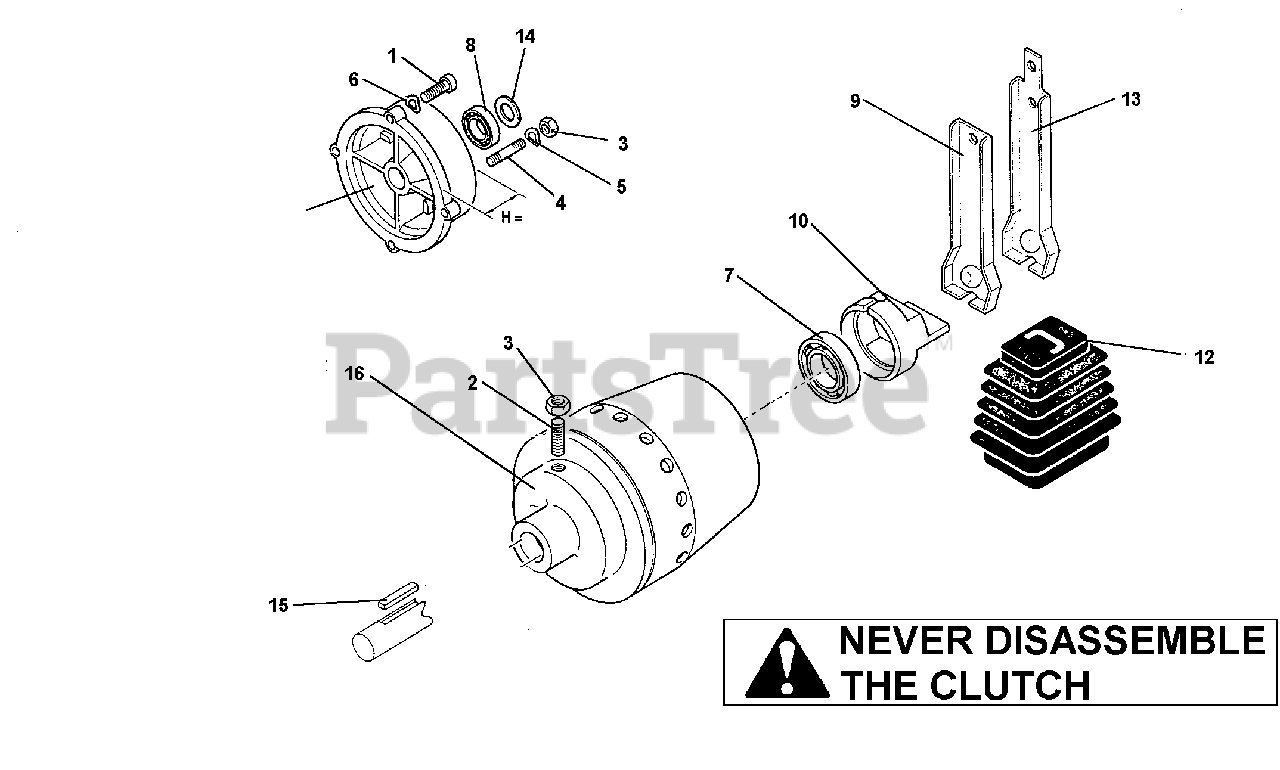

Clutch (SN: 1000 - 2033) Parts Diagram

  • Title

1

BCS America 311.00015

SCREW 7/16 X 1 1/4"

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.00786

SET SCREW M8X30

$1.49

$

In Stock, Qty 5

0

3

BCS America 312.11080

NUT M8

$0.99

$

In Stock, only 3 left!

0

4

BCS America 313.12088

STUD8X40

$8.49

$

In Stock, only 2 left!

0

5

BCS America 314.23084

WASHER, WAVE

$0.99

$

In Stock, Qty 10

0

6

BCS America 314.23105

WASHER

$1.49

$

In Stock, Qty 5

0

7

BCS America 371.12173

BEARING17X40X12

$10.99

$

In Stock, only 3 left!

0

8

BCS America 371.12233

BEARING,30X55X13

$24.99

$

Usually ships in 5-8 days

0

9

BCS America 509.47833

CLUTCH LEVER, ELECTRIC START

$47.99

$

Usually ships in 5-8 days

0

10

BCS America 524.47896

CONE PUSHER

$

$

Not available

11

531.47482

FLANGE, VANGARD

$

$

Not available

12

BCS America 551.47842

BOOT

$31.99

$

Usually ships in 5-8 days

0

13

BCS America 561.47845

CLUTCH LEVER, RECOIL START

$31.99

$

In Stock, only 1 left!

0

14

BCS America 563.47484

WASHER

$2.99

$

In Stock, only 1 left!

0

15

BCS America 563.49782

KEY

$10.99

$

Usually ships in 5-8 days

0

16

592.47970

HEAVY DUTY CLUTCH, VANGARD

$

$

Not available
