850 (590-850-150) - Cub Cadet Z-Wing MCS Kit att General Assembly Parts Diagram

Z-Wing MCS Kit

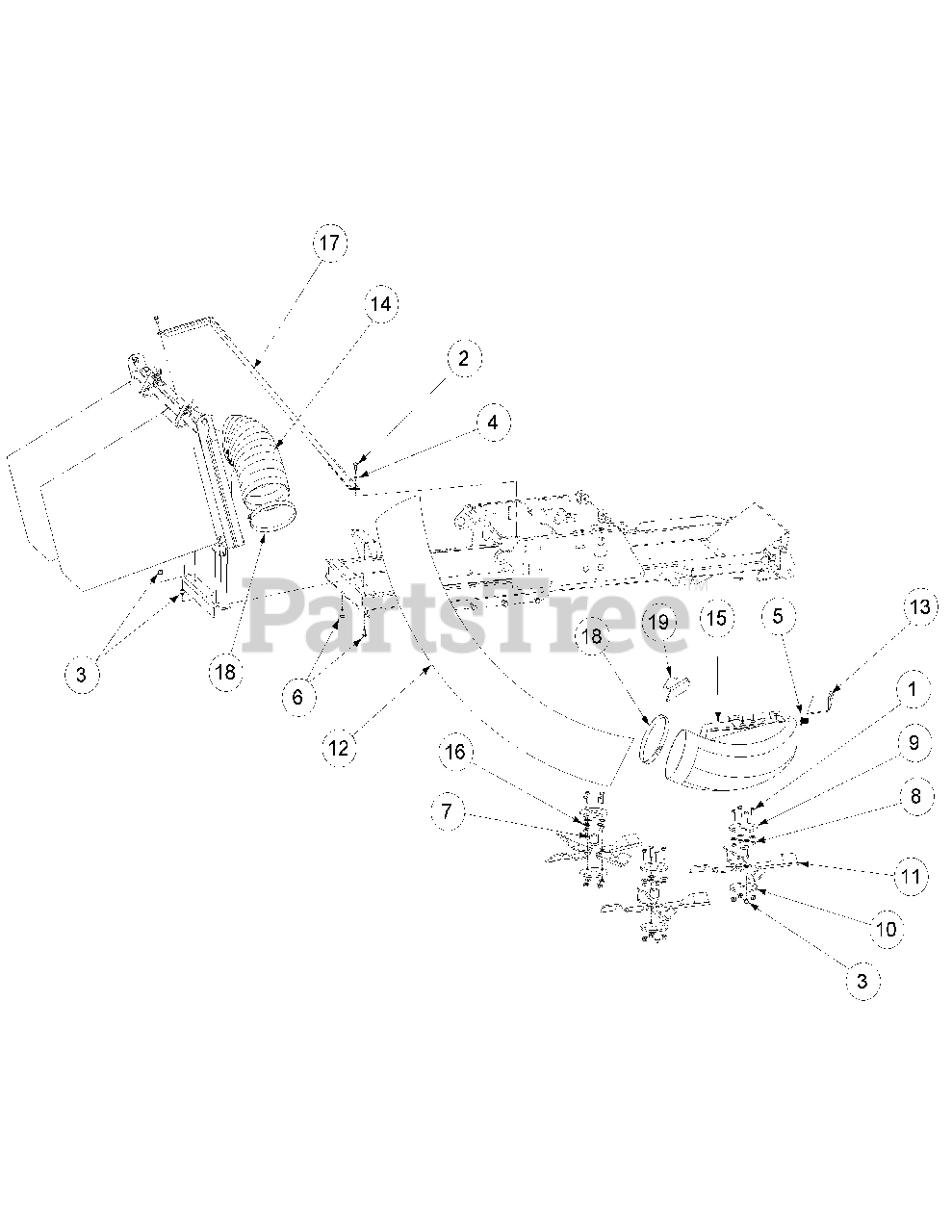

General Assembly Parts Diagram

  • Title

1

Cub Cadet 00011444

Hex Cap Screw, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet 00013092

Hex Cap Screw, 5/16-18 x 1.00
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00009812

Washer, 5/16

$

$

Not available

5

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 7

0

6

Cub Cadet 01002601

Hex Cap Screw, 3/8-16, .750
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

7

Cub Cadet 02000798

Blade Spacer

$

$

Not available

8

Cub Cadet 02000799

Spacer, .385 ID x .625 OD x .25

$8.49

$

In Stock, only 3 left!

0

9

Cub Cadet 02000872

Mulch Blade Mounting Plate, Top

$

$

Not available

10

Cub Cadet 02000873

Mulch Blade Mounting Plate, Bottom

$

$

Not available

11

Cub Cadet 02001560

High Lift Blade

$

$

Not available

12

Cub Cadet 02001657

MCS Tube

$

$

Not available

13

Cub Cadet 02001688

MCS Discharge Baffle
(Superseded to 783-05183-0637)

$

$

Not available

14

02001805

Double Bagger Assembly

$

$

Not available

15

Cub Cadet 02001838

Boot Assembly includes:

$

$

Not available

Cub Cadet 02002283

Boot Plate

$

$

Not available

Cub Cadet 00017732

Pop Rivet

$

$

Not available

Cub Cadet 02000937

Boot

$

$

Not available

Cub Cadet 02001655

Bracket

$

$

Not available

16

Cub Cadet 02001891

Washer, 1" OD x .625" ID x .048

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 02002136

Strut Support Weldment

$

$

Not available

18

Cub Cadet 02002182

Clamp

$

$

Not available

19

Cub Cadet 02002228

Chute Discharge Baffle

$

$

Not available
