850 (590-850-150) - Cub Cadet Z-Wing MCS Kit att Bagger Parts Diagram

Z-Wing MCS Kit

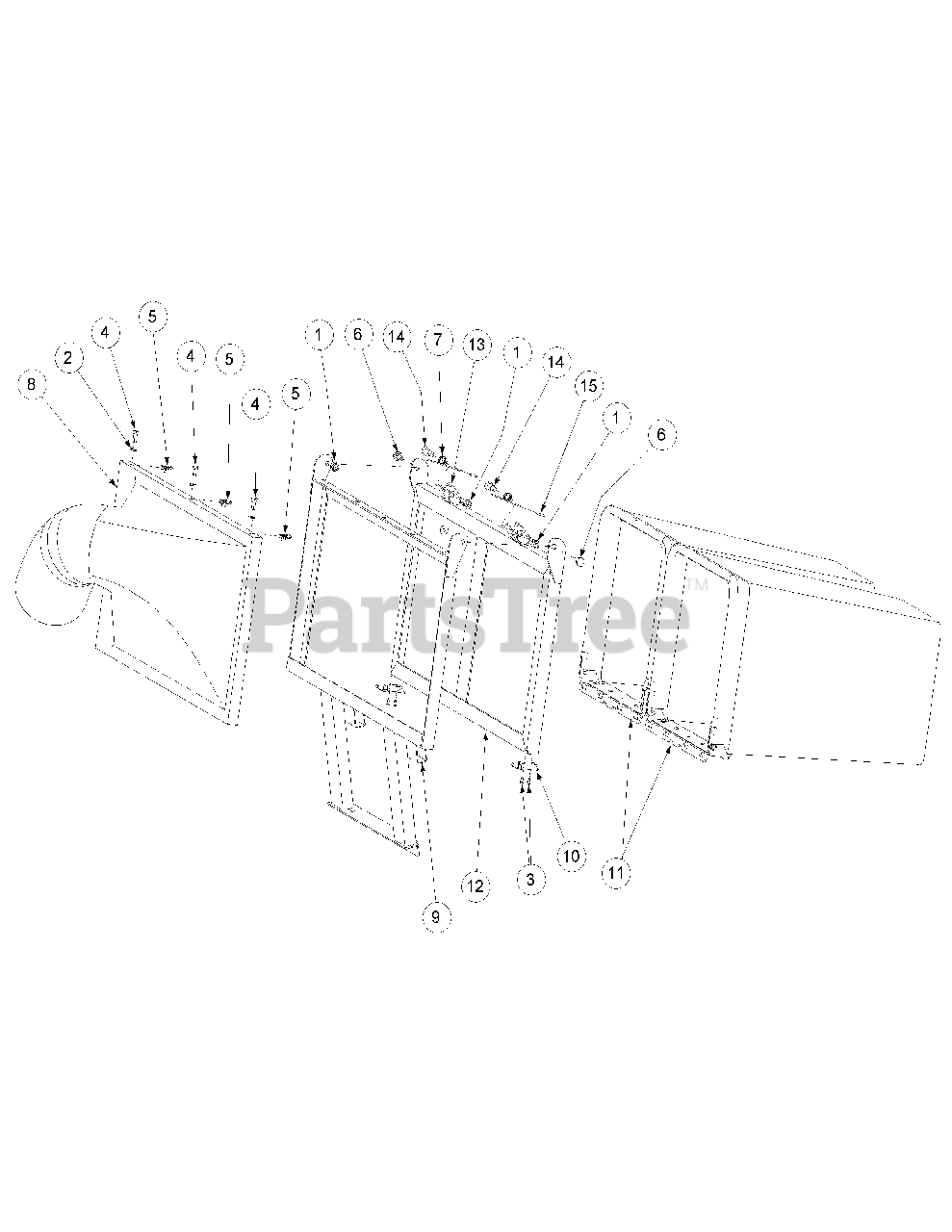

Bagger Parts Diagram

  • Title

1

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available

3

Cub Cadet 01000811

Screw, #8-32 x 0.375
(Superseded to 710-0148)

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 00013092

Hex Cap Screw, 5/16-18 x 1.00
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 01004118

Shoulder Screw, .50 OD x 0.27
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

7

Cub Cadet 01008140

Spring
(Superseded to 01008140P)

$34.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 02001202

MCS Back Baffle

$

$

Not available

9

Cub Cadet 02002122

MCS Main Frame Weldment

$

$

Not available

10

Cub Cadet 02002280

Draw Latch

$

$

Not available

11

Cub Cadet 02001791

Double Bagger Assembly

$

$

Not available

12

Cub Cadet 02002124

Door Frame Weldment

$

$

Not available

13

Cub Cadet 02002083

Rear Bagger Latch

$

$

Not available

14

Cub Cadet 02002091

Shoulder Bolt, 1/2 x 3/4, 3/8-16

$

$

Not available

15

Cub Cadet 02002240

Cap, Spring

$

$

Not available
