85 Special (03400XXU) - International Harvester 28" Riding Mower (1975 & After) Mower Hitch Parts Diagram

28" Riding Mower

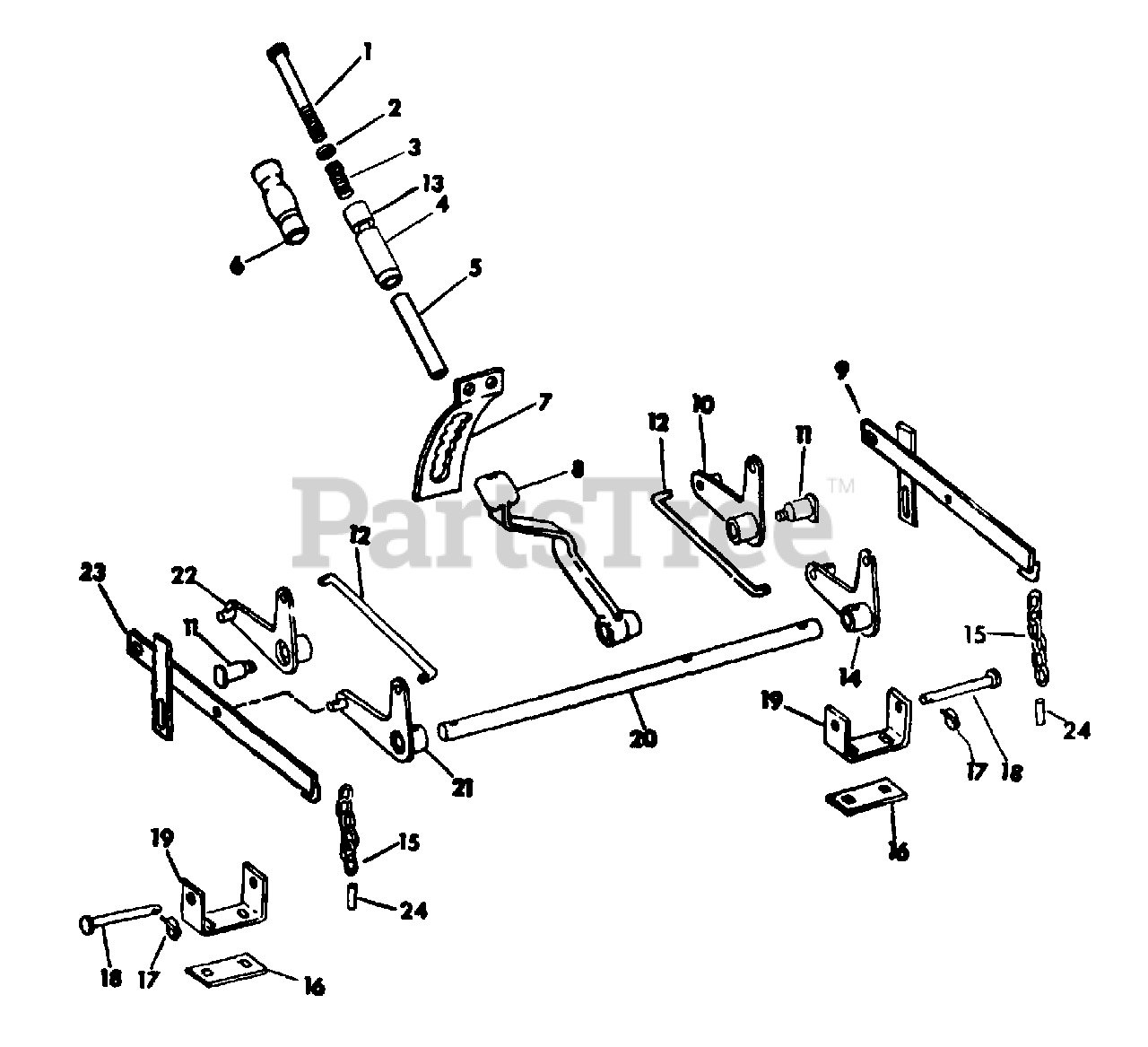

Mower Hitch Parts Diagram

  • Title

1

Cub Cadet IH-16922-R1

SCREW, 3/8-16 X 6-1/4 ZND HEX-HD CAP

$

$

Not available

2

Cub Cadet IH-374187-R1

WASHER, SPRING RETAINING

$

$

Not available

3

Cub Cadet IH-488049-R1

SPRING, COMPRESSION

$

$

Not available

4

Cub Cadet IH-541282-R1

BUSHING, LIFT

$

$

Currently unavailable

5

Cub Cadet IH-488048-R1

BUSHING, LIFT HANDLE

$

$

Currently unavailable

6

Cub Cadet IH-488835-R1

GRIP, HANDLE

$

$

Not available

7

Cub Cadet IH-488046-R1

SECTOR, LIFT HANDLE

$

$

Currently unavailable

Cub Cadet IH-179837

SCREW, 3/8-16 X 3/4 HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-180124

SCREW, 3/8-16 X 1-1/4 HEX-HD CAP
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-102635

NUT, 3/8-16 HEX -3-

$

$

Currently unavailable

Cub Cadet IH-102394

WASHER, 13/32 X 13/16 X .051

$

$

Currently unavailable

8

Cub Cadet IH-488050-R1

LEVER, LIFT

$

$

Not available

Cub Cadet IH-19885-R1

PIN, 1/4 X 1-3/8 MED COILED SPRING
(Superseded to 915-3000)

$

$

Not available

9

Cub Cadet IH-106697-C1

SUPPORT ASSY, RH LIFT BAR

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, .531 X 1.000 X 056
(Superseded to 936-0160)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet IH-108629

PIN, 3/32 X 7/8 PLN COT
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

10

Cub Cadet IH-489069-R1

ARM ASSY, RH FRONT LIFT

$

$

Currently unavailable

11

Cub Cadet IH-489066-R1

PIN, PIVOT

$

$

Not available

Cub Cadet IH-120396

WASHER, 17/32 X 1-1/16 X 074 ZND
(Superseded to 936-0272)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120378

NUT, 1/2-13 ZND HEX
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet IH-549114-R1

ROD, CONNECTING LINK

$

$

Currently unavailable

Cub Cadet IH-108629

PIN, 3/32 X 7/8 COT
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

Cub Cadet IH-Q1597

WASHER, 13/32 X 3/4 X 16 GA

$

$

Currently unavailable

13

Cub Cadet IH-541283-R1

BUSHING, LIFT HANDLE

$

$

Currently unavailable

14

Cub Cadet IH-488054-R1

ARM ASSY, RH REAR LEFT

$

$

Not available

15

Cub Cadet IH-549118-R1

CHAIN. REAR MOWER

$

$

Not available

Cub Cadet IH-21097-R1

SCREW, 1/4 X 1-1/4 ZNP P/HDS MACH

$

$

Currently unavailable

Cub Cadet IH-20600-R1

WASHER, .281 X .750 X 105

Note: USED ONLY TO LEVEL MOWER

$

$

Currently unavailable

Cub Cadet IH-23505-R1

WASHER, 9/32 X 5/8 X 16 GA C-Z

$

$

Currently unavailable

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 17

0

16

Cub Cadet IH-489070-R2

PLATE, STIFFENER

$

$

Not available

Cub Cadet IH-16888-R1

BOLT, 5/16 X 1/4 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-21496-R1

WASHER, .344 X .750 X .105
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet IH-479696-R91

PIN, KLIK
(Superseded to 914-3008)

$

$

Not available

18

Cub Cadet IH-492360-R1

PIN, CLEVIS

$

$

Not available

Cub Cadet IH-20601-R1

WASHER, 17/32 X 1-1/4 X .119 ZND
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

19

Cub Cadet IH-549117-R1

CLEVIS, LOCK PIN FRT BRACKET

$

$

Currently unavailable

Cub Cadet IH-20893-R1

WASHER, 11/32 X 1 X 11 GA ZND

Note: USED ONLY TO LEVEL MOWER

$

$

Currently unavailable

20

Cub Cadet IH-488052-R1

ROD

$

$

Not available

21

Cub Cadet IH-488053-R1

ARM ASSY, LH REAR LIFT

$

$

Currently unavailable

Cub Cadet IH-19885-R1

PIN, 3/4 X 1-3/8 MED COILED SPRING
(Superseded to 915-3000)

$

$

Not available

22

Cub Cadet IH-489067-R1

ARM ASSY, LH FRONT LIFT

$

$

Not available

23

Cub Cadet IH-106696-C1

SUPPORT ASSY, LH LIFT BAR

$

$

Not available

Cub Cadet IH-178373-R1

WASHER, .531 X 1.000 X .056
(Superseded to 936-0160)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet IH-108629

PIN, 3/32 X 7/8 PLN COT
(Superseded to 914-0111)

$4.99

$

In Stock, Qty 13

0

24

Cub Cadet IH-385544-R1

SPACER, 1/4 X 3/8 STD PIPE

$

$

Currently unavailable
