85-36MR01 - Toro 36" Rear-Discharge Mower Deck (1978) REAR AND SIDE DISCHARGE MOWERS-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBERS 85-36MR01, 95-36MR00, 85-36MS01. 95-36MS00 Parts Diagram

36" Rear-Discharge Mower Deck

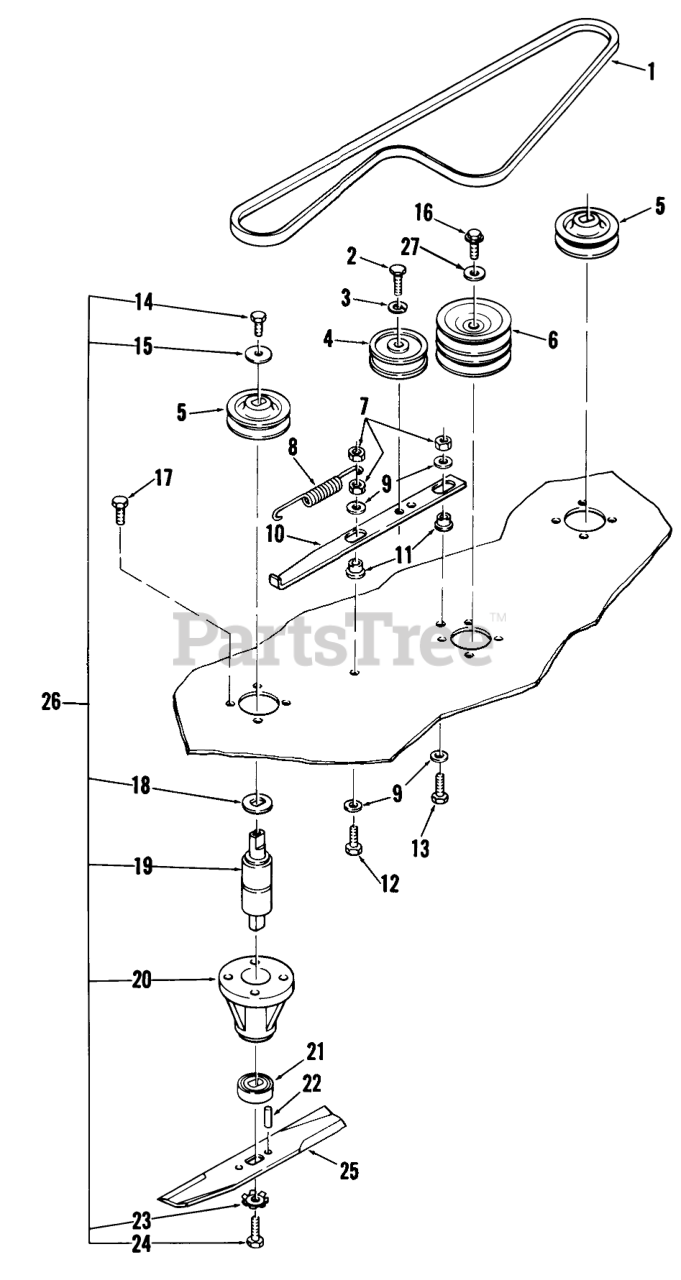

REAR AND SIDE DISCHARGE MOWERS-36 IN. (92 CM) VEHICLE IDENTIFICATION NUMBERS 85-36MR01, 95-36MR00, 85-36MS01. 95-36MS00 Parts Diagram

  • Title

1

Toro 8411

V-BELT

$25.99

$

In Stock, only 1 left!

0

2

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

5

Toro 105781

PULLEY-MOWER DRIVE

$59.99

$

In Stock, only 2 left!

0

6

Toro 106113

PULLEY-36IN MOWER

$153.99

$

Usually ships in 3-6 days

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

8

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

10

Toro 106120

BAR-IDLER SUPPORT

$76.99

$

In Stock, only 2 left!

0

11

Toro 106121

Bushing/Spacer
(Superseded to 107674)

$1.99

$

In Stock, Qty 17

0

12

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

13

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

14

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

16

Toro 102972

Bolt-Lock 3/8-16 x 7/8
(Superseded to 113134)

$

$

Not available

17

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

18

Toro 105075

WASHER-DOUBLE D

$

$

Not available

19

Toro 103119

BEARING

$

$

Not available

20

Toro 105074

HOUSING-BEARING B
(Superseded to 105074-03)

$

$

Not available

21

Toro 104373

Cup-Spindle
(Superseded to 102780)

$136.99

$

In Stock, only 1 left!

0

22

Toro 933210

SPIROL ROLL PIN

$2.99

$

Usually ships in 3-6 days

0

23

Toro 1336

WASHER

$

$

Not available

24

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

25

Toro 8969

BLADE KIT 36 LF REAR

$136.99

$

In Stock, only 1 left!

0

25

Toro 101335

BLADE KIT

$144.99

$

Usually ships in 3-6 days

0

26

Toro 101525

S/A SPINDLE ASSY

$

$

Not available

27

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0
