85 (0340029U) - International Harvester 32" Riding Mower (1975 & After) Rear Bumper Attachment Parts Diagram

32" Riding Mower

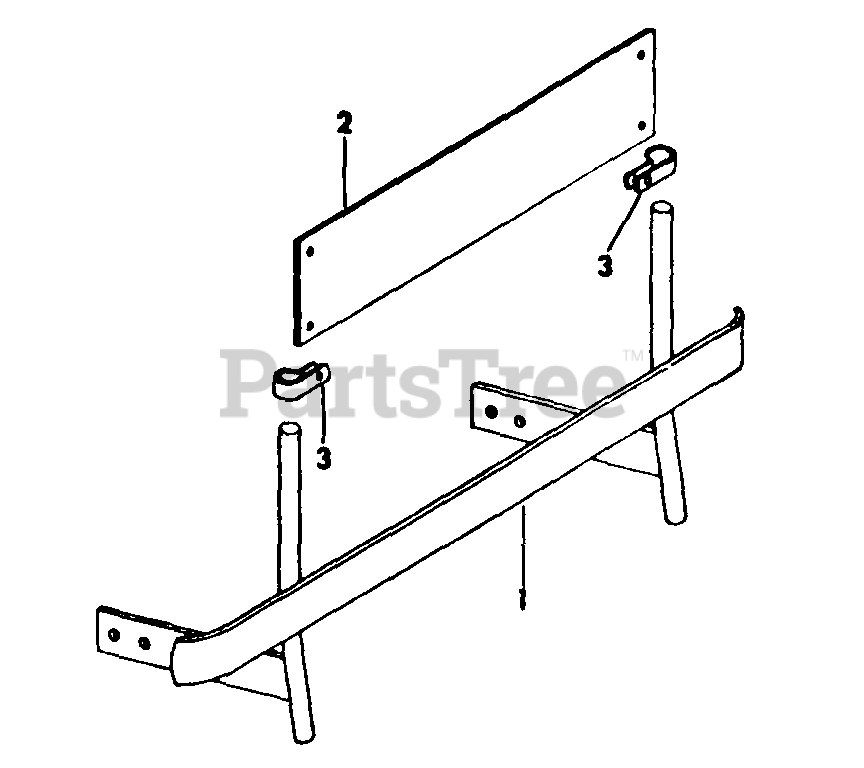

Rear Bumper Attachment Parts Diagram

  • Title

1

Cub Cadet IH-106687-C1

BUMPER ASSY, REAR

$

$

Not available

Cub Cadet IH-21860-C1

BOLT, 3/8-16 X 7/8 ZND SQ-NK CRG

$

$

Currently unavailable

Cub Cadet IH-19573-R1

SCREW, 3/8-16 X 7/8 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120382

WASHER, 3/8 ZND REG LOCK
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

NUT, 3/8-16 ZND HEX
(Superseded to 712-0798)

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet IH-107120-C1

SHIELD, EXHAUST

$

$

Currently unavailable

3

Cub Cadet IH-HL3551

CLAMP, 1 INCH CLOSED

$

$

Currently unavailable

Cub Cadet IH-180022

SCREW, 1/4-20 X 1 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-23505-R1

WASHER, 9/32 X 5/8 X 16 GA ZND

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4-20 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0
