85 (0340029U) - International Harvester 32" Riding Mower (1975 & After) Carburetor, Air Cleaner & Fuel Tank Parts Diagram

32" Riding Mower

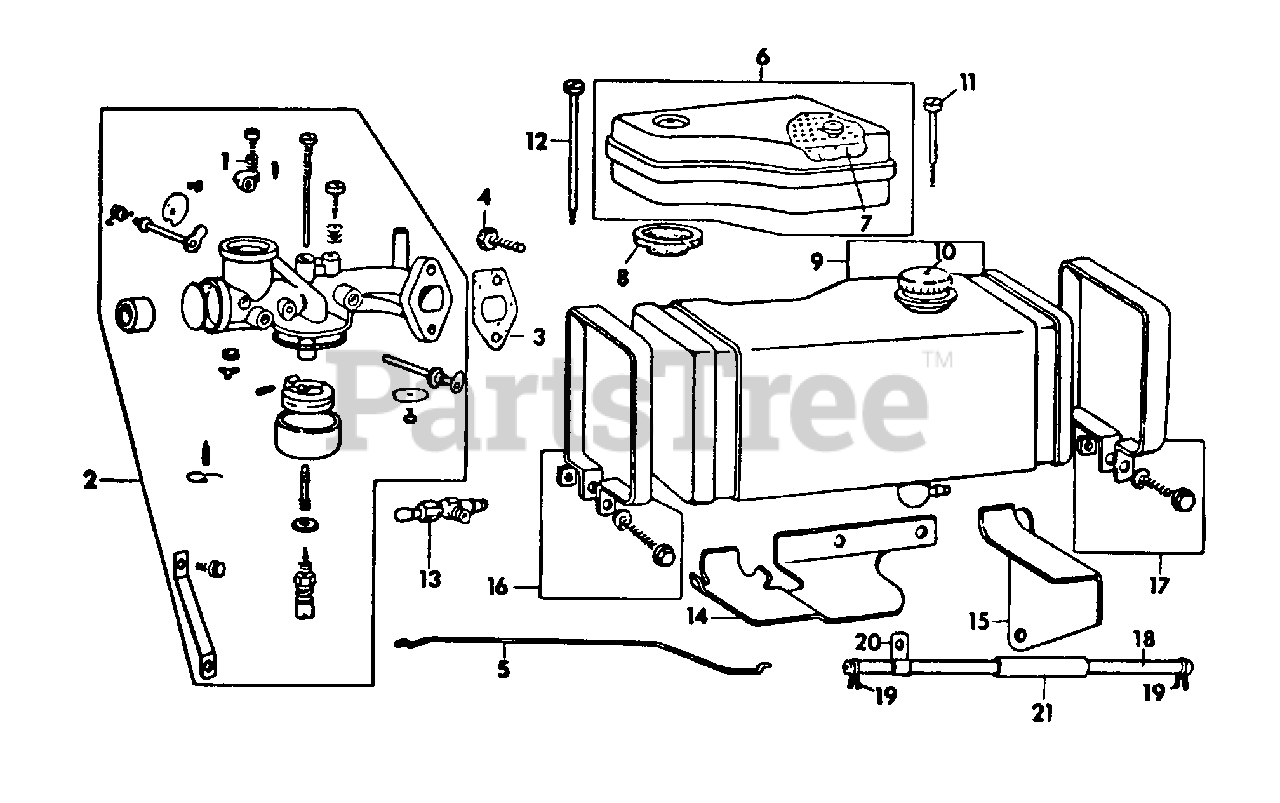

Carburetor, Air Cleaner & Fuel Tank Parts Diagram

  • Title
1

Cub Cadet IH-549448-R1

SPRING, THROTTLE ADJUSTING

$

$

Currently unavailable

Cub Cadet IH-131974

SCREW, 8-32 X 5/8 ZND FIL-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138166

WASHER, NO 8 INT-TOOTH LOCK

$

$

Currently unavailable

Cub Cadet IH-120622

NUT, 8-32 HEX
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 9

0

2

Cub Cadet IH-539897-R91

CARBURETOR ASSY

$

$

Not available

3

Cub Cadet IH-61861-C1

GASKET, CARBURETOR
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 6

0

4

Cub Cadet IH-549493-R1

SCREW, CARBURETOR MOUNTING

$

$

Not available

5

$

$

Not available

6

Cub Cadet IH-61862-C91

CLEANER ASSY, AIR

$

$

Not available

Cub Cadet IH-61863-C1

SUPPORT, AIR CLEANER

$

$

Currently unavailable

7

Cub Cadet IH-539920-R1

ELEMENT
(Superseded to BS-270528S)

$15.99

$

In Stock, Qty 13

0

8

Cub Cadet IH-539921-R1

GASKET, AIR CLEANER

$

$

Not available

9

Cub Cadet IH-539861-R91

TANK W/CAP, FUEL

$

$

Not available

10

Cub Cadet IH-539862-R2

CAP, FUEL TANK FILLER
(Superseded to BS-394818S)

$33.99

$

In Stock, only 1 left!

0

11

Cub Cadet IH-55300-C1

SCREW, AIR CLEANER

$

$

Not available

12

Cub Cadet IH-55301-C1

SCREW, AIR CLEANER

$

$

Not available

13

Cub Cadet IH-539863-R1

CONNECTOR & FUEL SHUT-OFF

$

$

Not available

14

Cub Cadet IH-539864-R2

BRACKET, FUEL TANK FRONT

$

$

Not available

15

Cub Cadet IH-539865-R1

BRACKET, FUEL TANK REAR

$

$

Not available

Cub Cadet IH-120214

WASHER, 5/16 ZND REG LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet IH-539867-R1

STRAP, FUEL TANK FRONT

$

$

Not available

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

17

Cub Cadet IH-539868-R1

STRAP FUEL TANK REAR

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

18

HOSE, FUEL LINE

Note: USE 23 IN. OF 1/2 HOSE FROM BULK ROLL MARKED, IH-427683-C1

$

$

Not available

19

Cub Cadet IH-210511-R1

CLAMP, FUEL LINE HOSE

$

$

Not available

20

Cub Cadet IH-55302-C1

CLAMP, FUEL LINE HOSE

$

$

Currently unavailable

Cub Cadet IH-539944-R1

SCREW, 10-32 X 5/16 HEX-HD TAP

$

$

Currently unavailable

21

Cub Cadet IH-63381-C1

BUSHING, HEAT DEFLECTOR

$

$

Currently unavailable

Cub Cadet IH-539916-R91

KIT, CARBURETOR OVERHAUL
(Superseded to BS-394698)

$32.99

$

In Stock, Qty 14

0
