85 (0340026U) - International Harvester 32" Riding Mower (1975 & After) Steering Mechanism (S/N 70001 & Below) Parts Diagram

32" Riding Mower

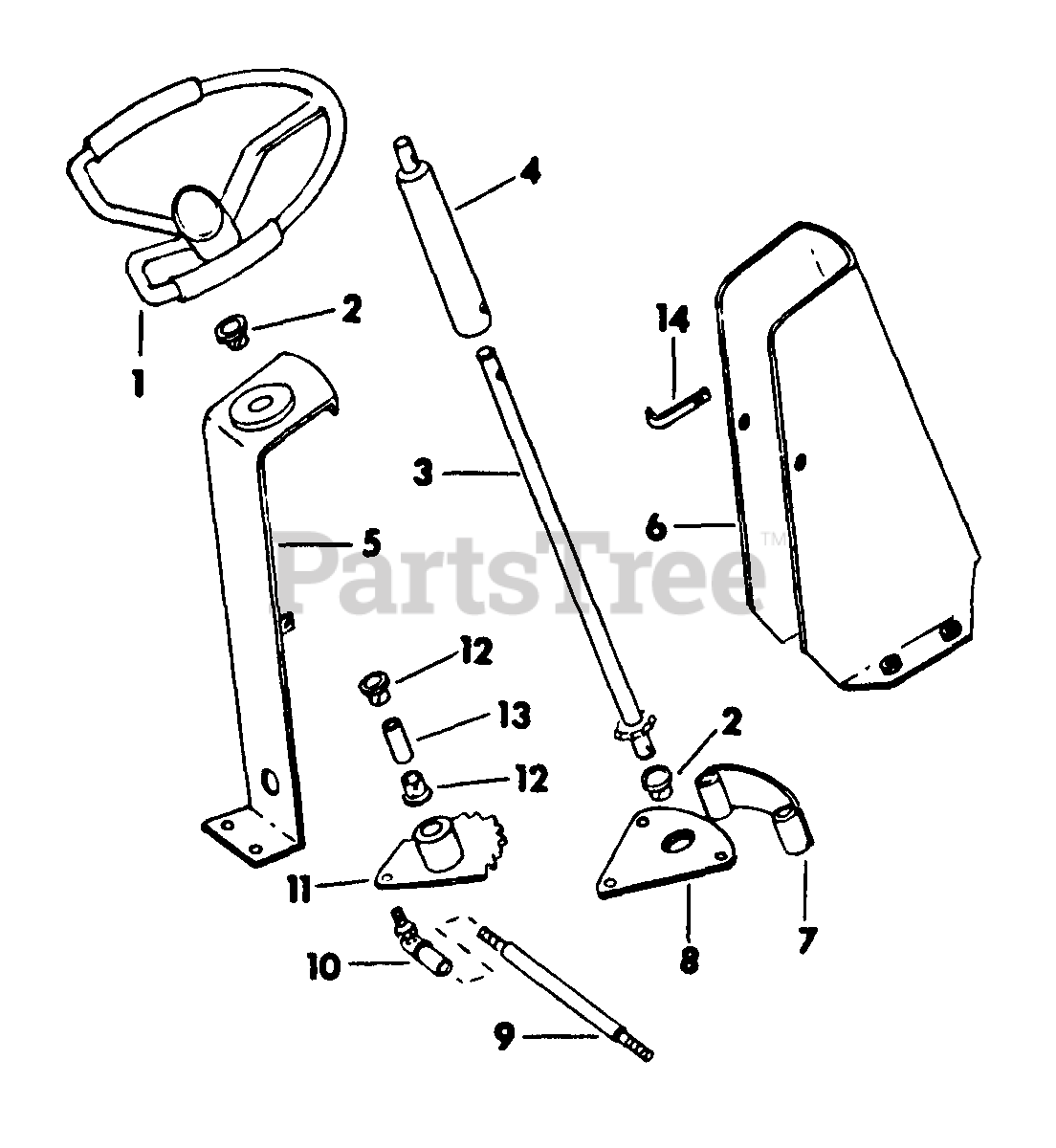

Steering Mechanism (S/N 70001 & Below) Parts Diagram

  • Title

1

Cub Cadet IH-549077-R1

WHEEL, STEERING

Note: ORDER IH-1254837-C1

$

$

Not available

1

Cub Cadet IH-1254837-C1

WHEEL, STEERING

$

$

Not available

Cub Cadet IH-1254836-C1

PRODUCT GRAPHIC, STEERING WHEEL INSERT

$

$

Currently unavailable

Cub Cadet IH-19479-R1

PIN, 1/4 X 2 HVY PLN CLD SPR

$

$

Currently unavailable

2

Cub Cadet IH-185062-R1

BEARING, STEERING SHAFT

$

$

Not available

3

Cub Cadet IH-106764-C2

SHAFT ASSY, LOWER STEERING

Note: REPLACES IH-549080-R1

$

$

Not available

Cub Cadet IH-23670-R1

PIN, 1/4 X 1-3/8 HV COILED SPRING
(Superseded to 915-3000)

$

$

Not available

Cub Cadet IH-108635

PIN, 1/8 X 1-1/8 COT
(Superseded to 914-0470)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-16066

WASHER, 25/32 X 1-1/2 X 16 GA

$

$

Currently unavailable

4

Cub Cadet IH-549078-R2

SHAFT, UPPER STEERING

$

$

Not available

5

Cub Cadet IH-487980-R1

SUPPORT ASSY. STEERING

$

$

Currently unavailable

Cub Cadet IH-179839

SCREW, 3/8-16 X 1 HEX-HD CAP

$

$

Not available

6

Cub Cadet IH-549094-R91

SHROUD ASSY STEERING SUPPORT

$

$

Not available

Cub Cadet IH-378341-R1

WASHER, SPRING

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16 TYPE 5
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-180073

BOLT, 5/16 X 1/2 TYPE 5
(Superseded to 710-3039)

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, 9/32 X 5/8 X .065 ZND
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet IH-487987-R1

COVER, FRT STEERING GEAR

$

$

Currently unavailable

Cub Cadet IH-180089

BOLT, 5/16 X 2-1/4 TYPE 5
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

Cub Cadet IH-9413952

NUT, 5/16 PHC P/T LOCK TYPE 5
(Superseded to 712-3046)

$6.99

$

Usually ships in 3-6 days

0

8

Cub Cadet IH-487973-R1

COVER ASSY, STEERING GEAR

$

$

Not available

9

Cub Cadet IH-487985-R1

STUD, DRAG LINK ROD

$

$

Not available

Cub Cadet IH-114494

NUT, 3/8-24 HEX JAM
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

10

Cub Cadet IH-392594-R1

JOINT, 3/8-24 BALL
(Superseded to 923-3018)

$16.99

$

In Stock, Qty 20+

0

Cub Cadet IH-9413243

NUT, 3/8-24 CAD HEX LOCK

$

$

Currently unavailable

11

Cub Cadet IH-487976-R4

GEAR ASSY, STEERING DRAG LINK
(Superseded to 703-0462)

$

$

Not available

Cub Cadet IH-541293-R1

BOLT, STEERING GEAR MTG

$

$

Not available

12

Cub Cadet IH-307920-R1

BEARING, STEERING GEAR
(Superseded to 731-3015)

$

$

Not available

13

Cub Cadet IH-487979-R1

BUSHING, STEERING GEAR DRAG LINK
(Superseded to 911-3056)

$

$

Not available

14

Cub Cadet IH-549091-R1

STOP, PEDAL

$

$

Currently unavailable

Cub Cadet IH-104249

RIVET, 1/4 X 1/2 PLN F/HD SOL

$

$

Currently unavailable
