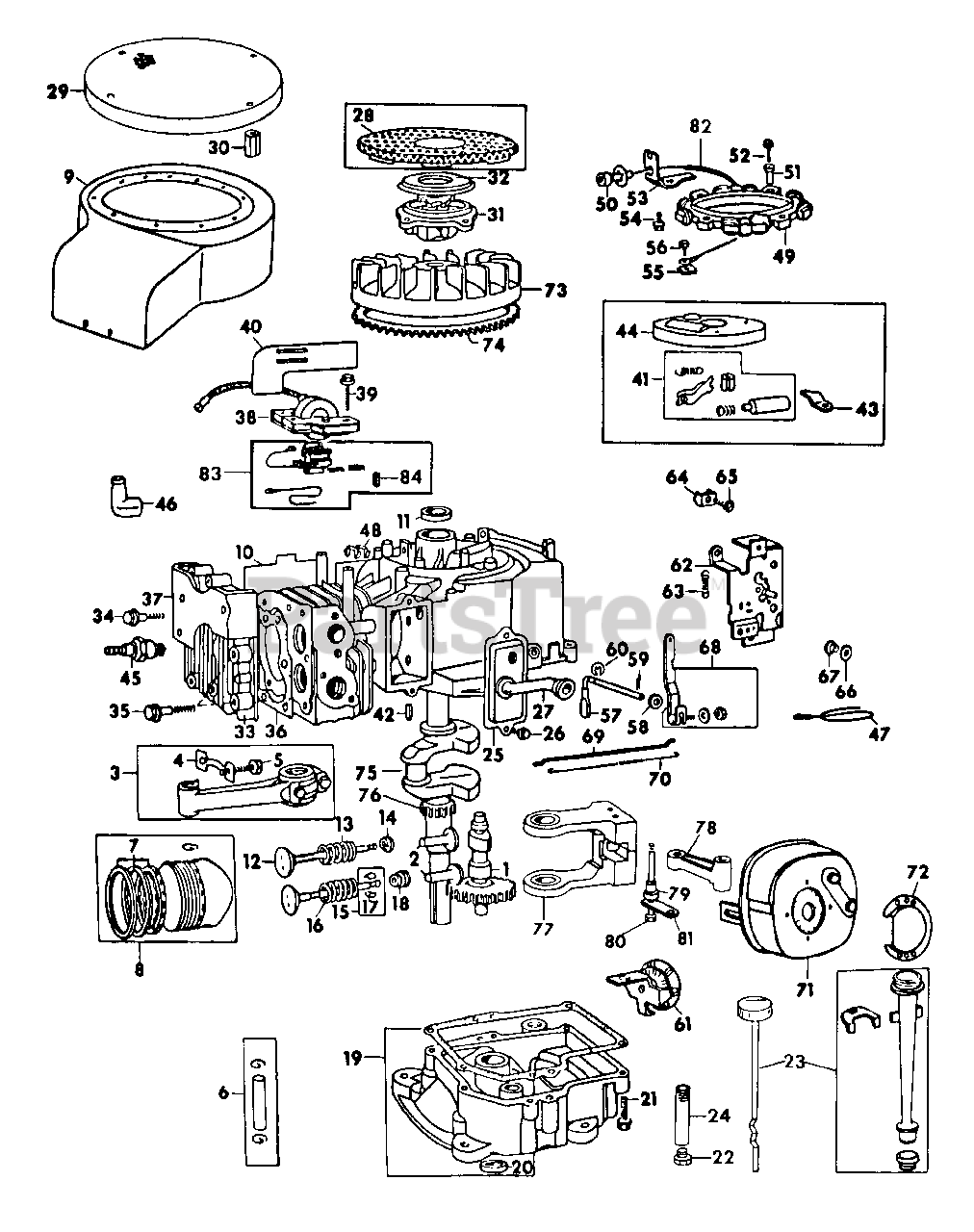

85 (0340023U) - International Harvester 32" Riding Mower (1975 & After) Engine Parts Diagram

32" Riding Mower

Engine Parts Diagram

  • Title

Cub Cadet IH-144414-C91

ENGINE ASSY

Note: REPLACES IH-0117571-C92 BY ALSO ORDERING CABLE, IH-144407-C1

$

$

Not available

Cub Cadet IH-180083

BOLT, 5/16 X 1-1/2 TYPE 5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

Cub Cadet IH-120393

WASHER, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-19277-R1

NUT, 5/16 PLN P/T LOCK TYPE 5

$

$

Currently unavailable

Cub Cadet IH-126095-C91

ENGINE ASSY, SHORT BLOCK

$

$

Not available

1

Cub Cadet IH-126085-C1

CAMSHAFT

$

$

Currently unavailable

2

Cub Cadet IH-549357-R1

TAPPET, VALVE

$

$

Not available

3

Cub Cadet IH-61844-C91

ROD ASSY, CONNECTING STD

$

$

Not available

4

Cub Cadet IH-549364-R1

LOCK, SCREW HEAD

$

$

Not available

5

Cub Cadet IH-549365-R1

SCREW, CONNECTING ROD

$

$

Currently unavailable

6

Cub Cadet IH-549370-R1

PIN, PISTON - STD

$

$

Not available

7

Cub Cadet IH-539663-R1

RING SET, PISTON CHROME - STD
(Superseded to BS-690014)

$

$

Not available

7

Cub Cadet IH-61719-C1

RING SET, PISTON - STD
(Superseded to BS-499921)

$47.99

$

Usually ships in 2-12 days

0

8

Cub Cadet IH-549369-R91

PISTON ASSY, STD
(Superseded to BS-499907)

$

$

Not available

9

Cub Cadet IH-61846-C1

HOUSING, BLOWER

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER, 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

10

Cub Cadet IH-549377-R1

SHIELD, CYLINDER

$

$

Not available

Cub Cadet IH-26091-R1

SCREW, 10-24 X 3/8 ZND HEX-HD W/SPRING LOCKWASHER

$

$

Currently unavailable

11

Cub Cadet IH-549393-R1

SEAL, OIL TOP

$

$

Not available

12

Cub Cadet IH-549394-R1

VALVE, INTAKE
(Superseded to BS-261055S)

$32.99

$

In Stock, only 2 left!

0

13

Cub Cadet IH-549395-R1

SPRING, INTAKE VALVE
(Superseded to BS-65906)

$

$

Not available

14

Cub Cadet IH-549396-R1

RETAINER, INTAKE VALVE
(Superseded to BS-690656)

$

$

Not available

15

Cub Cadet IH-549397-R1

VALVE, EXHAUST

$

$

Not available

16

Cub Cadet IH-549398-R1

SPRING, EXHAUST VALVE

$

$

Not available

17

Cub Cadet IH-549399-R1

RETAINER, ROTO-COIL
(Superseded to BS-494553)

$7.99

$

In Stock, only 2 left!

0

18

Cub Cadet IH-549400-R1

ROTO-COIL, EXHAUST VALVE
(Superseded to BS-691939)

$27.99

$

In Stock, Qty 5

0

19

Cub Cadet IH-539849-R91

SUMP, OIL
(Superseded to BS-392548)

$110.99

$

Usually ships in 2-12 days

0

20

Cub Cadet IH-549410-R1

SEAL, OIL BOTTOM
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet IH-549412-R1

SCREW, SUMP MOUNTING

$

$

Not available

22

Cub Cadet IH-444619

PLUG, 1/4-1B AUTOMOTIVE HEX-HD PIPE -OIL DRAIN-
(Superseded to 751-3001)

$

$

Not available

23

Cub Cadet IH-63576-C1

GAUGE ASSY. OIL LEVEL
(Superseded to BS-392066)

$

$

Not available

24

Cub Cadet IH-549096-R1

PIPE, OIL DRAIN

$

$

Not available

25

Cub Cadet IH-61847-C1

BREATHER, VALVE CHAMBER
(Superseded to BS-495735)

$63.99

$

In Stock, Qty 5

0

26

Cub Cadet IH-549422-R1

SCREW, BRACKET MOUNTING
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

27

Cub Cadet IH-539854-R1

TUBE, BREATHER
(Superseded to BS-692293)

$10.99

$

In Stock, Qty 6

0

28

Cub Cadet IH-549437-R1

SCREEN, REWIND STARTER

Note: USE ONLY IF REQUIRED

$

$

Not available

Cub Cadet IH-450644

SCREW, NO 8 X 3/8 ZNP H/HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER. NO 8 INT TOOTH LOCK

$

$

Currently unavailable

29

Cub Cadet IH-61853-C1

SCREEN, BLOWER HOUSING

$

$

Currently unavailable

Cub Cadet IH-20832-R1

SCREW, NO. 8 X 1/2 ZNP H/HDS L/W MACH

$

$

Currently unavailable

30

Cub Cadet IH-62412-C1

SPACER, BLOWER HOUSING SCREW

$

$

Currently unavailable

31

Cub Cadet IH-549426-R1

HOUSING, REWIND STARTER -CLUTCH-
(Superseded to BS-394897)

$36.99

$

In Stock, only 2 left!

0

32

Cub Cadet IH-61852-C1

COVER, HOUSING

$

$

Currently unavailable

33

Cub Cadet IH-549454-R1

HEAD, CYLINDER

$

$

Not available

34

Cub Cadet IH-60403-C1

SCREW, CYLINDER HEAD - SHORT
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet IH-549456-R1

SCREW, CYLINDER HEAD - LONG

$

$

Not available

36

Cub Cadet IH-549457-R1

GASKET, CYLINDER HEAD
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 20+

0

37

Cub Cadet IH-61854-C1

COVER, CYLINDER HEAD

$

$

Currently unavailable

38

Cub Cadet IH-549460-R1

ARMATURE ASSY, MAGNETO
(Superseded to BS-298968)

$

$

Not available

39

Cub Cadet IH-549461-R1

SCREW, ARMATURE MOUNTING

$

$

Currently unavailable

40

Cub Cadet IH-549462-R1

GUIDE, AIR

$

$

Not available

41

Cub Cadet IH-549471-R91

KIT, BREAKER POINT & CONDENSER
(Superseded to BS-294628)

Note: ENGINE DATE CODE 820831 & BELOW

$

$

Not available

42

Cub Cadet IH-549434-R1

KEY, FLYWHEEL
(Superseded to BS-222698S)

Note: ENGINE DATE CODE 820831 & BELOW

$2.99

$

In Stock, Qty 20+

0

43

Cub Cadet IH-549466-R1

CLAMP, CONDENSER

Note: ENGINE DATE CODE 820831 & BELOW

$

$

Currently unavailable

Cub Cadet IH-450644

SCREW, 8-32 X 3/8 ZND HEX-HD MACH

$

$

Currently unavailable

Cub Cadet IH-138530

WASHER, NO & ZND INT-TOOTH LOCK

$

$

Currently unavailable

44

Cub Cadet IH-539860-R1

COVER, BREAKER POINT

Note: ENGINE DATE CODE 820831 & BELOW

$

$

Not available

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 ZND HEX-WASHER-HD

$

$

Not available

45

Cub Cadet IH-RCJ8

PLUG, RESISTOR SPARK -CHAMPION-
(Superseded to 759-3331)

$3.99

$

In Stock, only 2 left!

0

46

Cub Cadet IH-267627-R1

ELBOW, SPARK PLUG INSULATOR
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 13

0

47

Cub Cadet IH-549892-R1

WIRE ASSY, GROUND

$

$

Not available

48

Cub Cadet IH-539882-R1

CLIP, WIRE

$

$

Currently unavailable

49

Cub Cadet IH-77988-C1

STATOR W/BRACKET, ALTERNATOR
(Superseded to BS-592828)

Note: REPLACES IH-61855-C91 BY ALSO ORDERING CABLE, IH-144407-C1

$124.99

$

Usually ships in 2-12 days

0

50

Cub Cadet IH-61860-C1

DIODE

$

$

Not available

Cub Cadet IH-62413-C1

SPRING, DIODE

$

$

Not available

51

Cub Cadet IH-539883-R1

BUSHING, STATOR

$

$

Not available

52

Cub Cadet IH-539884-R1

SCREW, STATOR MOUNTING
(Superseded to BS-93621)

$

$

Not available

53

Cub Cadet IH-539885-R1

BRACKET, FUSE

Note: USED ONLY W/STATOR, IH-61855-C91

$

$

Not available

54

Cub Cadet IH-549422-R1

SCREW BRACKET MOUNTING
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

Cub Cadet IH-16547-R1

WASHER. .203 X .500 X .041 ZND

$

$

Currently unavailable

55

Cub Cadet IH-539587-R1

RETAINER

$

$

Currently unavailable

56

Cub Cadet IH-539888-R1

SCREW, 8-32 X 3/8 HEX-HD
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 9

0

57

Cub Cadet IH-539879-R1

CRANK, GOVERNOR

$

$

Currently unavailable

58

Cub Cadet IH-549898-R1

WASHER, GOVERNOR CRANK

$

$

Currently unavailable

59

Cub Cadet IH-549899-R1

COTTER, GOVERNOR CRANK
(Superseded to BS-93306)

$

$

Not available

60

Cub Cadet IH-268552-R1

RETAINER, GOVERNOR CRANK
(Superseded to BS-93307)

$5.99

$

In Stock, only 3 left!

0

61

Cub Cadet IH-539873-R1

GEAR, GOVERNOR

$

$

Not available

62

Cub Cadet IH-539874-R1

PLATE, GOVERNOR

$

$

Not available

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 ZND HEX-WASHER-HD CAP

$

$

Not available

Cub Cadet IH-172374

SCREW, 10-32 X 3/8 HEX-HD TAP.
(Superseded to 710-0432)

$

$

Not available

63

Cub Cadet IH-539875-R1

SPRING. GOVERNOR

$

$

Not available

64

Cub Cadet IH-549887-R1

CLAMP. CASING
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

65

Cub Cadet IH-549888-R1

SCREW W/LOCKWASHER, HEX-HD
(Superseded to BS-690804)

$

$

Not available

66

Cub Cadet IH-539876-R1

WASHER, INSULATING

$

$

Currently unavailable

67

Cub Cadet IH-539877-R1

COLLAR, INSULATING

$

$

Currently unavailable

68

Cub Cadet IH-539878-R1

LEVER ASSY. GOVERNOR

$

$

Currently unavailable

69

Cub Cadet IH-539880-R1

LINK. GOVERNOR

$

$

Not available

70

Cub Cadet IH-539881-R1

SPRING, GOVERNOR LINK
(Superseded to BS-692207)

$6.99

$

In Stock, only 3 left!

0

71

Cub Cadet IH-58941-C1

MUFFLER
(Superseded to BS-692304)

$34.99

$

In Stock, only 4 left!

0

Cub Cadet IH-126082-C1

BOLT, MUFFLER

$

$

Not available

Cub Cadet IH-61725-C1

SHIELD, HEAT

$

$

Not available

72

Cub Cadet IH-58942-C1

DEFLECTOR

$

$

Not available

Cub Cadet IH-26000-R1

SCREW, 8-32 X 3/8 ZND HEX-WASHER-HD CAP

$

$

Not available

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD CAP

$

$

Currently unavailable

Cub Cadet IH-120392

WASHER, .281 X .625 X .05
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

73

Cub Cadet IH-126093-C91

FLYWHEEL & RING GEAR ASSY

$

$

Not available

Cub Cadet IH-549431-R1

WASHER, SPRING

$

$

Currently unavailable

74

Cub Cadet IH-126094-C1

GEAR, FLYWHEEL RING
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

75

Cub Cadet IH-126092-C1

CRANKSHAFT

$

$

Currently unavailable

76

Cub Cadet IH-126090-C1

GEAR, TIMING

$

$

Not available

77

Cub Cadet IH-126091-C1

COUNTERWEIGHT ASSY

$

$

Currently unavailable

78

Cub Cadet IH-126084-C1

LINK, COUNTERWEIGHT

$

$

Not available

79

Cub Cadet IH-126089-C1

SPACER, COUNTERWEIGHT

$

$

Currently unavailable

80

Cub Cadet IH-126081-C1

BOLT, COUNTERWEIGHT

$

$

Currently unavailable

81

Cub Cadet IH-126086-C1

SHIM, SCREW HEAD

$

$

Currently unavailable

82

Cub Cadet IH-223502-C1

CABLE ASSY, DIODE AND CONNECTOR
(Superseded to BS-393814)

$18.99

$

In Stock, only 2 left!

0

83

Cub Cadet IH-107075-C1

MODULE, MAGNETRON IGNITION KIT
(Superseded to BS-394970)

Note: -ENGINE DATE CODE 820901 & ABOVE-

$

$

Not available

84

Cub Cadet IH-107170-C1

KEY, FLYWHEEL

Note: -PART OF MODULE KIT, IH-107075-C1-

$

$

Not available

Cub Cadet IH-549470-R91

KIT, GASKET
(Superseded to BS-299577)

$35.99

$

In Stock, Qty 11

0

GASKET, INTAKE ELBOW

Note: Not Available Seperately

$

$

Not available

GASKET, CRANKCASE

Note: Not Available Seperately

$

$

Not available

GASKET, VALVE COVER

Note: Not Available Seperately

$

$

Not available

Cub Cadet IH-549457-R1

GASKET, CYLINDER HEAD
(Superseded to BS-272163S)

$7.99

$

In Stock, Qty 20+

0

GASKET, CRANKCASE .005 THICK

Note: Not Available Seperately

$

$

Not available

GASKET, CRANKCASE .009 THICK

Note: Not Available Seperately

$

$

Not available

GASKET, FILTER BOWL

Note: Not Available Seperately

$

$

Not available

GASKET, CARBURETOR MOUNTING

Note: Not Available Seperately

$

$

Not available

Cub Cadet IH-61861-C1

GASKET, CARBURETOR MOUNTING
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 6

0

GASKET, INTAKE ELBOW

Note: Not Available Seperately

$

$

Not available
