8481 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HOUSING AND SHROUD GROUP MODEL: 8481 Parts Diagram

Walk-Behind Mower

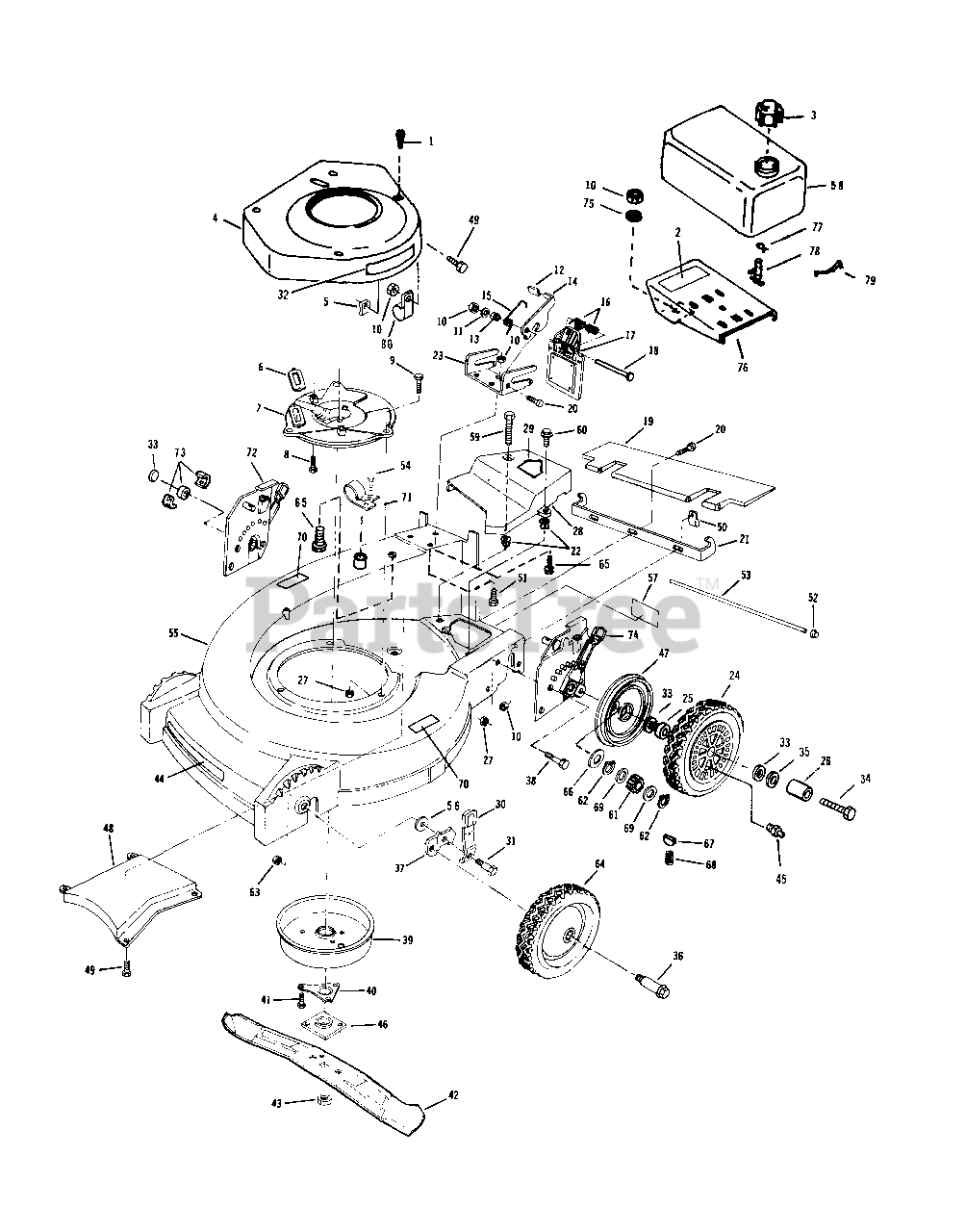

HOUSING AND SHROUD GROUP MODEL: 8481 Parts Diagram

  • Title

1

Lawn-Boy 611395

Screw
(Superseded to 611543)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 611292

Decal-Fuel Mix

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

Fuel Cap

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 1 left!

0

Lawn-Boy 609150

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.49

$

In Stock, Qty 20+

0

Lawn-Boy 607213

Gasket

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 683638

Shroud-Engine

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 145945

Retainer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

Gasket-Exhaust
(Superseded to 93-1233)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 612736

Plate-Muffler

Note: Important Note: Replacement parts may not always be available in matching colors.

$253.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 607601

Screw-Muffler to Block

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

Screw-Muffler Plate to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 602315

Nut-Latch Bracket, Trailing Shield and Tank Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 611485

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 612658

Knob-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611484

Stepped Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611486

Catch-Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611491

Spring-Latch

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611480

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 683039

Door

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611493

Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 611495

Shield-Trailing

Note: Important Note: Replacement parts may not always be available in matching colors.

$49.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 609892

Screw-Latch Bracket and Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 612363

Bracket-Bag Hanger

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 611496

Hinge Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 684052

Wheel and Tire Assembly
(Superseded to 683626)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 608286

Bearing-Wheel
(Superseded to 117-3500)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 16

0

26

Lawn-Boy 612491

Sleeve

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608311

Nut-Height Adjust, Muffler Plate and Guard to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 684055

Cover Belt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 610640

Decal-Blade Contact Warning
(Superseded to 43-8480)

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

30

Lawn-Boy 153444

Knob and Spring Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 610646

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 612745

Decal-Lawn-Boy

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.23

$

Usually ships in 3-6 days

0

33

Lawn-Boy 605255

Washer-Felt-Rear Wheel and Driveshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 612604

Bolt-Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 605256

Washer-Wheel Bolt-Rear

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 603567

Bolt-Shoulder Wheel

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 2 left!

0

37

Lawn-Boy 608833

Bracket-Wheel Height Adjust
(Superseded to 608833-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 610404

Bolt-Height Adjust Assembly
(Superseded to 146209)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 682876

Muffler Cover Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 609786

Support-Crankshaft

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 609471

Screw-Muffler to Muffler Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

42

Lawn-Boy 683680

Blade 20"
(Superseded to 612542-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 603164

Nut
(Superseded to 121-3611)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 11

0

44

Lawn-Boy 612760

Decal-Headliner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 611831

Fitting-Lubrication

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 677525

Collar and Plate Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 3 left!

0

47

Lawn-Boy 612679

Cover-Wheel
(Superseded to 613512)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611497

Baffle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608418

Screw
(Superseded to 46-6811)

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 611602

Clamp-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 606450

Screw-Fuel Tank Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 609975

Nut-Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 610026

Rod-Trailing Shield

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611503

Screw-Clamp to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 683747

Housing-20"

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 608834

Washer-Wheel Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

57

Lawn-Boy 611533

Decal-Caution

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 612433

Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

59

Lawn-Boy 611849

Screw-Hex Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

60

Lawn-Boy 612055

Screw-Belt Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 612064

Pinion

Note: Important Note: Replacement parts may not always be available in matching colors.

$29.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 607676

Retaining Ring

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 6

0

63

Lawn-Boy 603773

Nut-Wheel Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

64

Lawn-Boy 683753

Wheel and Tire Assembly
(Superseded to 683464)

Note: Important Note: Replacement parts may not always be available in matching colors.

$90.99

$

Usually ships in 3-6 days

0

65

Lawn-Boy 609927

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

Usually ships in 3-6 days

0

66

Lawn-Boy 608030

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

Usually ships in 3-6 days

0

67

Lawn-Boy 612066

Key

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

68

Lawn-Boy 612067

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$10.99

$

In Stock, only 1 left!

0

69

Lawn-Boy 612068

Spacer

Note: Important Note: Replacement parts may not always be available in matching colors.

$18.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 612071

Decal-Height Adjust

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

71

Lawn-Boy 612233

Clamp-Cable and Primer to Housing

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

72

Lawn-Boy 683741

Height Adjuster Assembly R.H.
(Superseded to 684172)

Note: Important Note: Replacement parts may not always be available in matching colors.

$315.99

$

Usually ships in 3-6 days

0

73

Lawn-Boy 683195

Bearing and Retainer Asy.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

74

Lawn-Boy 683742

Height Adjuster Assembly-L.H.
(Superseded to 683688)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

75

Lawn-Boy 602945

Washer-Tank Mount

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

76

Lawn-Boy 612797

Bracket-Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$272.99

$

Usually ships in 3-6 days

0

77

Lawn-Boy 312387

Clamp-Fuel Tank

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 8

0

78

Lawn-Boy 677052

Shut-Off Valve and Screen

Note: Important Note: Replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

79

Lawn-Boy 609830

Spring-Fuel Tank Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 6

0

80

Lawn-Boy 611504

Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 603615

Fitting

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146014

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 146015

Washer-Shim

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 1 left!

0
