8481 - Lawn-Boy Walk-Behind Mower (SN: F00000001 - F99999999) (1987) Handle And Grass Catcher Group Model: 8431 Parts Diagram

Walk-Behind Mower

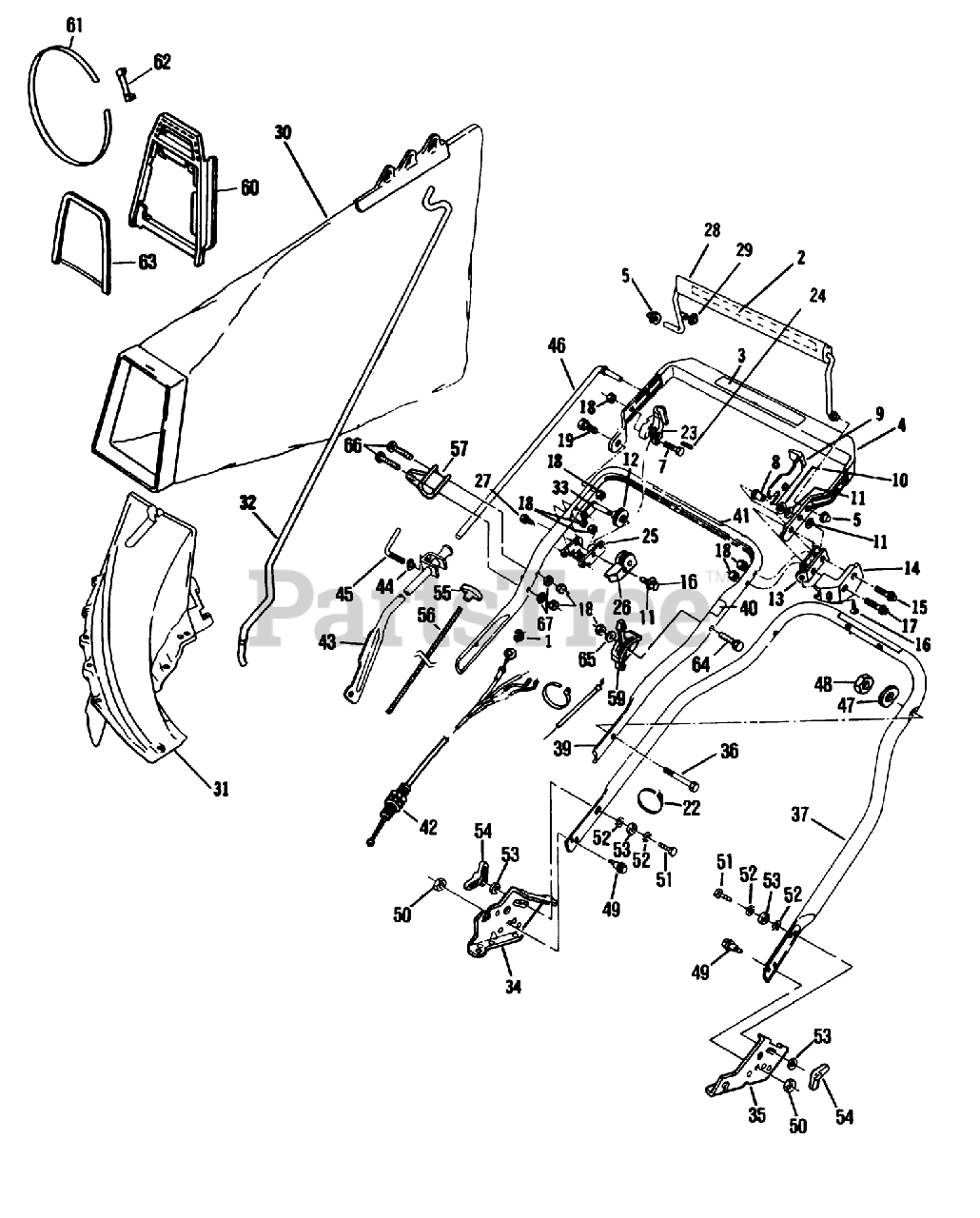

Handle And Grass Catcher Group Model: 8431 Parts Diagram

  • Title

1

Lawn-Boy 611224

RET. RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611244

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611237

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 683755

See Supercession: 682681
(Superseded to 682681)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$237.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 611774

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 611222

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611203

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 612657

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 306359

WASHER M

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 303254

See Supercession: 121-4605
(Superseded to 121-4605)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 612564

PULLEY PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611221

DOWN STOP

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611218

LOCKOUT GUARD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611220

BOLT SHOU

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 606537

SCREW F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 611217

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 611202

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

23

Lawn-Boy 612637

CAM HOFFER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 309301

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611196

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 612638

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 683729

DISCONTINUED
(Superseded to 683728)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$19.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 683745

Grass Bag

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

31

Lawn-Boy 683743

CHUTE ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 607561

ROD GRASSBAG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 611194

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 683598

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 612463

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 612682

DISCONTINUE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612687

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 612688

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 612669

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 682685

CONTROL CABLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 682687

See Supercession: 683812
(Superseded to 683812)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 602992

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 603699

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 611229

CONTROL ROD

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

48

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

49

Lawn-Boy 610357

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 2 left!

0

51

Lawn-Boy 146012

See Supercession: 3230-3
(Superseded to 3230-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 145887

LOCK WASHER LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

53

Lawn-Boy 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

55

Lawn-Boy 612430

HANDLE START UM&D

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 612432

See Supercession: 613773
(Superseded to 613773)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$34.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 145492

WASHER-FLAT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

Usually ships in 3-6 days

0

59

Lawn-Boy 683749

See Supercession: 684042
(Superseded to 684042)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$178.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 612671

CHUTE - ADAPTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

61

Lawn-Boy 612674

See Supercession: 92-1039
(Superseded to 92-1039)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

62

Lawn-Boy 612740

See Supercession: 92-1039
(Superseded to 92-1039)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

63

Lawn-Boy 612830

CHUTE BRACE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

64

Lawn-Boy 612585

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

65

Lawn-Boy 145492

WASHER-FLAT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

Usually ships in 3-6 days

0

66

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

67

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
