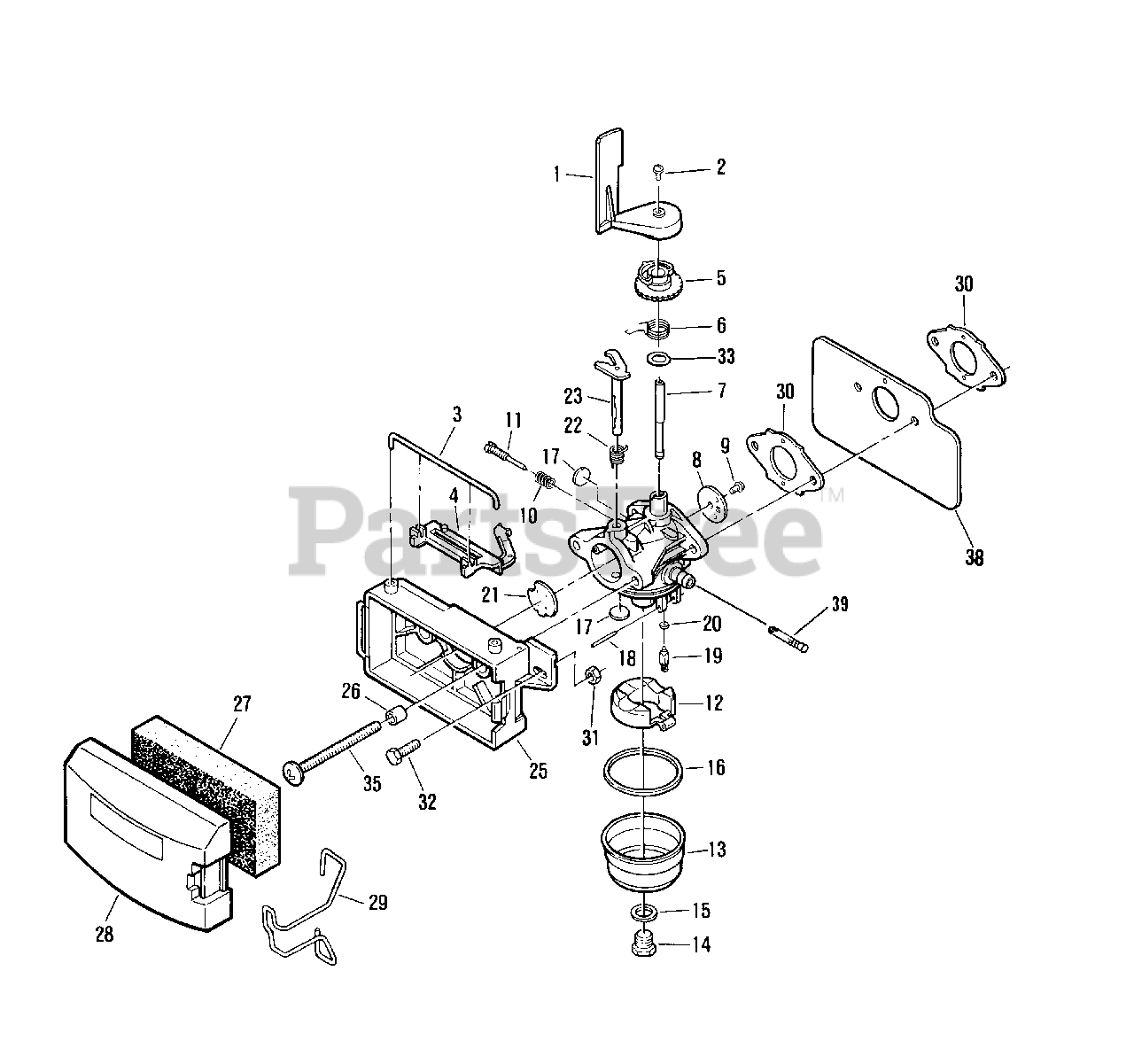

8481 AE - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) CARBURETOR GROUP MODELS: 8481AE Parts Diagram

Walk-Behind Mower

CARBURETOR GROUP MODELS: 8481AE Parts Diagram

  • Title
1

Lawn-Boy 612505

Air Vane

$

$

Not available

2

Lawn-Boy 605522

Screw-Air Valve

$1.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

Retainer-Speed Control Lever

$4.49

$

In Stock, Qty 15

0

4

Lawn-Boy 612502

Control Lever-Governor

$

$

Not available

5

$4.49

$

In Stock, only 1 left!

0

6

$7.99

$

In Stock, only 1 left!

0

7

Shaft-Throttle

$

$

Not available

8

Valve-Throttle

$

$

Not available

9

Screw-Throttle Valve

$

$

Not available

10

Spring-Idle Needle

$

$

Not available

11

Needle-Idle

$

$

Not available

12

Lawn-Boy 683783

Kit-Float Assembly

$

$

Not available

13

Bowl-Fuel

$

$

Not available

14

Screw-Bowl Retainer

$

$

Not available

15

Gasket-Bowl Retainer

$

$

Not available

16

Gasket-Fuel Bowl

$

$

Not available

17

Plug-Welch

$

$

Not available

18

Shaft-Float

$

$

Not available

19

Valve-Inlet Needle

$

$

Not available

20

Seat-Valve

$

$

Not available

21

Valve-Choke

$

$

Not available

22

Spring-Choke Return

$

$

Not available

23

Shaft-Choke

$

$

Not available

25

Lawn-Boy 612504

Base-Air Filter

$

$

Not available

26

Lawn-Boy 612503

Spacer-Air Filter Base

$5.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

$5.49

$

In Stock, only 2 left!

0

28

Lawn-Boy 611377

Cover-Air Filter
(Superseded to 93-1231)

$

$

Not available

29

Lawn-Boy 610383

Retainer-Air Filter Cover

$9.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 612574

Gasket-Carburetor to Crankcase Cover

$6.49

$

In Stock, Qty 13

0

31

Lawn-Boy 328712

Nut-Hex (Throttle Cable)
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 314576

Screw (Throttle Cable)

$1.99

$

In Stock, Qty 6

0

33

$4.49

$

In Stock, only 3 left!

0

35

Lawn-Boy 612507

Screw-Carburetor Mounting

$5.49

$

In Stock, only 4 left!

0

38

Lawn-Boy 612790

Heat Shield

$

$

Not available

39

Lawn-Boy 612974

Fuel Filter

$7.99

$

In Stock, Qty 10

0
