8481 AE - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Carburetor Group Models: 6431, 8431, 8481, 8481ae Parts Diagram

Walk-Behind Mower

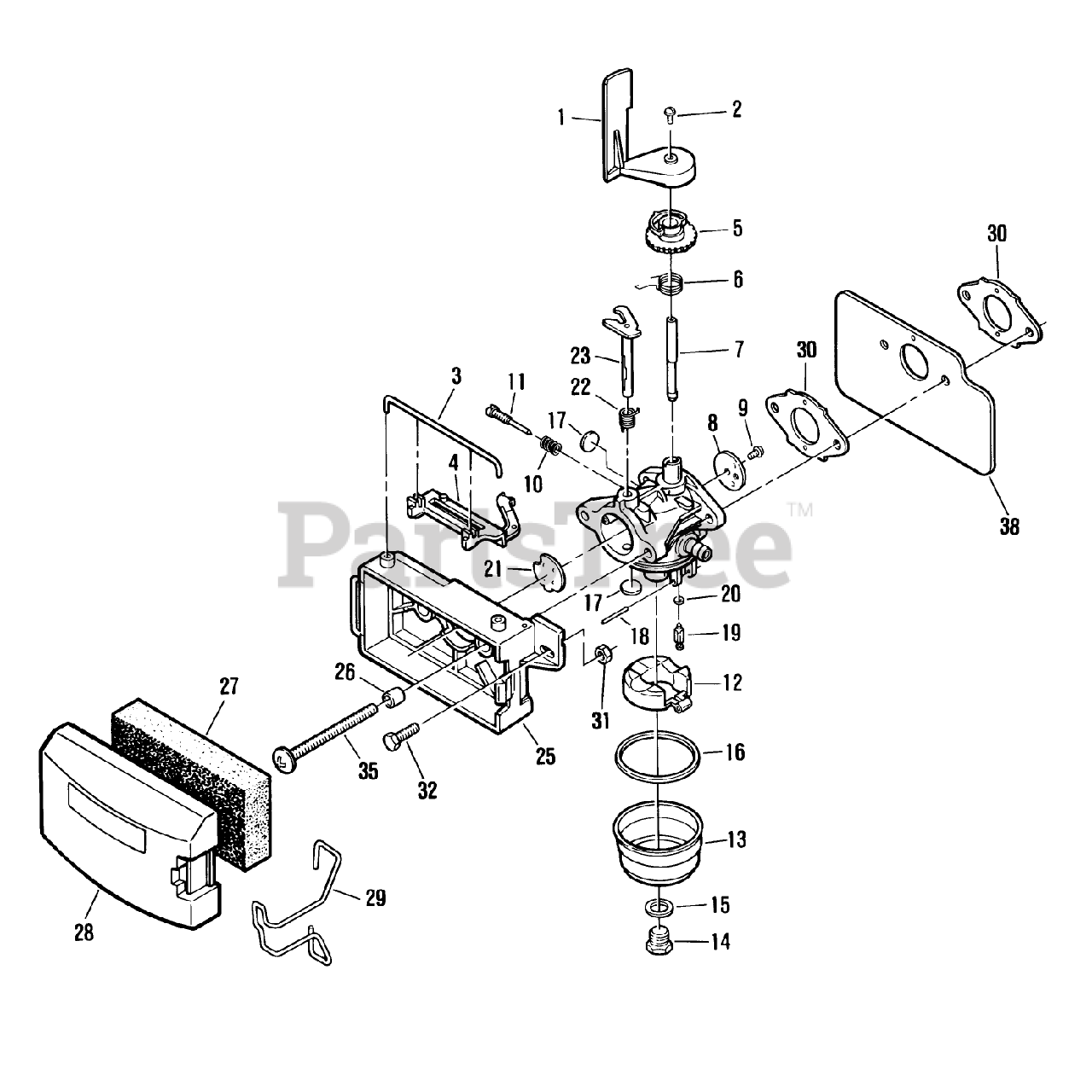

Carburetor Group Models: 6431, 8431, 8481, 8481ae Parts Diagram

  • Title

Lawn-Boy 683632

Carburetor and Air Vane Asy.
(Superseded to 684352)

$360.99

$

Usually ships in 3-6 days

0

1

Lawn-Boy 612505

AIR VANE F

$

$

Not available

2

Lawn-Boy 605522

SCREW F

$1.49

$

In Stock, only 1 left!

0

3

Lawn-Boy 610165

RETAINER

$4.49

$

In Stock, Qty 15

0

4

Lawn-Boy 612502

DISCONTINUED

$

$

Not available

5

Lawn-Boy 612757

COLLAR A/VAVE F

$4.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 612506

See Supercession: 613142
(Superseded to 613142)

$7.99

$

In Stock, only 1 left!

0

Lawn-Boy 683780

THROTTLE KIT

$

$

Not available

7

Shaft-Throttle

$

$

Not available

8

Valve-Throttle

$

$

Not available

9

Screw-Throttle Valve

$

$

Not available

Lawn-Boy 683779

DISCONTINUED

$

$

Not available

10

Spring-Idle Needle

$

$

Not available

11

Needle-Idle

$

$

Not available

12

Lawn-Boy 683783

DISCONTINUED

$

$

Not available

Lawn-Boy 683782

BOWL KIT S

$62.99

$

Usually ships in 3-6 days

0

13

Bowl-Fuel

$

$

Not available

14

Screw-Bowl Retainer Kit-Gasket

$

$

Not available

Lawn-Boy 683778

GASKET KIT S

$7.99

$

Usually ships in 3-6 days

0

15

Gasket-Bowl Retainer

$

$

Not available

16

Gasket-Fuel Bowl

$

$

Not available

Lawn-Boy 683777

REPAIR KIT S

$

$

Not available

17

Plug-Welch

$

$

Not available

18

Shaft-Float

$

$

Not available

19

Valve-Inlet Needle

$

$

Not available

20

Seat-Valve Kit-Gasket

$

$

Not available

Lawn-Boy 683781

CHOKE KIT S

$51.99

$

In Stock, only 1 left!

0

21

Valve-Choke

$

$

Not available

22

Spring-Choke Return

$

$

Not available

23

Shaft-Choke

$

$

Not available

25

Lawn-Boy 612504

DISCONTINUED

$

$

Not available

26

$5.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 609493

See Supercession: 107-4621
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 6

0

28

Lawn-Boy 611377

See Supercession: 93-1231
(Superseded to 93-1231)

$

$

Not available

29

Lawn-Boy 610383

RETAINER-COVER, FILTER

$9.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 612574

GASKET CARB S

$6.49

$

In Stock, Qty 13

0

31

Lawn-Boy 306531

See Supercession: 3217-26
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 612500

Screw (Throttle Cable)

$

$

Currently unavailable

Lawn-Boy 612784

GAS LINE

$10.99

$

Usually ships in 3-6 days

0

35

$5.49

$

In Stock, only 4 left!

0

Lawn-Boy 612781

GAS LINE

$12.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 612790

DISCONTINUED

$

$

Not available
