848 E (122-848E100) - Cub Cadet Walk-Behind Mower Engine (1992) B&S 5 HP Starter Ass'y - Rewind Parts Diagram

Walk-Behind Mower Engine

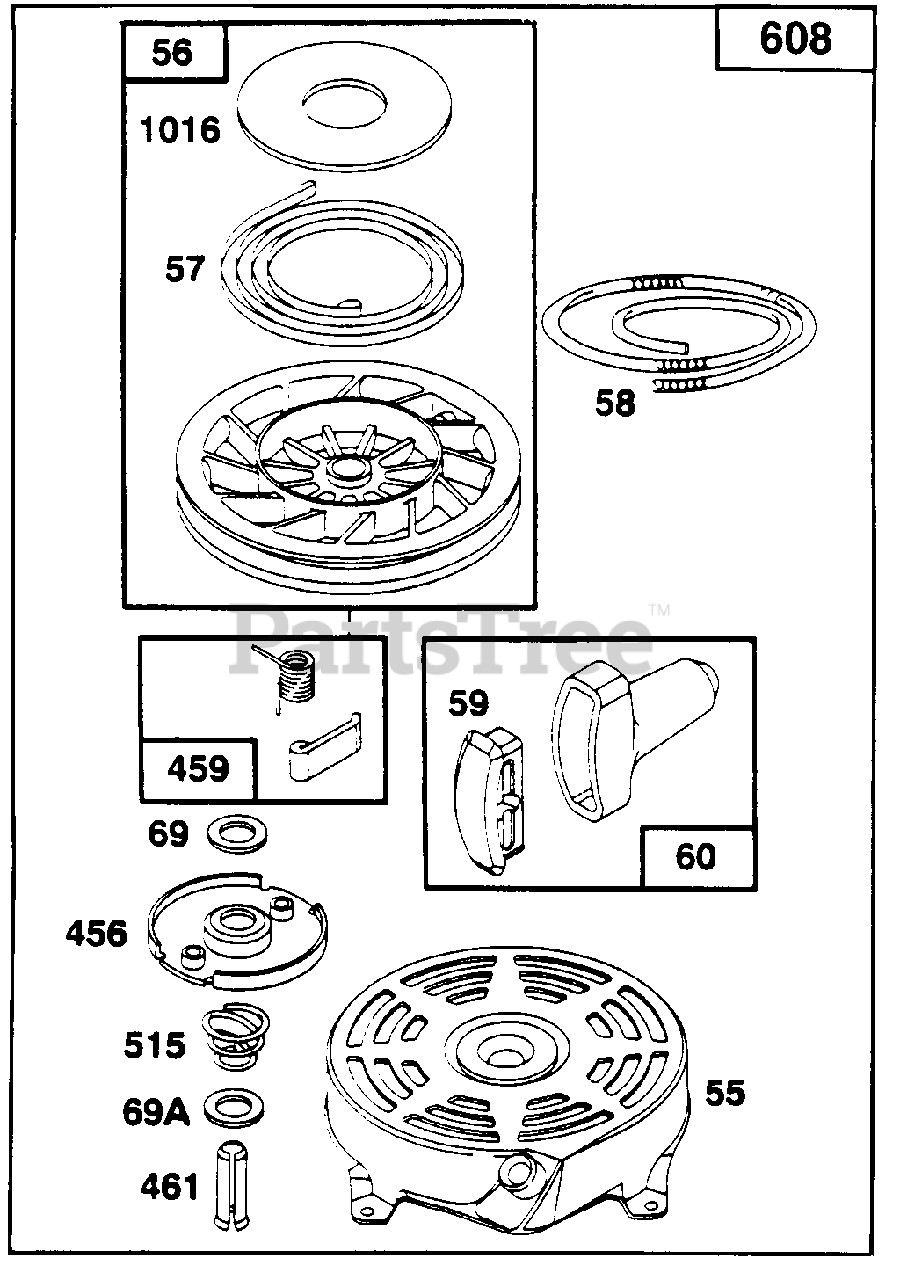

B&S 5 HP Starter Ass'y - Rewind Parts Diagram

  • Title

55

Cub Cadet BS-492831

Housing-Rewind Starter

$74.99

$

In Stock, only 1 left!

0

56

Cub Cadet BS-493824

Pulley-Rewind Starter

$

$

Not available

57

Cub Cadet BS-262594

Spring-Rewind Starter
(Superseded to BS-493824)

$

$

Not available

58

Cub Cadet BS-280399

Rope-Rewind Starter (Cut To 88-5/8")
(Superseded to BS-280399S)

$5.99

$

In Stock, Qty 9

0

59

Cub Cadet BS-396892

Insert-Handle

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Handle-Rewind Starter

$4.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-280973

Washer-Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

69A

Cub Cadet BS-224322

Washer-Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

456

Cub Cadet BS-224321

Retainer-Rewind Starter

$8.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-492833

Pawl-Starter

$4.99

$

Usually ships in 2-12 days

0

461

Cub Cadet BS-262626

Pin-Starter

$4.49

$

Usually ships in 2-12 days

0

515

Cub Cadet BS-262625

Spring-Torsion

$6.49

$

Usually ships in 2-12 days

0

608

Cub Cadet BS-493295

Starter Assy.-Rewind
(Superseded to BS-497598)

Note: (BS-94128 Screw-Hex. Hd. BS-92987 Nut-Hex.)

$75.99

$

In Stock, only 2 left!

0

1016

Cub Cadet BS-224278

Cover-Rewind Starter

$3.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-94128

Screw-Hex
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet BS-92987

Nut-Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0
