848 E (121-848E100) - Cub Cadet Walk-Behind Mower Engine (1991) B&S 5 HP 124707-3169-01 Part 3 Parts Diagram

Walk-Behind Mower Engine

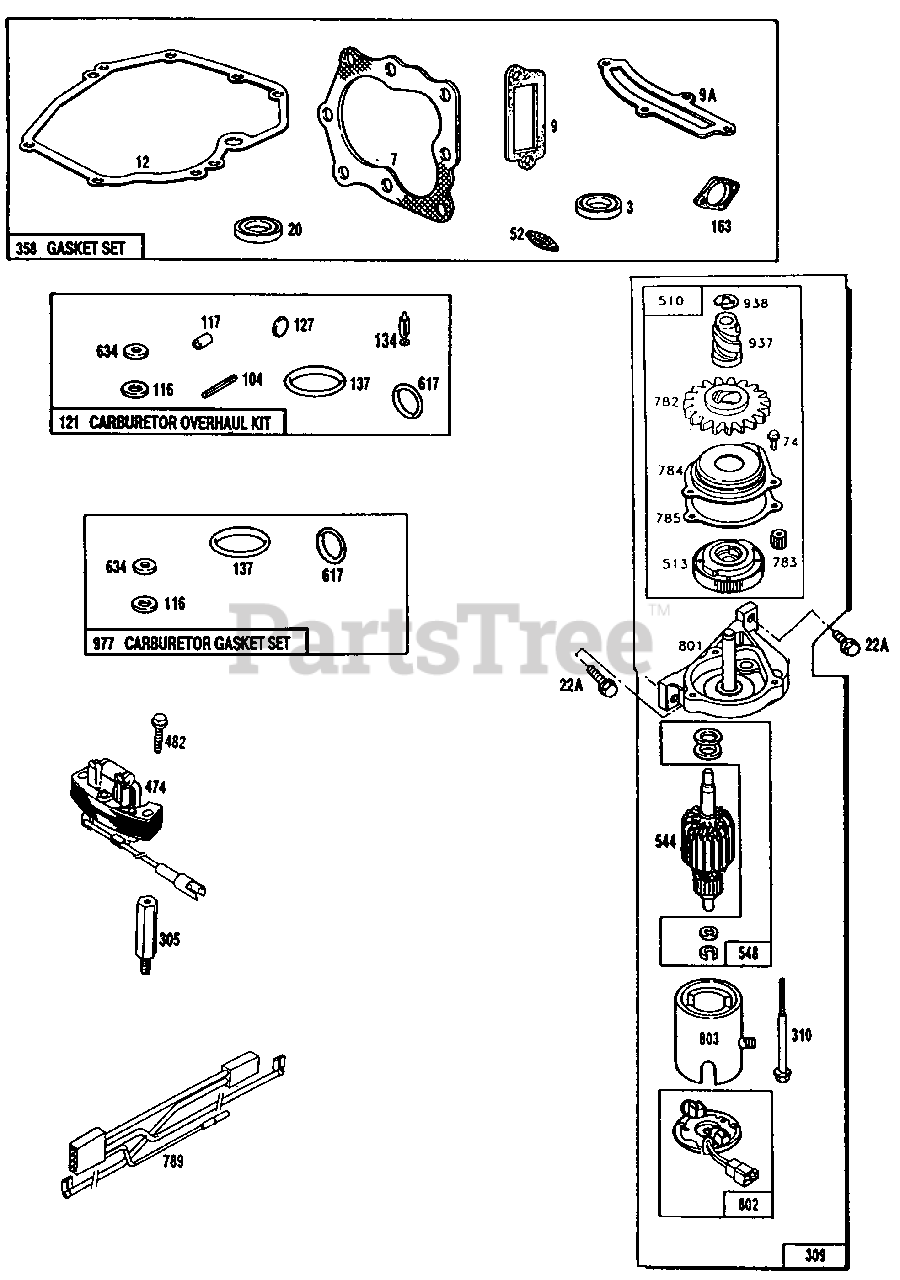

B&S 5 HP 124707-3169-01 Part 3 Parts Diagram

  • Title
3

Cub Cadet BS-393862

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 13

0

7

Cub Cadet BS-272200

Gasket-Cylinder Hd.

$

$

Not available

9

Cub Cadet BS-271904

Gasket-Valve Cover
(Superseded to BS-699833)

$5.49

$

Usually ships in 2-12 days

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

12

Cub Cadet BS-272198

Gasket-Crankcase
(Superseded to BS-692232)

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet BS-399781

Seal-Oil
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 20+

0

22A

Cub Cadet BS-94268

Screw-Hex Head
(Superseded to BS-691127)

$4.49

$

In Stock, Qty 13

0

52

Cub Cadet BS-272199

Gasket-Intake Elbow
(Superseded to BS-272199S)

$4.99

$

In Stock, only 1 left!

0

74

Cub Cadet BS-93490

Screw-Hex Head
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 8

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

116

Gasket-Sealing

$

$

Not available

117

Jet

$

$

Not available

121

Cub Cadet BS-492495

Carburetor Overhaul Kit
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0

127

Plug-Welch

$

$

Not available

134

Cub Cadet BS-398188

Valve-Inlet (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

$

$

Not available

163

Cub Cadet BS-272296

Gasket-Air Cleaner

$4.99

$

In Stock, only 1 left!

0

305

Cub Cadet BS-94513

Screw-Hex Head Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

309

Cub Cadet BS-492336

Motor-Starting
(Superseded to BS-799045)

$198.99

$

Usually ships in 2-12 days

0

310

Cub Cadet BS-94553

Bolt-Starter

$

$

Currently unavailable

358

Cub Cadet BS-493263

Gasket Set

$

$

Not available

474

Cub Cadet BS-492841

Stator-Alternator
(Superseded to BS-691991)

$118.99

$

Usually ships in 2-12 days

0

482

Cub Cadet BS-94512

Screw-Hex Head
(Superseded to BS-691648)

$4.99

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-492780

Drive Set
(Superseded to BS-494147)

$33.99

$

Usually ships in 2-12 days

0

513

Cub Cadet BS-394815

Clutch-Starter

$

$

Not available

544

Cub Cadet BS-492921

Amature-Starter

$

$

Not available

548

Cub Cadet BS-492919

Washer Set

$2.49

$

Usually ships in 2-12 days

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

634

Washer-Shaft

$

$

Not available

782

Cub Cadet BS-280938

Pinion-Starter

$

$

Not available

783

Cub Cadet BS-261606

Gear-Pinion

$

$

Not available

784

Cub Cadet BS-224262

Cover-Gear

$

$

Not available

785

Cub Cadet BS-272201

Gasket-Cover
(Superseded to BS-692352)

$6.49

$

Usually ships in 2-12 days

0

789

Cub Cadet BS-493380

Harness-Wiring

$

$

Not available

801

Cub Cadet BS-492335

Cap-Drive
(Superseded to BS-690782)

$85.99

$

Usually ships in 2-12 days

0

802

$

$

Not available

803

Cub Cadet BS-492920

Housing-Starter

$

$

Not available

937

Cub Cadet BS-280366

Spline-Starter

$

$

Not available

938

Cub Cadet BS-93941

Retainer-Lock
(Superseded to BS-795094)

$6.99

$

In Stock, only 1 left!

0

977

Cub Cadet BS-490937

Gasket Set-Carburetor
(Superseded to BS-498260)

$16.99

$

In Stock, Qty 20+

0
