848 B (120-848B100) - Cub Cadet Walk-Behind Mower (1990) Parts For Rotary Mower Part 1 Parts Diagram

Walk-Behind Mower

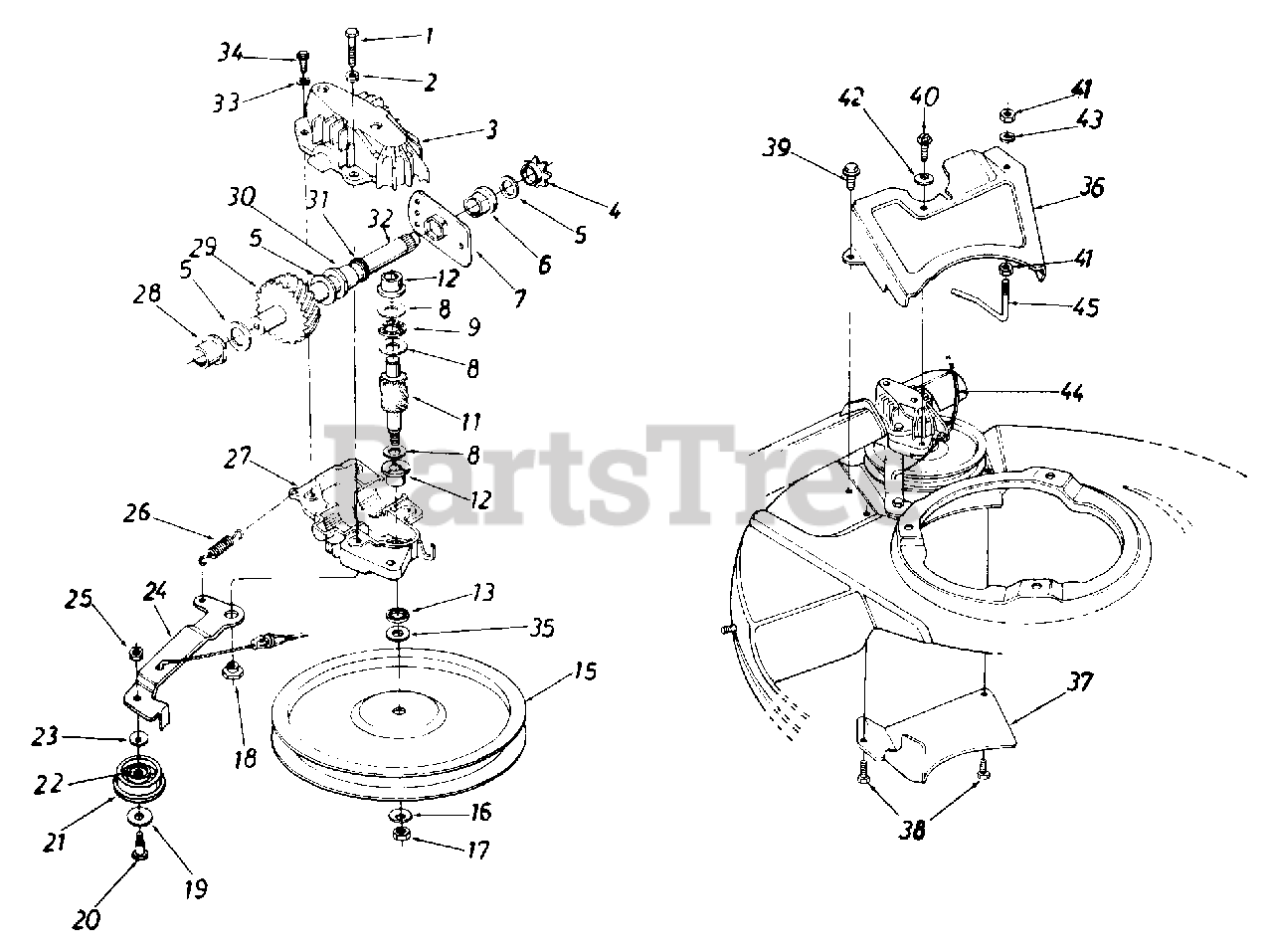

Parts For Rotary Mower Part 1 Parts Diagram

  • Title

1

Cub Cadet 710-1062

SCREW-HEX

$6.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 726-0329

L-Wash. 1/4" I.D.

$

$

Currently unavailable

2

Cub Cadet 726-0329

L-Wash. 1/4" I.D.

$

$

Currently unavailable

2

Cub Cadet 726-0329

L-Wash. 1/4" I.D.

$

$

Currently unavailable

3

Cub Cadet 717-0418A

HOUSING HALF-UPPER

$

$

Not available

4

Cub Cadet 713-0400

SPROCKET-7T

$

$

Not available

5

Cub Cadet 736-0336

WASHER-FL
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

6

Cub Cadet 741-0413

BEARING-HEX FLANGE

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 16500A

BEARING-CUP HEX
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 736-0314

WASHER-THRUST.382 X .684

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 741-0479

BEARING-THRUST

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 717-1216

SHAFT-PINION 11 T
(Superseded to 917-1216)

$

$

Not available

12

Cub Cadet 748-0208A

BEARING-FLANGE

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 721-0212

SEAL-OIL-.375 ID

$

$

Not available

15

Cub Cadet 756-0330A

PULLEY

$

$

Not available

16

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0351

NUT-LH THD-1/4 X 28
(Superseded to 712-04326)

$14.99

$

In Stock, only 1 left!

0

18

Cub Cadet 738-0440

SPACER-SHLD

$5.99

$

In Stock, only 4 left!

0

19

Cub Cadet 736-0344

WASHER-FL .995 X .032

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-0826

SCREW-SHLD

$12.99

$

In Stock, only 1 left!

0

21

Cub Cadet 756-0558

PULLEY
(Superseded to 956-0558)

$11.99

$

In Stock, Qty 5

0

22

Cub Cadet 741-0556

BEARING-NEEDLE

$17.99

$

In Stock, only 4 left!

0

23

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 17052A

BRACKET ASSY-IDLER

$

$

Not available

25

Cub Cadet 712-0138

NUT-HEX 1/4-28

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-0357

SPRING-EXTENSION
(Superseded to 932-0357A)

$4.49

$

In Stock, Qty 13

0

27

Cub Cadet 717-0419A

HOUSING HALF-LOWER

$

$

Not available

28

Cub Cadet 741-0415

BEARING-FLANGE
(Superseded to 941-0415)

$10.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 717-0422

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

30

Cub Cadet 741-0414

BEARING-FLANGE

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 721-0213

SEAL-OIL

$10.99

$

In Stock, Qty 15

0

32

Cub Cadet 738-0607

SHAFT-ASSY W/GEAR
(Superseded to 717-0616A)

$

$

Not available

33

Cub Cadet 736-0722

WASHER-LOCK-#10

$6.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-0436

SCREW-HEX WASH HD TAP
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0410

WASHER-HEX
(Superseded to 936-0410)

$

$

Not available

36

Cub Cadet 17058A

GUARD-BELT
(Superseded to 17058A-0637)

Variations

Cub Cadet 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 17065A

COVER-BELT
(Superseded to 17065A-0637)

Variations

Cub Cadet 17065A-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 710-0896

SCREW-HEX B-TAP 1/4-.62

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

42

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

44

Cub Cadet 746-0710

CABLE-CLUTCH
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

45

Cub Cadet 747-0549

GUARD-BELT

$

$

Not available

Cub Cadet 717-0417B

TRANSMISSION-COMP
(Superseded to 917-0417B)

$234.99

$

Usually ships in 3-6 days

0
