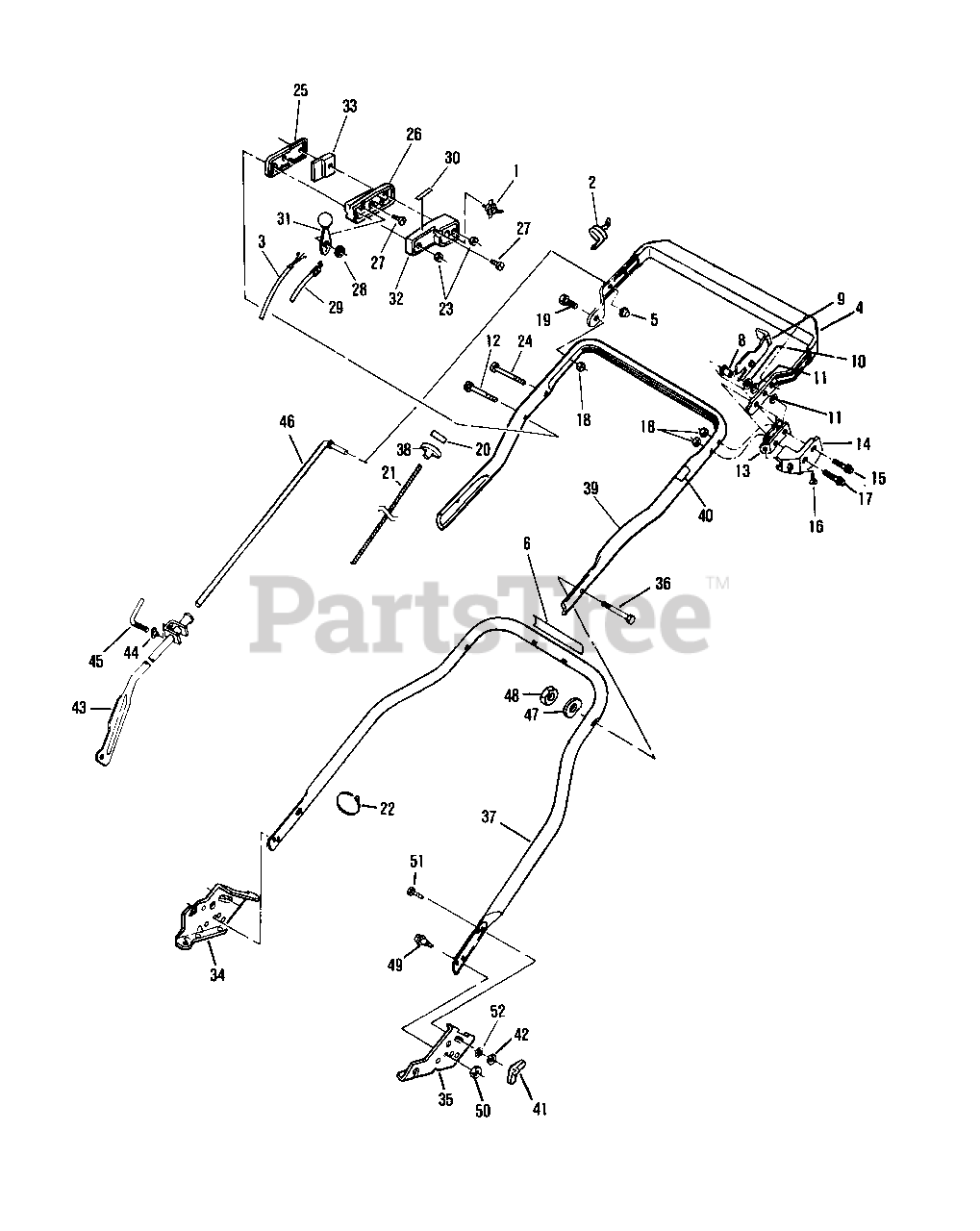

8461 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HANDLE AND GRASS CATCHER GROUP MODEL: 8461 Parts Diagram

Walk-Behind Mower

HANDLE AND GRASS CATCHER GROUP MODEL: 8461 Parts Diagram

  • Title

1

Lawn-Boy 683847

Switch-ON-OFF

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612867

Rope Guide

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 683758

Wiring Harness

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 683811

Top Handle and Grip Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 612878

Decal

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611203

Spacer-Flanged

Note: Important Note: Replacement parts may not always be available in matching colors.

$42.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 612657

Lever-Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 306359

Washer-Plain

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

11

Lawn-Boy 303254

Washer-Spring
(Superseded to 121-4605)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 1 left!

0

12

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611221

Down-Stop

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 612639

Guard-Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611220

Bolt-Shoulder

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 606537

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0

17

Lawn-Boy 611217

Bolt-Shoulder-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 611202

Bolt-Shoulder-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 612824

Clip-Rope Insert

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 10

0

21

Lawn-Boy 612432

Rope
(Superseded to 613773)

Note: Important Note: Replacement parts may not always be available in matching colors.

$34.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, only 2 left!

0

23

Lawn-Boy 611258

Nut-Hex Centerlock

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 612866

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 611777

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$32.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 612633

Case-Throttle Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

28

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 612588

Cable Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$60.99

$

In Stock, only 4 left!

0

30

Lawn-Boy 612643

Decal-Throttle Control
(Superseded to 612698)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 683663

Lever/Knob

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 612863

Case-Throttle-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 612703

Escutcheon Plate

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 683598

Bracket-Handle-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

35

Lawn-Boy 612463

Bracket-Handle-L.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 611205

Screw
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 612682

Handle Section-Bottom

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

38

Lawn-Boy 612825

Handle
(Superseded to 81-1630)

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 612828

Handle Section-Center

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

40

Lawn-Boy 612688

Decal-Drive Lockout

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 607544

Wing Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

In Stock, only 4 left!

0

42

Lawn-Boy 145875

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 683812

Control Lever Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 602992

Nut-Control Lever Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 603699

Lever-Rod Clamp

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 611229

Rod-Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$81.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 609739

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 8

0

48

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

49

Lawn-Boy 610357

Bolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 610358

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 12

0

51

Lawn-Boy 146012

Screw
(Superseded to 3230-3)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

52

Lawn-Boy 145887

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 4 left!

0
