8454 (54A-850-100) - Cub Cadet Compact Tractor Hydraulic Outlet Group Parts Diagram

Compact Tractor

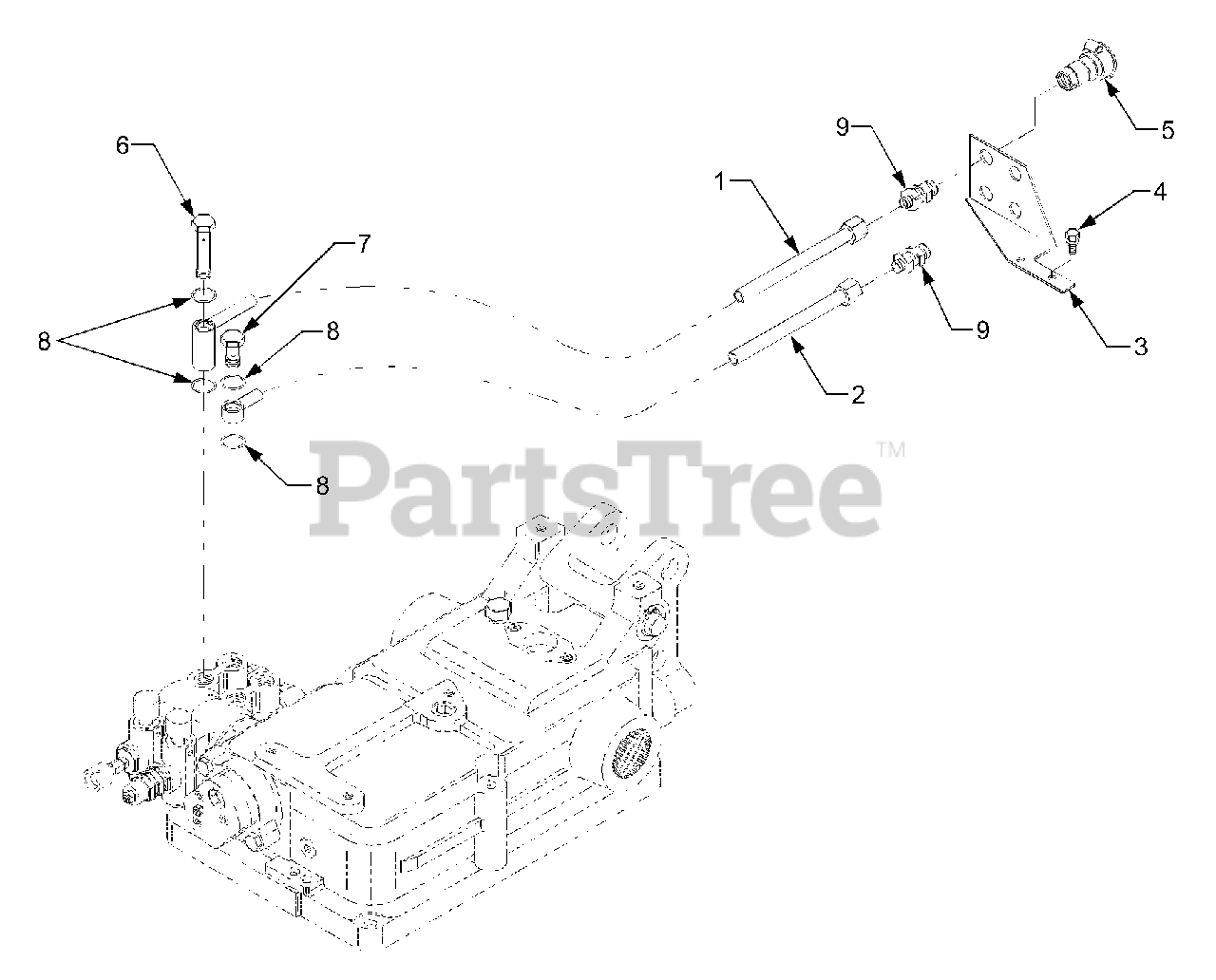

Hydraulic Outlet Group Parts Diagram

  • Title
1

Cub Cadet DD-T4682-90011

Pipe A, Hydraulic
(Superseded to DD-T4682-90012)

$

$

Not available

2

Cub Cadet DD-T4682-90021

Pipe B, Hydraulic

$

$

Not available

3

Cub Cadet DD-T4625-90073

Bracket, Scoket

$

$

Not available

$

$

Not available

5

Cub Cadet DD-T4520-90093

Coupler Socke Ass'y

$

$

Not available

6

Cub Cadet DD-T4682-90051

Bolt 3, Joint

$

$

Not available

7

Cub Cadet DD-T4520-37372

Bolt 2, Joint

$

$

Not available

$

$

Not available

9

Cub Cadet DD-T4682-37581

Connection, Filter

$

$

Not available
