84333-0197-E1 - Briggs & Stratton Horizontal Engine Blower Housing/Shrouds, Electric Starter, Flywheel, Rewind Starter Parts Diagram

Horizontal Engine

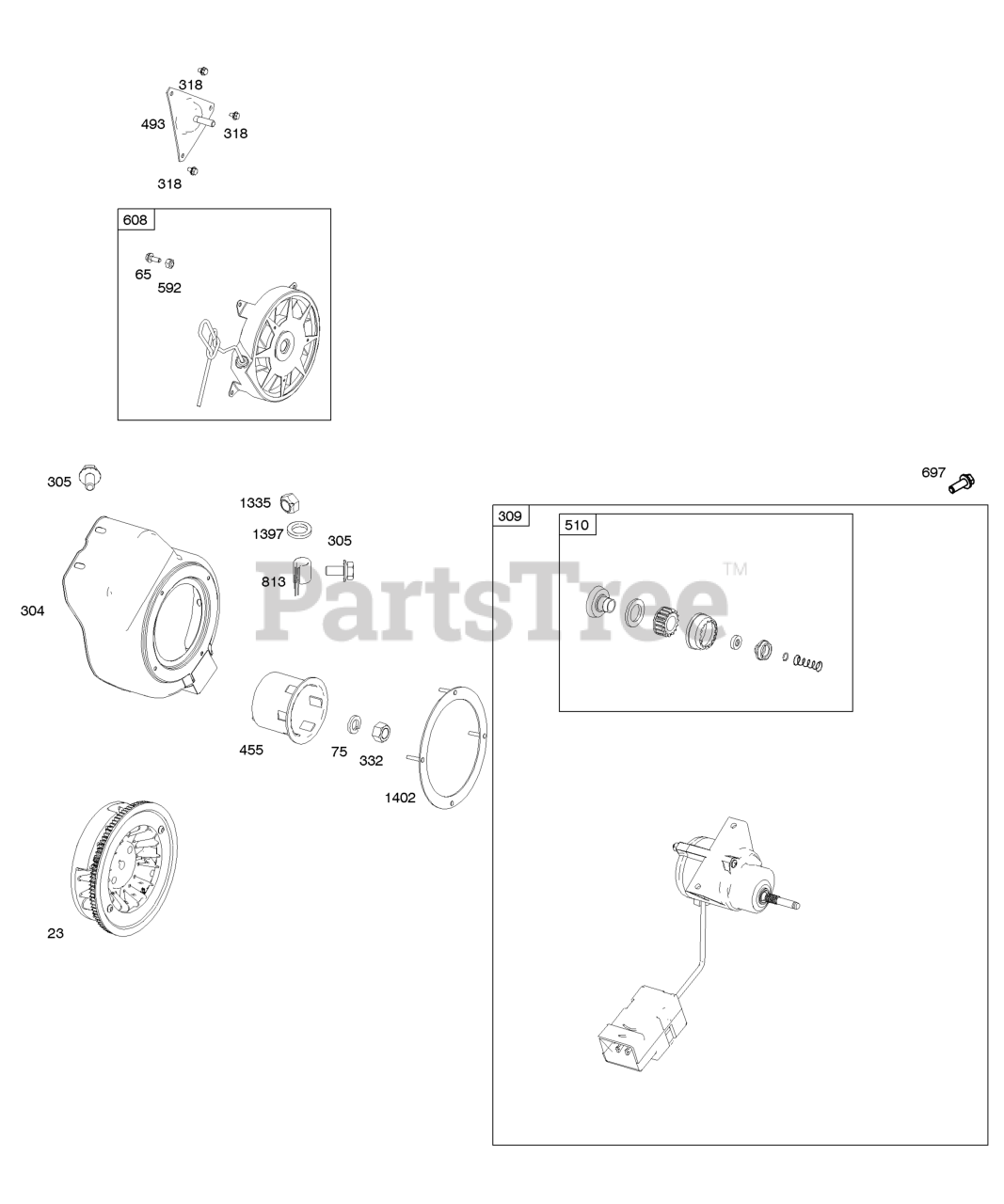

Blower Housing/Shrouds, Electric Starter, Flywheel, Rewind Starter Parts Diagram

  • Title

23

Briggs & Stratton 801246

Flywheel

$

$

Not available

65

Briggs & Stratton 801243

Screw

Note: (Rewind Starter)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 801237

Washer

Note: (Flywheel)

$2.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 801315

Housing-Blower

$81.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 801239

Screw

Note: (Blower Housing)

$3.49

$

Usually ships in 2-12 days

0

309

Briggs & Stratton 801247

Motor-Starter
(Superseded to 801410)

Note: Used Before Code Date 06042500

$

$

Not available

309

Briggs & Stratton 801410

Motor-Starter

Note: Used After Code Date 06042400

$

$

Not available

318

Briggs & Stratton 801241

Screw

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 801238

Nut

Note: (Flywheel)

$5.99

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 801235

Cup-Flywheel

$16.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 801240

Bracket-Mounting

$36.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 801293

Drive-Starter

$

$

Not available

592

Briggs & Stratton 801244

Nut

Note: (Rewind Starter)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 801242

Starter-Rewind
(Superseded to 80010472)

$

$

Not available

697

Briggs & Stratton 801248

Screw

Note: (Drive Cap)

$3.99

$

In Stock, only 2 left!

0

813

Briggs & Stratton 801249

Clamp

$3.49

$

Usually ships in 2-12 days

0

1335

Briggs & Stratton 801269

Nut

Note: (Blower Housing)

$2.99

$

Usually ships in 2-12 days

0

1397

Briggs & Stratton 801270

Washer

Note: (Blower Housing)

$2.99

$

Usually ships in 2-12 days

0

1402

Briggs & Stratton 801272

Support-Ring

$17.99

$

Usually ships in 2-12 days

0
