843250 (132-679G205) - Ranch King Lawn Tractor (1992) Muffler Assembly Parts Diagram

Lawn Tractor

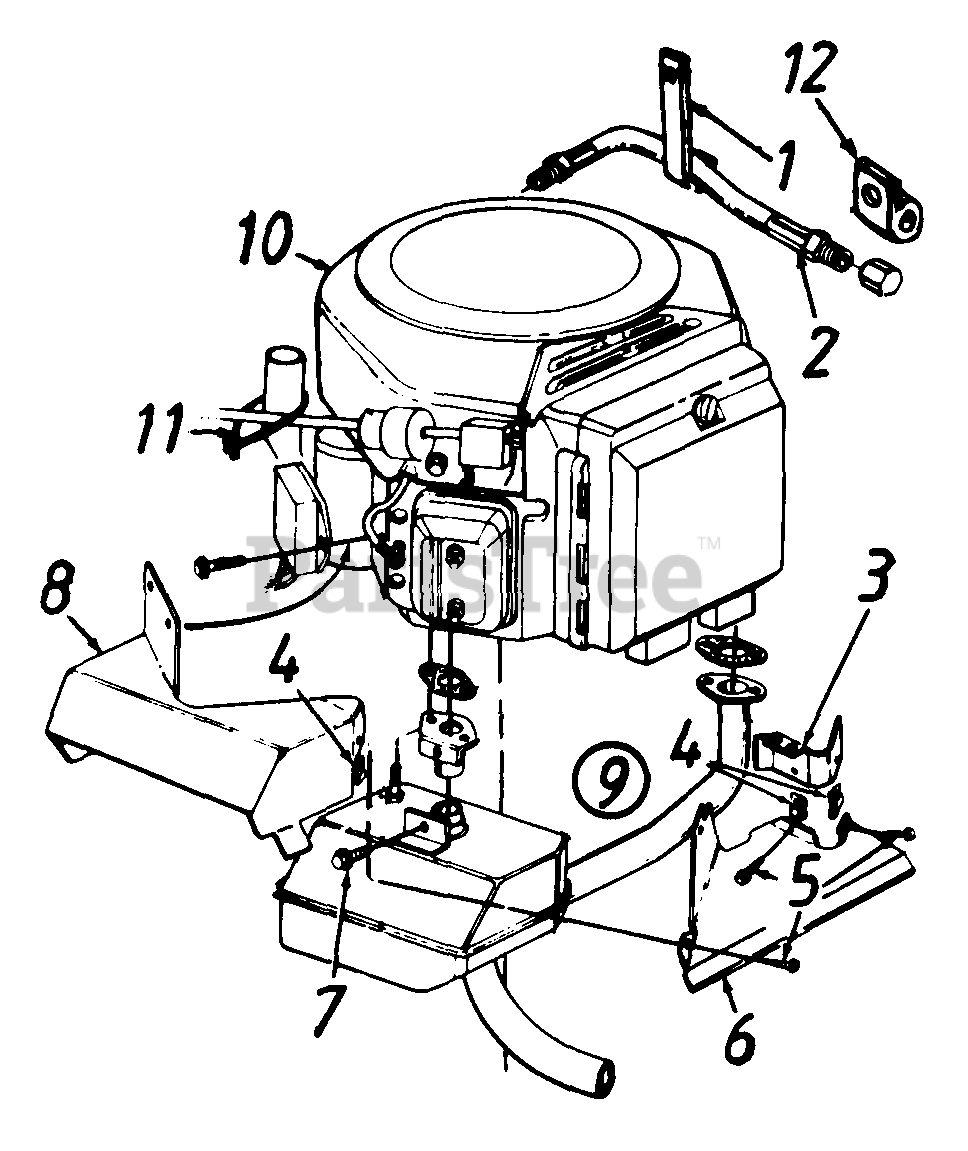

Muffler Assembly Parts Diagram

  • Title

1

MTD 726-3009

Clamp

$

$

Not available

2

MTD 727-0434

Hydraulic Hose 13" Lg.

$

$

Not available

3

MTD 16877

Front Heat Shield Ext.

$

$

Not available

4

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

5

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

6

MTD 16876A

Front Heat Shield

$

$

Not available

7

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 16875A

Muffler Heat Shield

$

$

Not available

9

MTD 751-0469A

Muffler Ass'y. Comp.

$

$

Not available

10

Engine

$

$

Not available

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-0268

Cable Clip

$

$

Not available
