8431 - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) Handle Group Model: 6431 Parts Diagram

Walk-Behind Mower

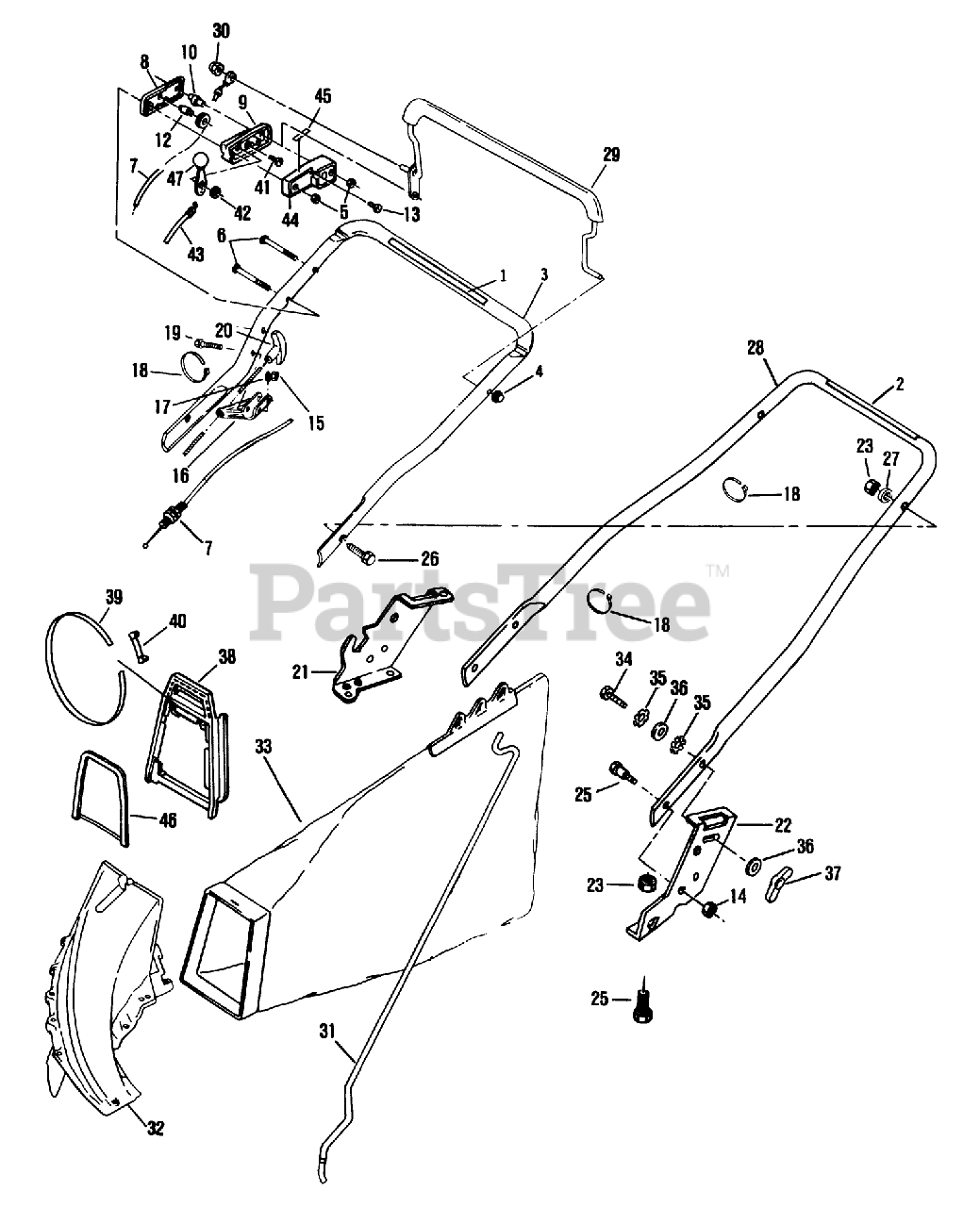

Handle Group Model: 6431 Parts Diagram

  • Title

1

Lawn-Boy 612670

DISCONTINUED
(Superseded to 612651)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612669

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 612683

HANDLE SECTION

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

See Supercession: 32112-11
(Superseded to 32112-11)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

5

Lawn-Boy 611258

NUT C/LOCK E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 683041

CONTROL CABLE WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$114.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611777

OUTER CONTROL CASE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 612633

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611541

COLUMN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612564

PULLEY PL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611542

PIN SKF

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611543

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, Qty 6

0

14

Lawn-Boy 610358

NUT-JAM, LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, only 2 left!

0

15

Lawn-Boy 602315

LOCKNUT E

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 153254

DISCONTINUED
(Superseded to 682684)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 602945

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 320107

See Supercession: 614249
(Superseded to 614249)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 6

0

19

Lawn-Boy 611233

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 612430

HANDLE START UM&D

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 683599

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 612465

DISCONTINUED
(Superseded to 613587)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608311

NUT-LOCK F

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 610404

See Supercession: 146209
(Superseded to 146209)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 610357

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611205

See Supercession: 322-7
(Superseded to 322-7)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 609739

WASHER-CURVED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

28

Lawn-Boy 612682

DISCONTINUE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 683478

CONTROL LEVER ARG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 612168

NUT ACORN

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 607561

ROD GRASSBAG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 683743

CHUTE ASSY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 683745

Grass Bag

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

34

Lawn-Boy 146012

See Supercession: 3230-3
(Superseded to 3230-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 145887

LOCK WASHER LARSON

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0

36

Lawn-Boy 145875

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 607544

NUT-WING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 612671

CHUTE - ADAPTER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612674

See Supercession: 92-1039
(Superseded to 92-1039)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 612740

See Supercession: 92-1039
(Superseded to 92-1039)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 611799

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 612586

WASHER-SPRING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 4 left!

0

43

Lawn-Boy 612588

CABLE THROT WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$50.99

$

In Stock, only 2 left!

0

44

Lawn-Boy 612634

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 612643

DISCONTINUED
(Superseded to 612698)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 612830

CHUTE BRACE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

47

Lawn-Boy 683663

LEVER&KNOB AY WES

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
