84231 - Toro Electric Lift (1971) ELECTRIC LIFT ACCESSORY PARTS LIST-MODEL 8-4231 Parts Diagram

Electric Lift

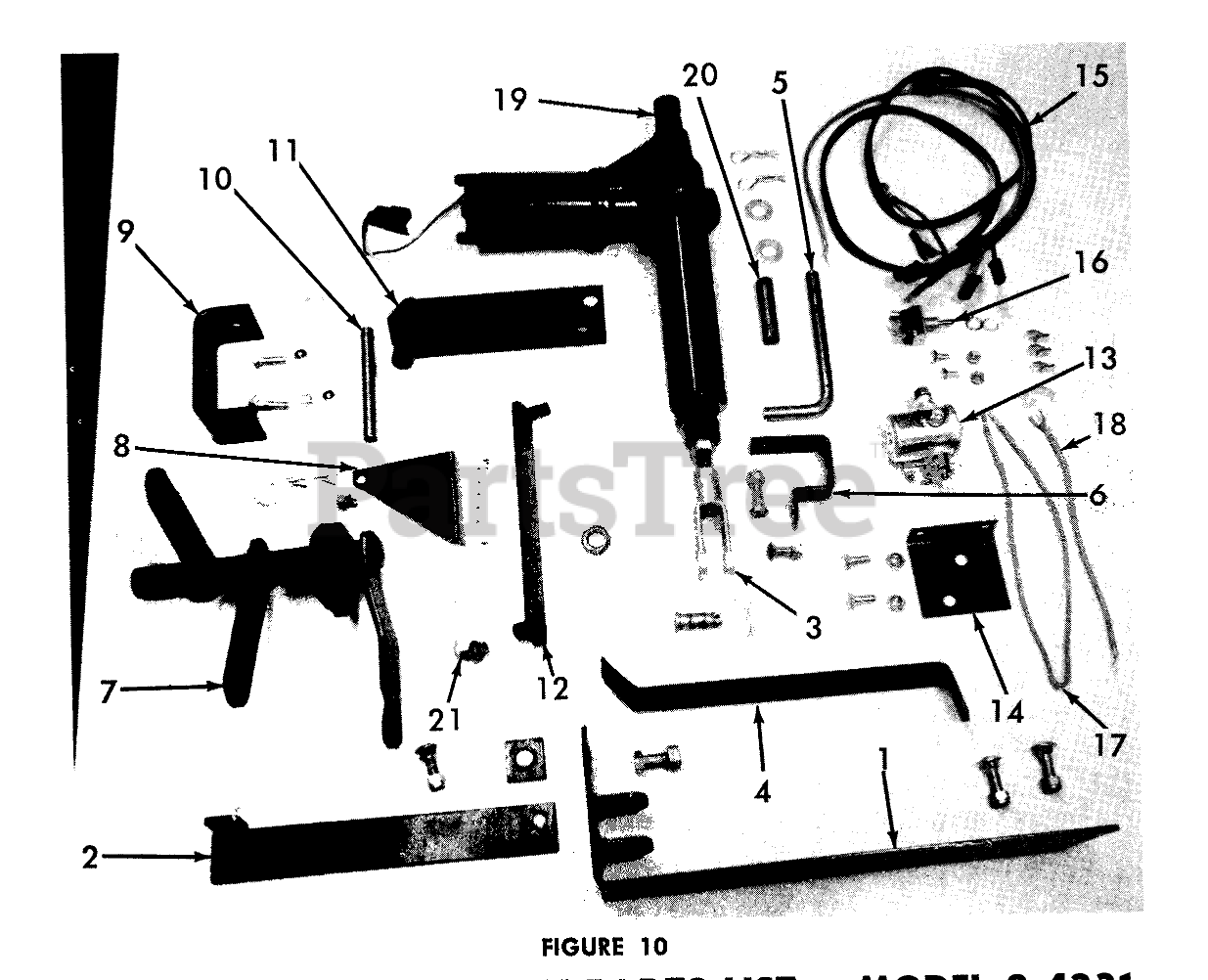

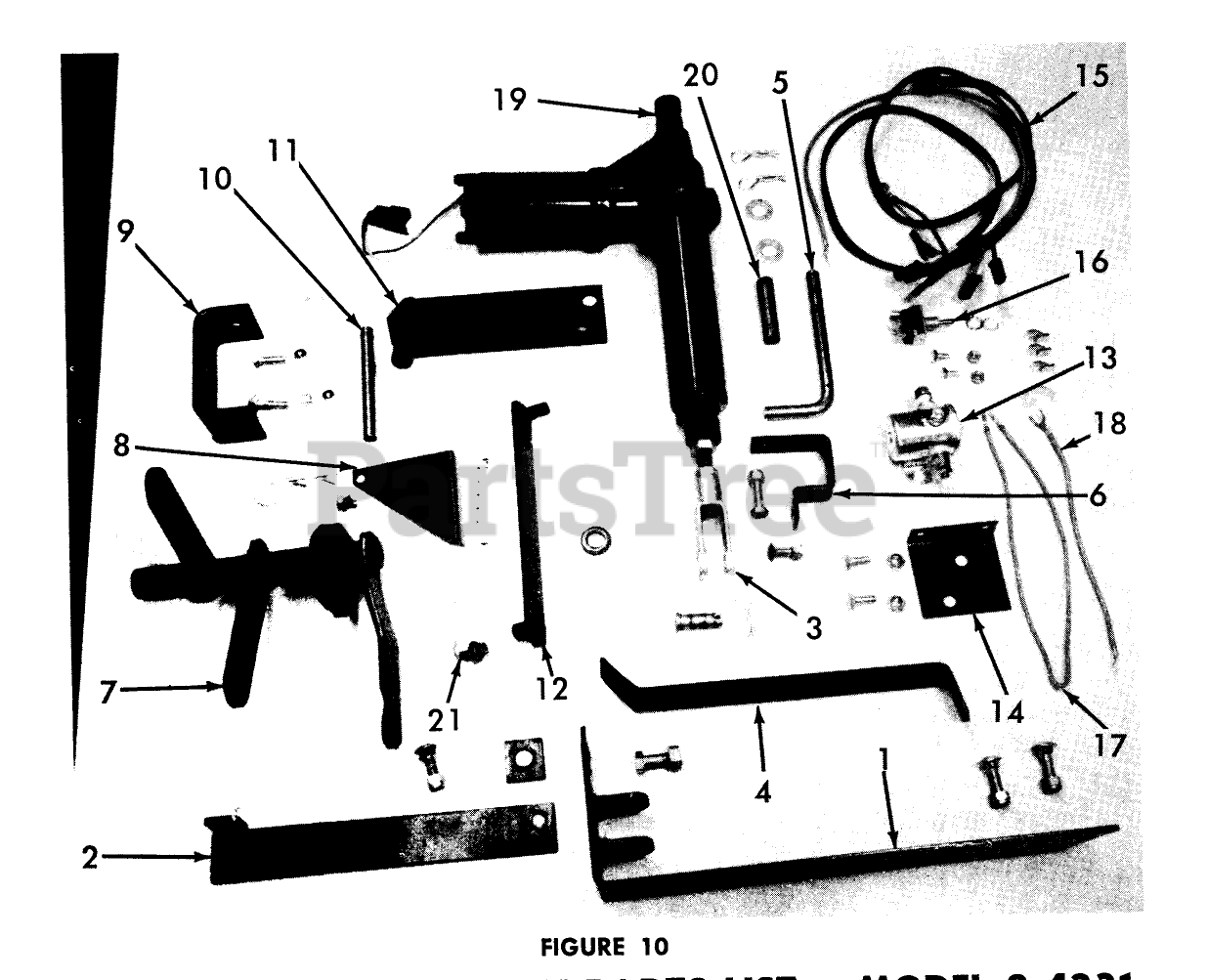

ELECTRIC LIFT ACCESSORY PARTS LIST-MODEL 8-4231 Parts Diagram

  • Title
1

Toro 101620

Assembly-Rear Frame Mounting

$

$

Currently unavailable

Toro 900064-9

Bolt-Carriage 3/8-16 x 1 1/4

$

$

Currently unavailable

2

Toro 101613

Assembly-Bar-Upper Support

$

$

Currently unavailable

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

$

$

Currently unavailable

Toro 908046-4

Bolt, 7/16 14 x 1

$

$

Currently unavailable

Toro 915114-6

Nut 7/16-14 Nylok

$

$

Currently unavailable

Toro 920234-4

Washer

$

$

Currently unavailable

3

Toro 101246

Clevis

$

$

Not available

Toro 101247

Stud-Yoke

$

$

Currently unavailable

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable

Toro 932998-4

Pin-Clevis 1/2 x 1 1/2

$

$

Currently unavailable

4

Toro 101616

Brace-Mounting Frame

$

$

Currently unavailable

Toro 900114-4

Bolt-1/2-13 x 1-1/2 Carr.

$

$

Currently unavailable

Toro 915115-6

Locknut-1/2-13

$

$

Currently unavailable

5

Toro 101784

Pin-Anchor-Rear

$

$

Currently unavailable

Toro 933512-4

Hairpin

$

$

Currently unavailable

6

Toro 101457

Bracket Footrest

$

$

Currently unavailable

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

7

Toro 101497

Assembly-Lift Arm

$

$

Currently unavailable

Toro 933506-4

Hairpen

$

$

Currently unavailable

8

Toro 6628

Indicator Plate

$

$

Not available

Toro 6630

Decal

$

$

Currently unavailable

9

Toro 101284

Bracket-Pivot Mounting

$

$

Currently unavailable

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

Toro 6990

Spacer

$

$

Not available

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

10

Toro 101283

Pin-Pivot

$

$

Currently unavailable

Toro 933505-4

Hairpin

$

$

Currently unavailable

11

Toro 101498

Assembly-Pivot Arm

$

$

Currently unavailable

12

Toro 101619

Assembly-Link

$

$

Currently unavailable

Toro 2731

Washer

$

$

Currently unavailable

Toro 920011-4

Washer

$

$

Currently unavailable

Toro 100472

Washer

$

$

Currently unavailable

Toro 932009-4

Hairpin

$

$

Currently unavailable

13

Toro 101222

Solenoid

$

$

Not available

Toro 908001-4

Bolt, 1/4-x 1/2

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

14

Toro 101628

Bracket-Mounting

$

$

Not available

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

15

Toro 101248

Harness-Wiring

$

$

Not available

Toro 3023

SPEED CLIP

$

$

Not available

Toro 8519

CLIP-WIRE

$

$

Not available

16

Toro 8799

Switch

$

$

Not available

Toro 8785

Nut, Knurled

$

$

Not available

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

Toro 8759

Decal-Lift

$

$

Currently unavailable

17

Toro 101229

Wire-Accessory-to-Solenoid

$

$

Currently unavailable

18

Toro 101228

Wire-Battery-to-Solenoid

$

$

Not available

19

Toro 101438

Assembly-Linear Actuator

$

$

Not available

20

Toro 979236-4

Spacer-1/2 I.D. x 2 1/2

$

$

Currently unavailable

21

Toro 6629

Arm

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable
