84221 - Toro Electric Lift (1973) ELECTRIC LIFT ACCESSORY PARTS LIST-MODEL 8-4221 Parts Diagram

Electric Lift

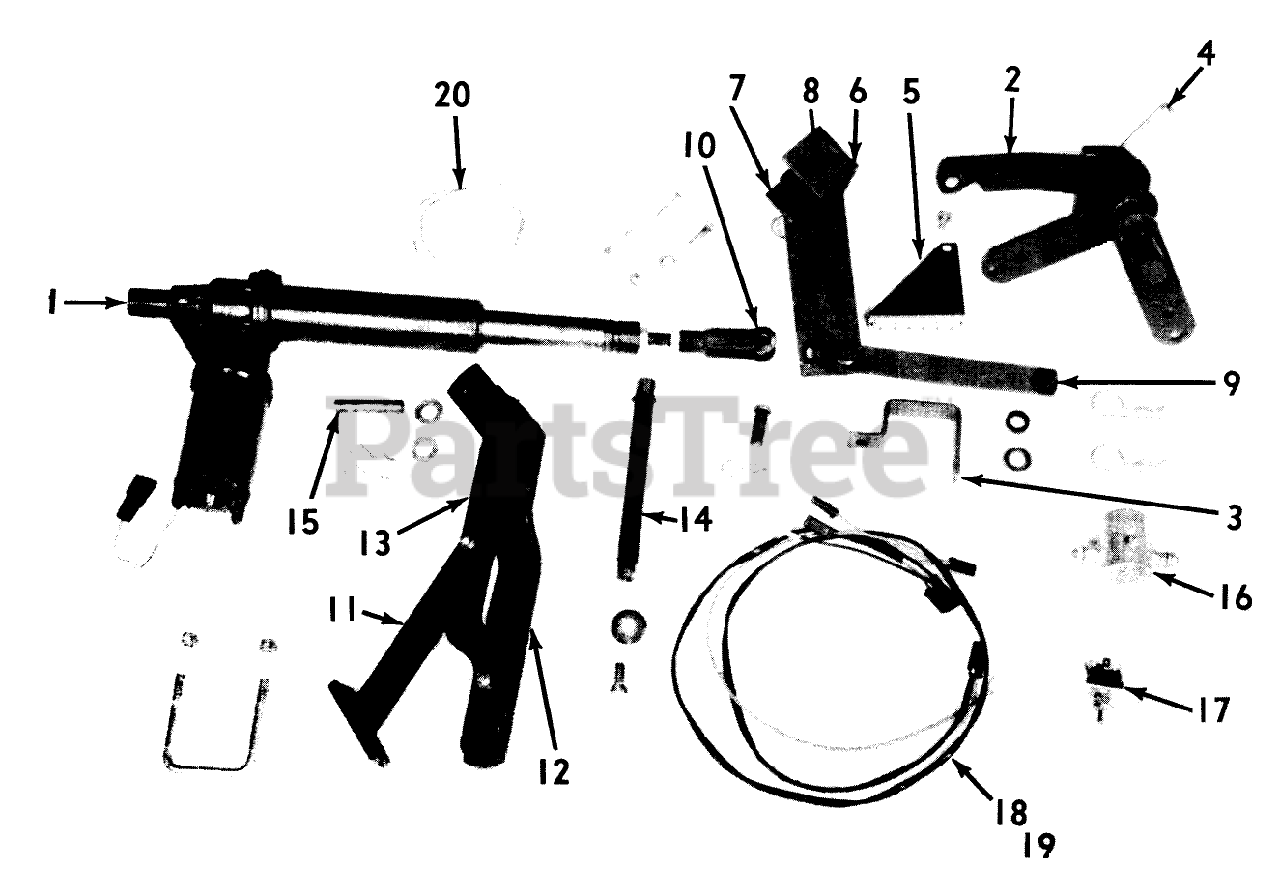

ELECTRIC LIFT ACCESSORY PARTS LIST-MODEL 8-4221 Parts Diagram

  • Title

N.S

Toro 101628

Bracket-Mounting

Note: Not shown in figure 9. see Figure 6.

$

$

Not available

1

Toro 101438

Assembly-Linear Actuator

$

$

Not available

2

Toro 6615

Lift Arm

$

$

Not available

Toro 933506-4

Hairpen

$

$

Currently unavailable

3

Toro 8007

Bracket

$

$

Currently unavailable

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

4

Toro 6629

Arm

$

$

Currently unavailable

Toro 920082-4

Lockwasher

$

$

Currently unavailable

Toro 920008-4

Washer

$

$

Currently unavailable

5

Toro 6628

Indicator Plate

$

$

Not available

Toro 6630

Decal

$

$

Currently unavailable

6

Toro 101284

Bracket-Pivot Mounting

$

$

Currently unavailable

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

Toro 908020-4

Bolt 5/16-18 x 11/4

$

$

Currently unavailable

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

Toro 6990

Spacer

$

$

Not available

7

Toro 101282

Assembly-Pivot Arm

$

$

Currently unavailable

8

Toro 101283

Pin-Pivot

$

$

Currently unavailable

Toro 933505-4

Hairpin

$

$

Currently unavailable

9

Toro 101245

Assembly-Lift Link

$

$

Currently unavailable

Toro 5943

SPACER

$

$

Not available

Toro 920011-4

Washer

$

$

Currently unavailable

Toro 932009-4

Hairpin

$

$

Currently unavailable

10

Toro 101246

Clevis

$

$

Not available

Toro 101247

Stud-Yoke

$

$

Currently unavailable

Toro 915238-4

Nut-1/2-13

$

$

Currently unavailable

Toro 932998-4

Pin-Clevis 1/2 x 1 1/2

$

$

Currently unavailable

11

Toro 101278

Assembly-Brace

$

$

Currently unavailable

Toro 2378

U-Bolt

$

$

Currently unavailable

Toro 915663-4

3/8-16 E.S.

$

$

Currently unavailable

12

Toro 101288

Assembly-Frame Arm

$

$

Currently unavailable

13

Toro 101290

Assembly-Frame Arm

$

$

Currently unavailable

14

Toro 1.01285

Pin-Anchor

$

$

Currently unavailable

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

Toro 101123

Spacer

$

$

Currently unavailable

15

Toro 101612

Pin-Anchor-Rear

$

$

Currently unavailable

16

Toro 101222

Solenoid

$

$

Not available

Toro 908001-4

Bolt, 1/4-x 1/2

$

$

Currently unavailable

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

17

Toro 8799

Switch

$

$

Not available

Toro 8785

Nut, Knurled

$

$

Not available

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

Toro 8759

Decal-Lift

$

$

Currently unavailable

18

Toro 101248

Harness-Wiring

$

$

Not available

19

Toro 101228

Wire-Battery-to-Solenoid

$

$

Not available

20

Toro 101229

Wire-Accessory-to-Solenoid

$

$

Currently unavailable

Toro 3023

SPEED CLIP

$

$

Not available

Toro 8519

CLIP-WIRE

$

$

Not available

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable
