84112 - Toro Hydraulic Lift (1974) PARTS LIST Parts Diagram

Hydraulic Lift

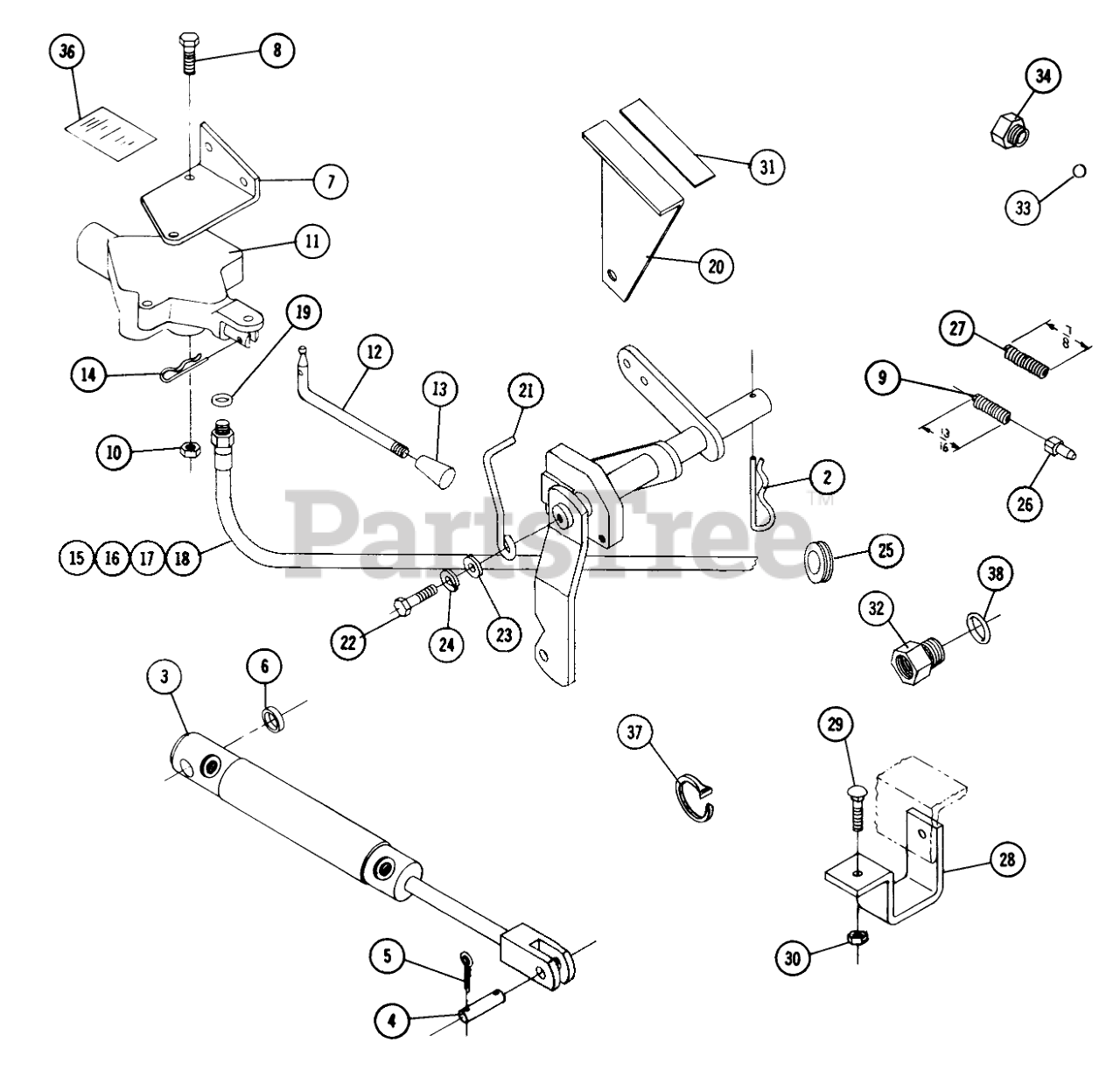

PARTS LIST Parts Diagram

  • Title
1

Toro 6615

Lift Arm

$

$

Not available

2

Toro 933506-4

Hairpen

$

$

Currently unavailable

3

Toro 6618

Cylinder
(Superseded to 105254)

$

$

Not available

4

Toro 6619

PIN

$

$

Not available

5

Toro 932017-4

Cotter Pin

$

$

Currently unavailable

6

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

7

Toro 102632

Support Valve

$

$

Currently unavailable

8

Toro 908006-4

Bolt 1/4 20 x 1 1/4

$

$

Currently unavailable

9

Toro 103110

SPRING VALVE SUNSTR
(Superseded to 25-2570)

$15.99

$

Usually ships in 3-6 days

0

10

Toro 915111-6

Nut-Nylok

$

$

Currently unavailable

11

Toro 6621

Valve

$

$

Not available

12

Toro 6622

VALVE LEVER

$

$

Not available

13

Toro 6623

Knob

$

$

Not available

14

Toro 933505-4

Hairpin

$

$

Currently unavailable

15

Toro 101420

HYD HOSE ASSY

$

$

Not available

16

Toro 101421

HYD HOSE ASSY

$

$

Not available

17

Toro 101422

Ass-y . Hose-14 1/2
(Superseded to 104983)

$

$

Not available

18

Toro 101423

HYD HOSE ASSY

$

$

Not available

19

Toro 973310

O RING

$5.99

$

In Stock, only 1 left!

0

20

Toro 6628

Indicator Plate

$

$

Not available

21

Toro 6629

Arm

$

$

Currently unavailable

22

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

23

Toro 920008-4

Washer

$

$

Currently unavailable

24

Toro 920082-4

Lockwasher

$

$

Currently unavailable

25

Toro 5439

Grommet

$

$

Not available

26

Toro 6632

Cone

$

$

Not available

27

Toro 6631

Spring

$

$

Not available

28

Toro 8007

Bracket

$

$

Currently unavailable

29

Toro 900214-4

Bolt-Carriage 5/16-18

$

$

Currently unavailable

30

Toro 915662-4

Nut 5/16-18

$

$

Currently unavailable

31

Toro 6630

Decal

$

$

Currently unavailable

32

Toro 102613

FITTING REDUCER

$

$

Not available

33

Toro 103216

Ball
(Superseded to 25-2490)

$17.99

$

Usually ships in 3-6 days

0

34

$

$

Not available

35

Toro 926715-4

Bolt, 3/8-16 x 3/4 S.T.

$

$

Currently unavailable

36

Toro 103209

Spring

$

$

Not available

37

Toro 100571

PLASTIC TIE

$

$

Not available

38

Toro 973370

0-Ring
(Superseded to 237-42)

$3.49

$

In Stock, Qty 20+

0

39

Toro 103574

Shim Set
(Superseded to 25-2470)

$59.99

$

Usually ships in 3-6 days

0
