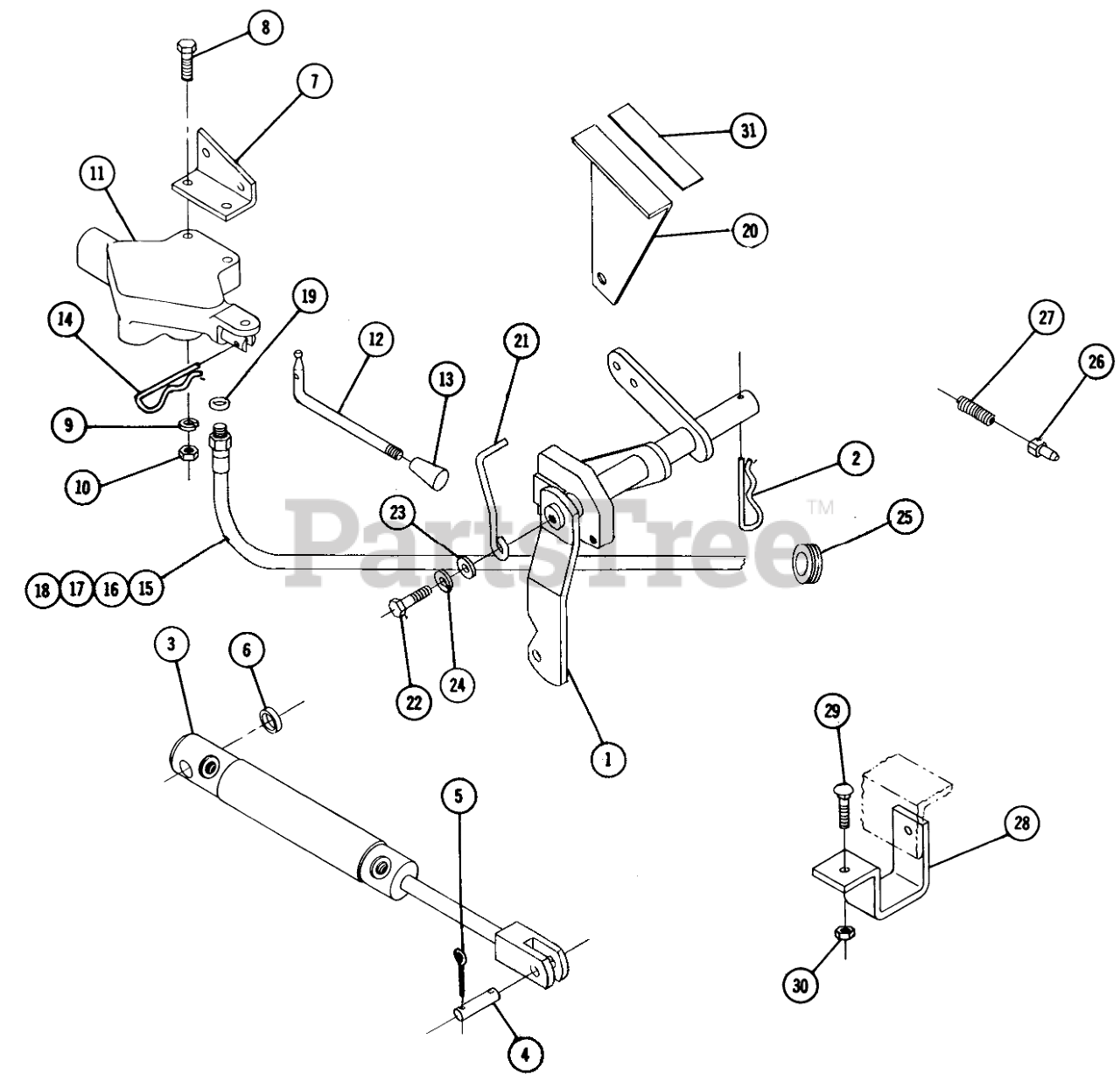

84111 - Toro Hydraulic Lift (1971) PARTS LIST Parts Diagram

Hydraulic Lift

PARTS LIST Parts Diagram

  • Title

1

Toro 6615

Lift Arm

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

2

Toro 933506-4

Hairpen

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

3

Toro 6618

Cylinder
(Superseded to 105254)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

4

Toro 6619

PIN

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

5

Toro 932017-4

Cotter Pin

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

6

Toro 4064

Spacer
(Superseded to 703269)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$122.99

$

Usually ships in 3-6 days

0

7

Toro 6620

SUPPORT-VALVE

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

8

Toro 908006-4

Bolt 1/4 20 x 1 1/4

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

9

Toro 920081-4

Lockwasher

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

10

Toro 915111-6

Nut-Nylok

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

11

Toro 6621

Valve

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

12

Toro 6622

VALVE LEVER

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

13

Toro 6623

Knob

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

14

Toro 933505-4

Hairpin

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

15

Toro 6624

Ass-y. Hose-29"
(Superseded to 101420)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

16

Toro 6625

Ass-y. Hose-20"
(Superseded to 101421)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

17

Toro 6626

Ass-y. Hose-14-1/2"
(Superseded to 104983)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

18

Toro 6627

Hose-111/2
(Superseded to 101423)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

19

Toro 970126

"O" Ring
(Superseded to 973310)

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$5.99

$

In Stock, only 2 left!

0

20

Toro 6628

Indicator Plate

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

21

Toro 6629

Arm

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

22

Toro 908017-4

Bolt 5/16-18 x

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

23

Toro 920008-4

Washer

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

24

Toro 920082-4

Lockwasher

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

25

Toro 5439

Grommet

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

26

Toro 6632

Cone

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

27

Toro 6631

Spring

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Not available

28

Toro 8007

Bracket

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

29

Toro 900214-4

Bolt-Carriage 5/16-18

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

30

Toro 915662-4

Nut 5/16-18

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable

31

Toro 6630

Decal

Note: All Specifications Subject to Change Without Notice. When ordering parts always list part no. and name of part.

$

$

Currently unavailable
