8401 - Lawn-Boy Walk-Behind Mower (SN: B00000001 - B99999999) (1983) Deck Group Parts Diagram

Walk-Behind Mower

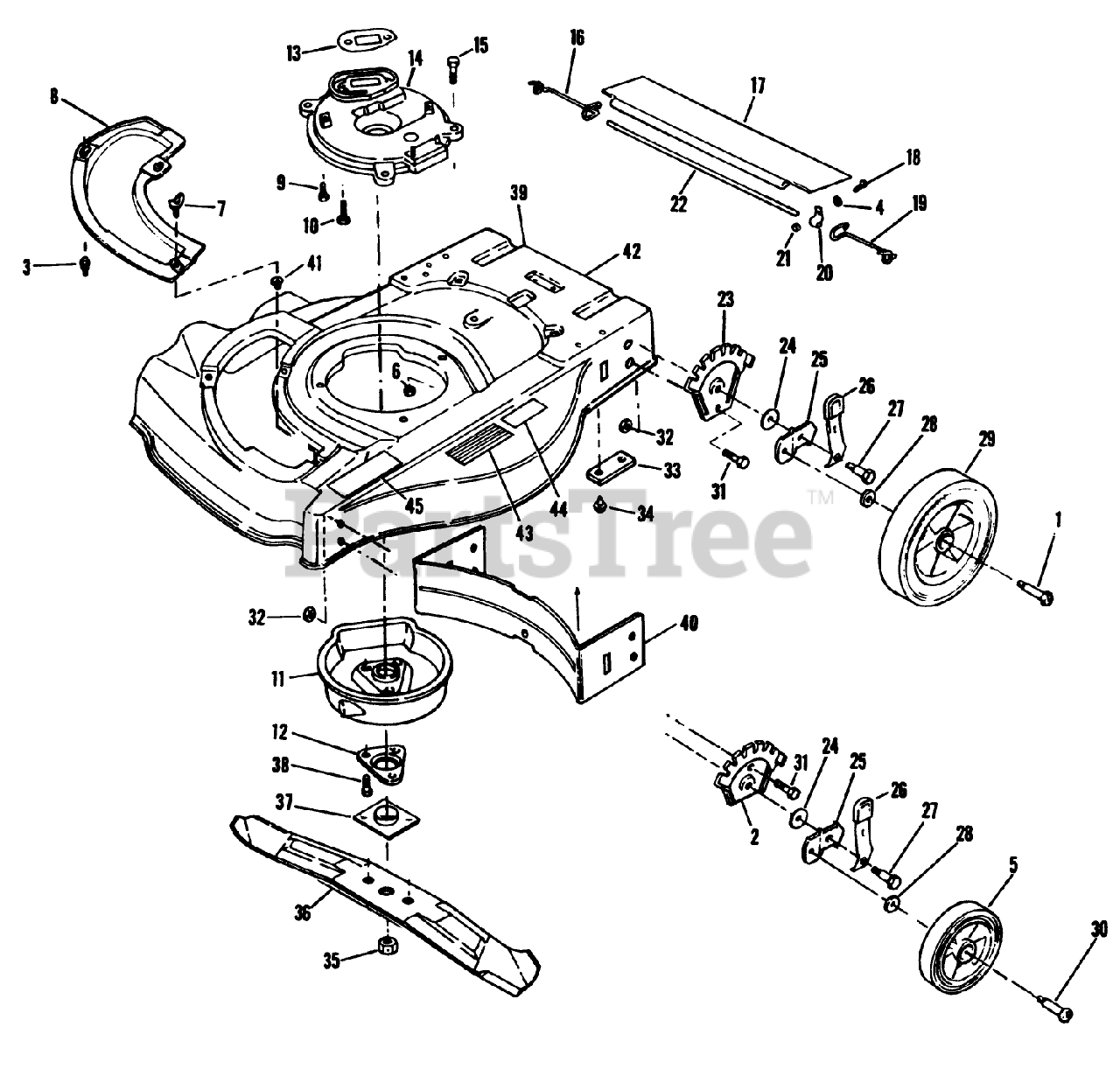

Deck Group Parts Diagram

  • Title

1

Lawn-Boy 611267

See Supercession: 614139
(Superseded to 614139)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

2

Lawn-Boy 610826

PLATE HGT ADJ TRO

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

2

Lawn-Boy 610826

PLATE HGT ADJ TRO

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$

$

Not available

2

Lawn-Boy 610826

PLATE HGT ADJ TRO

Note: IN "REFERENCE NO." CLOUMN.

$

$

Not available

3

Lawn-Boy 607809

See Supercession: 614677
(Superseded to 614677)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$4.49

$

In Stock, Qty 16

0

4

Lawn-Boy 610566

WASHER F

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

5

Lawn-Boy 682569

DISCONTINUED

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

6

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$3.49

$

Usually ships in 3-6 days

0

7

Lawn-Boy 606733

WING SCREW LAWRE

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$9.99

$

In Stock, Qty 6

0

8

Lawn-Boy 607560

See Supercession: 95-7052
(Superseded to 95-7052)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$36.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 609994

DISCONTINUED

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

10

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$4.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

11

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$

$

Not available

11

Lawn-Boy 682873

See Supercession: 682873-03
(Superseded to 682873-03)

Note: IN "REFERENCE NO." CLOUMN.

$

$

Not available

12

Lawn-Boy 609980

SUPPORT F

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

13

Lawn-Boy 610367

See Supercession: 613755
(Superseded to 613755)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$11.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 609989

PLATE,MUFFLER F

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$161.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 604862

SCREW

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

16

Lawn-Boy 608497

SPRING;TRAILING SHIELD RH

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

17

Lawn-Boy 611263

DISCONTINUED

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

17

Lawn-Boy 611263

DISCONTINUED

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$

$

Not available

17

Lawn-Boy 611263

DISCONTINUED

Note: IN "REFERENCE NO." CLOUMN.

$

$

Not available

18

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

19

Lawn-Boy 608498

SPRIG T/SHLD ASOC

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

20

Lawn-Boy 608161

CLAMP ROD KMC

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$11.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 608161

CLAMP ROD KMC

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$11.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 608161

CLAMP ROD KMC

Note: IN "REFERENCE NO." CLOUMN.

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$4.99

$

In Stock, only 2 left!

0

22

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$

$

Not available

22

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

22

Lawn-Boy 608160

ROD T/SHIELD ADV WIRE

Note: IN "REFERENCE NO." CLOUMN.

$

$

Not available

23

Lawn-Boy 610142

DISCONTINUED

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

24

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$14.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$27.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 681903

KNOB & SPRING

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

27

Lawn-Boy 608835

See Supercession: 610646
(Superseded to 610646)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$7.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 610361

WASHER-PLAIN

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$2.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 610361

WASHER-PLAIN

Note: IN "REFERENCE NO." CLOUMN.

$2.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 610361

WASHER-PLAIN

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$2.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 682570

DISCONTINUED

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

30

Lawn-Boy 610178

DISCONTINUED

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

31

Lawn-Boy 610039

See Supercession: 323-4
(Superseded to 323-4)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$3.99

$

In Stock, only 3 left!

0

32

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$2.99

$

In Stock, only 1 left!

0

33

Lawn-Boy 610828

See Supercession: 612337
(Superseded to 612337)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

34

Lawn-Boy 607188

SCREW

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$3.99

$

In Stock, only 3 left!

0

35

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$5.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 611240

See Supercession: 612543-03
(Superseded to 612543-03)

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$33.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 611240

See Supercession: 612543-03
(Superseded to 612543-03)

Note: IN "REFERENCE NO." CLOUMN.

$33.99

$

In Stock, only 3 left!

0

36

Lawn-Boy 611240

See Supercession: 612543-03
(Superseded to 612543-03)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$33.99

$

In Stock, only 3 left!

0

37

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$51.99

$

In Stock, only 1 left!

0

38

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$4.99

$

In Stock, Qty 14

0

39

Lawn-Boy 682770

See Supercession: 684513
(Superseded to 684513)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

39

Lawn-Boy 682770

See Supercession: 684513
(Superseded to 684513)

Note: PART NUMBERS NEW FOR THIS MODEL YEAR CAN BE IDENTIFIED BY THE BOX SYMBOL

$

$

Not available

39

Lawn-Boy 682770

See Supercession: 684513
(Superseded to 684513)

Note: IN "REFERENCE NO." CLOUMN.

$

$

Not available

40

Lawn-Boy 610825

See Supercession: 612494
(Superseded to 612494)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$60.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 604604

See Supercession: 94-1610
(Superseded to 94-1610)

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$1.49

$

In Stock, Qty 13

0

42

Lawn-Boy 610371

Decal

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Currently unavailable

43

Lawn-Boy 609961

PAD FOOT

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Not available

44

Lawn-Boy 610369

Decal-Starting Pad

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Currently unavailable

45

Lawn-Boy 610370

Decal

Note: Important Note: Painted, Plastic, Fibreglass Replacement parts or wheels may not always be available in matching colours.

$

$

Currently unavailable
