838 R (122-838R100) - Cub Cadet Walk-Behind Mower Engine (1992) B&S 5 HP - Short Block Assembly Parts Diagram

Walk-Behind Mower Engine

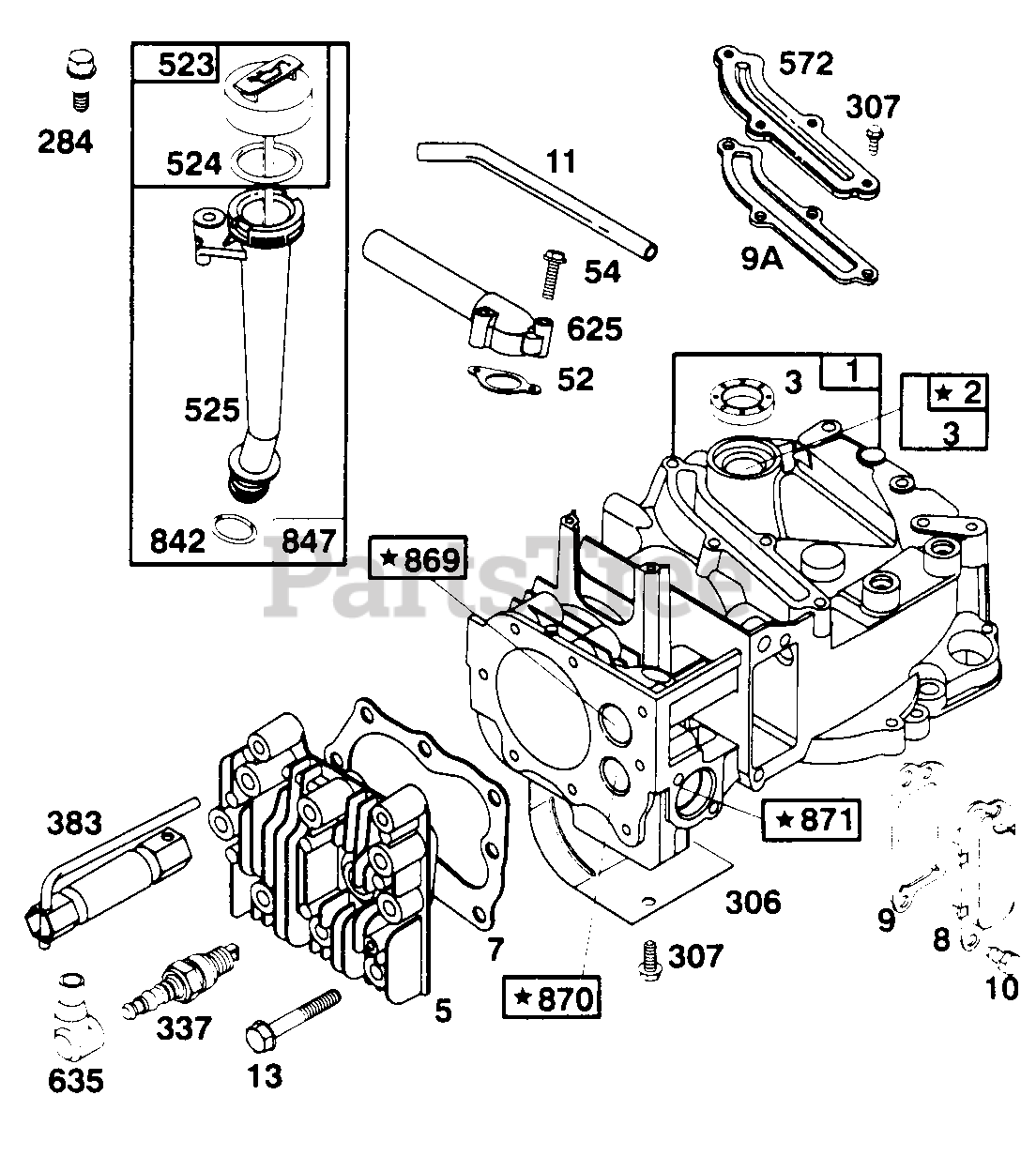

B&S 5 HP - Short Block Assembly Parts Diagram

  • Title

Cub Cadet BS-493837

Short Block

$

$

Not available

1

Cub Cadet BS-493260

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-293708

Bushing-Cylinder
(Superseded to BS-399269)

Note: (Requires Special Tools For Installation.)

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-213861

Head-Cylinder

$

$

Not available

7

Cub Cadet BS-272200

Gasket-Cylinder Hd.

$

$

Not available

8

Cub Cadet BS-494489

Breather-Valve Chamber
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-272481

Gasket-Valve Cover
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

9A

Cub Cadet BS-272238

Gasket-Baffle Plate
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94650

Screw-Breather Mtg.

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-231685

Tube-Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-94547

Screw-Cylinder Hd.
(Superseded to BS-690912)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet BS-272199

Gasket-Intake Elbow
(Superseded to BS-272199S)

$4.99

$

In Stock, only 2 left!

0

54

Cub Cadet BS-94526

Screw-Intake Elbow Mounting
(Superseded to BS-691650)

$2.99

$

Usually ships in 2-12 days

0

284

Cub Cadet BS-94511

Screw-Hex. Head
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 14

0

306

Cub Cadet BS-224324

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-94515

Screw-Hex. Head

$

$

Not available

337

Cub Cadet 759-3338

Plug-Spark (Resistor Type)

$3.49

$

In Stock, Qty 20+

0

383

Cub Cadet BS-89838

Wrench-Spark Plug
(Superseded to BS-89838S)

$6.49

$

In Stock, only 4 left!

0

523

Cub Cadet BS-493950

Cap With Dipstick-Oil Filler
(Superseded to BS-499621)

$17.99

$

In Stock, only 4 left!

0

524

Cub Cadet BS-280393

Seal-Filler Tube
(Superseded to BS-691031)

$5.49

$

In Stock, Qty 20+

0

525

Cub Cadet BS-493952

Tube-Oil Filler
(Superseded to BS-495265)

$

$

Not available

572

Cub Cadet BS-224328

Baffle-Cylinder

$

$

Not available

625

Cub Cadet BS-492717

Tube-Fuel Intake
(Superseded to BS-794305)

$

$

Not available

635

Cub Cadet BS-66538

Elbow-Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 12

0

842

Cub Cadet BS-280966

Seal-O-Ring
(Superseded to BS-692296)

$4.99

$

In Stock, Qty 8

0

847

Cub Cadet BS-493459

Dipstick and Tube Assy.-Oil Filler
(Superseded to BS-692047)

$

$

Not available

869

Cub Cadet BS-213512

Seat-Intake Valve (Standard)
(Superseded to BS-691155)

$8.99

$

In Stock, only 1 left!

0

870

Cub Cadet BS-213513

Seat-Exhaust Valve (Standard)

$

$

Not available

871

Cub Cadet BS-262001

Guide-Exhaust Valve

Note: (BS-63709 Guide-Intake Valve See Repair Instruction Manual.)

$13.99

$

Usually ships in 2-12 days

0
