838 R (121-838R100) - Cub Cadet Walk-Behind Mower (1991) Parts For Rotary Mower Part 2 Parts Diagram

Walk-Behind Mower

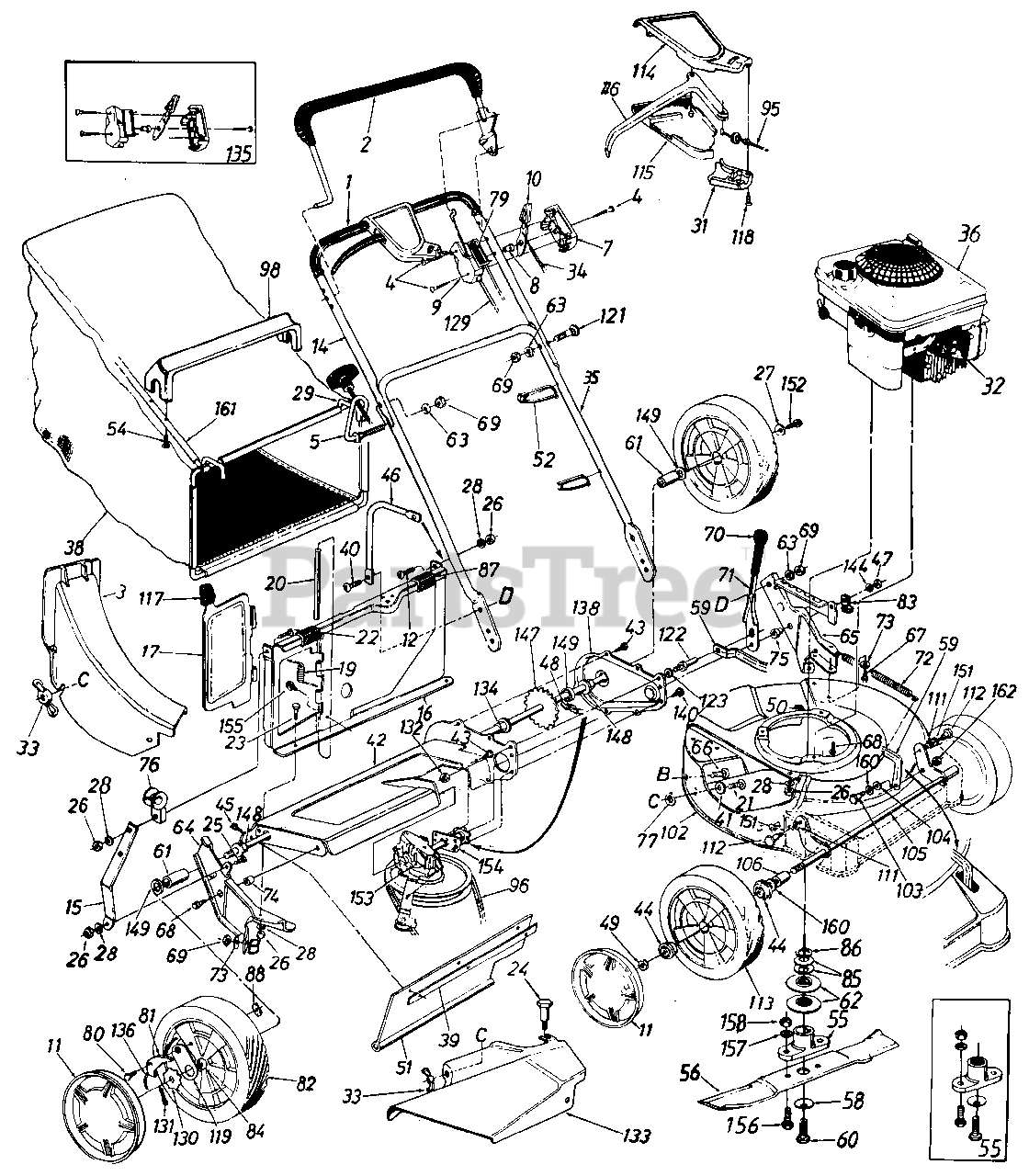

Parts For Rotary Mower Part 2 Parts Diagram

  • Title

1

Cub Cadet 720-0225

GRIP-FOAM
(Superseded to 720-0294A)

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 731-0609

BAIL-LH

$

$

Not available

3

Cub Cadet 731-1023

CHUTE ASSY BLACK

$

$

Not available

4

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0842B

SCREW-RECOIL HANDLE GUIDE

$

$

Not available

7

Cub Cadet 731-0817A

PANEL HALF-CONTROL

$

$

Not available

8

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

9

Cub Cadet 731-0816A

PANEL HALF-CLUTCH

$

$

Not available

10

Cub Cadet 731-0528A

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

Cub Cadet 731-0982

HUB CAP
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

12

Cub Cadet 710-0946

SCREW-TRUSS MACH

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 749-0439A

HANDLE-UPPER
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

15

Cub Cadet 16129A

BRACKET-PANEL SUP
(Superseded to 16129A-0637)

Variations

Cub Cadet 16129A-0637

BRACKET-PANEL SUP - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 16862

PANEL ASSY-CATCHER

Variations

Cub Cadet 16862-0483

PANEL ASSEMBLY-CATCHER - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 16862-0637

PANEL ASSEMBLY-CATCHER(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 16862-0638

PANEL ASSEMBLY-CATCHER(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 16862-0648

PANEL ASSEMBLY CATCHER(TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 16862-0662

PANEL ASSEMBLY-CATCHER(OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 16862-0665

PANEL ASSEMBLY-CATCHER(YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

Cub Cadet 17095

DOOR-TOP DISCHARGE

$

$

Not available

19

Cub Cadet 732-0483A

SPRING-TORSION

$10.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 747-0514

ROD

$

$

Not available

21

Cub Cadet 710-0134

BOLT-CARRIAGE 1/4-20 X .62

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0255

SCREW-TRUSS MACH
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 738-0704

SCREW-SHLD

Note: (Special)

$17.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 710-0258

SCREW-HEX 1/4-20 C .62
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0270

WASHER-SPRING BELL

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 747-0705

FRAME-CATCHER-FR
(Superseded to 747-0705-0637)

Variations

Cub Cadet 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-1059

COVER-SP CONTROL
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

32

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

33

Cub Cadet 712-0388

NUT-WING
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 746-0674

WIRE-THROTTLE
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

Cub Cadet 749-0725

HANDLE-LOWER PAINTED
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Note: Engine

$

$

Not available

38

Cub Cadet 764-0257

BAG-GRASS-BLACK
(Superseded to 964-0082)

$

$

Not available

39

Cub Cadet 14835

STRIP-RETAINING

$

$

Not available

40

Cub Cadet 710-0323

SCREW-TRUSS MACH 5/16-18 X .75

$4.99

$

In Stock, only 2 left!

0

41

Cub Cadet 736-0204

WASHER-FL-.344 ID X .62 OD X .033

$4.49

$

In Stock, Qty 8

0

42

Cub Cadet 17055B

AXLE ASSY-CHAIN

Variations

Cub Cadet 17055B-0483

AXLE ASSEMBLY-CHAIN CHARCOAL - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17055B-0498

AXLE ASSEMBLY-CHAIN (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17055B-0629

AXLE ASSEMBLY-CHAIN SILVER FLAK - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 17055B-0637

AXLE ASSY-CHAIN - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17055B-0638

AXLE ASSY-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17055B-0648

AXLE ASSEMBLY-CHAIN (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

Cub Cadet 17055B-0650

AXLE ASSEMBLY-CHAIN RED METALL - RED METALLIC (0650)

$

$

Not available

Cub Cadet 17055B-0662

AXLE ASSEMBLY-CHAIN (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 17055B-0665

USE 17055B-0637 AXLE ASSY-CHA - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 17055B-0667

AXLE ASSEMBLY-CHAIN MIDNIGHT BL - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 17055B-0691

AXLE ASSEMBLY-CHAIN (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

43

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0776A

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-0776A

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 712-0296

NUT-HEX LOCK 3/8-24
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

Cub Cadet 713-0353

#48 CHAIN 1/2 PITCH
(Superseded to 913-0353)

$

$

Not available

49

Cub Cadet 712-0346

NUT-HEX INS L-1/2-20

$4.99

$

In Stock, Qty 9

0

50

Cub Cadet 731-0564

PLUG

$

$

Not available

51

Cub Cadet 731-0672A

FLAP-RR

$31.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 726-0240

TIE-CABLE
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

54

Cub Cadet 710-1025

SCREW-HEX AB-TAP

$6.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 753-0485

KIT-BLADE ADAPTER-SPLINED

$46.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 742-0306A

BLADE-21IN
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

58

Cub Cadet 736-0432

BELL-WASH. .46" I.D. X 1.13" O.D.

$

$

Currently unavailable

59

Cub Cadet 16863

ARM-HGT ADJ CONNECT

$

$

Not available

60

Cub Cadet 710-0757

SCREW-HEX 7/16-20 X 1.50

$9.99

$

In Stock, only 1 left!

0

61

Cub Cadet 748-0190

SPACER-.513 ID X .703 OD X .69

$6.49

$

In Stock, only 1 left!

0

62

Cub Cadet 756-0502

PULLEY HALF-SERRATED
(Superseded to 956-0502)

$

$

Not available

63

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

Cub Cadet 16136A

BRACKET ASSY-HDLE-RH
(Superseded to 16136C-0637)

$

$

Not available

65

Cub Cadet 16137B

BRACKET ASSY-HDLE-LH
(Superseded to 16137C-0637)

$

$

Not available

66

Cub Cadet 710-0260

BOLT-CARRIAGE 5/16-18 X .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-0654A

SCREW-HEX R

$4.49

$

In Stock, only 3 left!

0

69

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 720-0223

GRIP

$14.99

$

In Stock, Qty 6

0

71

Cub Cadet 732-0606

LEVER-HGT ADJ

$

$

Not available

72

Cub Cadet 732-0362

SPRING-EXTENSION
(Superseded to 932-0362)

$

$

Not available

73

Cub Cadet 736-0242

WASHER-BELL .337 X .867 X .057

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 750-0736

SPACER
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

Cub Cadet 750-0624

SPACER-SHLD .500 X .100

$

$

Not available

76

Cub Cadet 719-0279

GUIDE-ROPE

$15.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 726-0233

RETAINER-BOLT 1/4X.50 OD

$4.49

$

In Stock, only 3 left!

0

79

Cub Cadet 777-5812

LABEL

$

$

Not available

80

Cub Cadet 738-0137

SCREW-SHLD .342 DIA X .268

$

$

Not available

81

Cub Cadet 748-0188B

PAWL
(Superseded to 948-0188B)

$11.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 734-1514A

WHEEL ASSY W/TIRE
(Superseded to 734-1826)

$33.99

$

In Stock, only 2 left!

0

83

Cub Cadet 726-0175

CLAMP

$

$

Not available

84

Cub Cadet 741-0486B

BEARING

$

$

Not available

85

Cub Cadet 736-0450

WASHER-BELL 1.008X 1.625 X .042

$

$

Not available

86

Cub Cadet 748-0332

SPACER-CRANKSHAFT 1.005X1.625X.296

$

$

Not available

87

Cub Cadet 731-0880

CLIP-PANEL BAG

$3.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 712-0189

NUT-FLAT WELD 1/4 X 20

$

$

Not available

95

Cub Cadet 746-0710

CABLE-CLUTCH
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

Cub Cadet 754-0343

BELT-V 3/8 X 31.0
(Superseded to 954-0343)

$29.99

$

In Stock, only 4 left!

0

98

Cub Cadet 731-0801

HANDLE-BAG-BLACK

$

$

Not available

102

Cub Cadet 16859

DECK ASSEMBLY-21IN

Note: Color Code 498

$

$

Currently unavailable

103

Cub Cadet 738-0234

SCREW-SHLD .500 DIA X .295

$10.99

$

In Stock, only 1 left!

0

104

Cub Cadet 736-0253

WASHER-BELL .505 ID X 1.00 OD

$3.99

$

In Stock, Qty 20+

0

105

Cub Cadet 16856

AXLE ASSY
(Superseded to 982-7509-0637)

$

$

Not available

106

Cub Cadet 711-0313

SLEEVE

$

$

Not available

111

Cub Cadet 736-0221

WASHER-INTERN L 3/8 X.56 OD X .018

$

$

Not available

112

Cub Cadet 738-0705

SCREW-SHLD
(Superseded to 938-0705)

$

$

Not available

113

Cub Cadet 734-1517A

WHEEL ASSY W/TIRE
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 731-1057

COVER-SP CONTROL
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

115

Cub Cadet 731-1058

COVER-HALF CONT-LWR
(Superseded to 753-0833)

$50.99

$

In Stock, only 1 left!

0

116

Cub Cadet 731-0620

LEVER-CONTROL
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

Cub Cadet 720-0190

KNOB
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

Cub Cadet 710-0841

SCREW-FL C-SUNK AB

$4.49

$

Usually ships in 3-6 days

0

119

Cub Cadet 16855

PLATE-PAWL

$6.49

$

In Stock, Qty 6

0

121

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

122

Cub Cadet 711-0805

PIN-SHLD 3/8-24X1.43 LG

$

$

Not available

123

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

129

Cub Cadet 746-0480A

CABLE-CONTROL

$

$

Not available

130

Cub Cadet 748-0318

RATCHET
(Superseded to 948-0318)

$10.99

$

In Stock, only 2 left!

0

131

Cub Cadet 714-0115

PIN-COTTER-1/8 DIA X 1.00

$3.99

$

Usually ships in 3-6 days

0

132

Cub Cadet 712-0711

NUT-HEX JAM 3/8X24

$4.49

$

In Stock, Qty 20+

0

133

Cub Cadet 731-0884

DEFLECTOR-SIDE CHUTE

$

$

Not available

134

Cub Cadet 741-0522

BEARING-HEX FLANGE

$

$

Not available

135

Cub Cadet 753-0430

KIT-THROTTLE CONTROL

$

$

Not available

136

Cub Cadet 10622B

SPRING-NYLON

$5.49

$

In Stock, Qty 20+

0

138

Cub Cadet 17053A

COVER-CHAIN

Variations

Cub Cadet 17053A-0480

COVER-CHAIN - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 17053A-0483

COVER-CHAIN - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 17053A-0637

COVER-CHAIN (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17053A-0638

COVER-CHAIN - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 17053A-0650

COVER-CHAIN - RED METALLIC (0650)

$

$

Not available

Cub Cadet 17053A-0662

COVER-CHAIN - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 17053A-0665

COVER-CHAIN - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 17053A-0674

COVER-CHAIN - YARDMAN YELLOW (0674)

$

$

Not available

$

$

140

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

144

Cub Cadet 736-0300

WASHER-FL-.385 ID X .87 OD X .06

$4.49

$

In Stock, Qty 20+

0

147

Cub Cadet 738-0719A

SHAFT ASSY-REAR
(Superseded to 938-0719A)

$

$

Not available

148

Cub Cadet 741-0324

BEARING-HEX FLANGE .506 ID
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

149

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$4.49

$

In Stock, only 2 left!

0

151

Cub Cadet 741-0491

BEARING-NYLINER

$5.49

$

In Stock, only 4 left!

0

152

Cub Cadet 710-0751

SCREW-1/4-20 X .62

$3.99

$

In Stock, Qty 20+

0

153

Cub Cadet 717-0417B

TRANSMISSION-COMP
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

Cub Cadet 16500A

BEARING-CUP HEX
(Superseded to 16500A-0637)

Variations

Cub Cadet 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

155

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

156

Cub Cadet 710-1055

SCREW-HEX 3/8-24 X 1 LG

$4.99

$

Usually ships in 3-6 days

0

157

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

158

Cub Cadet 712-0241

NUT-HEX 3/8-24

$4.49

$

In Stock, Qty 13

0

160

Cub Cadet 736-0108

WASHER-FL-.510 ID X .75 OD X .033

$6.99

$

Usually ships in 3-6 days

0

161

Cub Cadet 749-0764A

FRAME-CATCHER-RR
(Superseded to 749-0764A-0637)

Variations

Cub Cadet 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

162

Cub Cadet 712-0266

NUT-HEX CENTER L-JAM
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0
