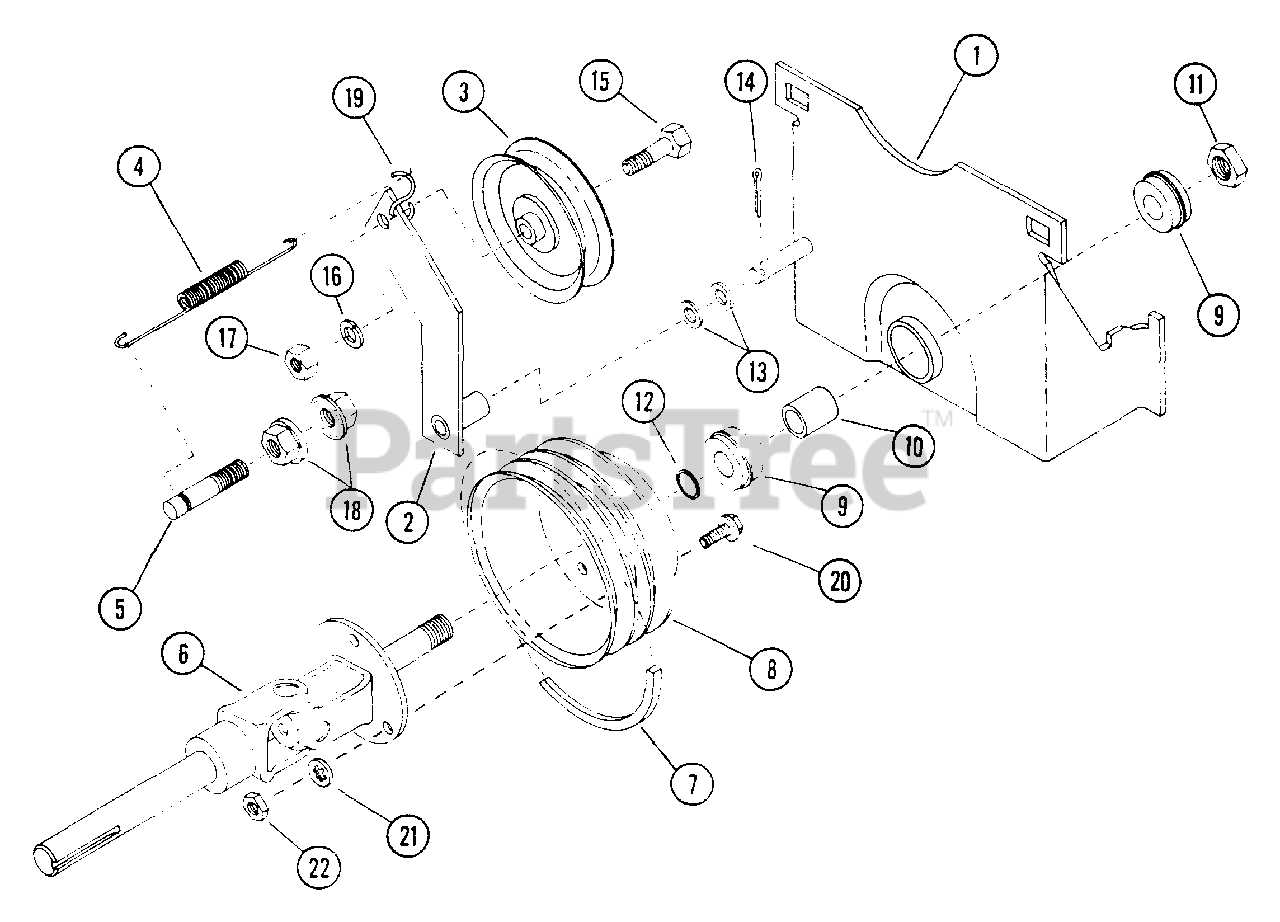

83699 - Snapper LTST, 36" LT/YT Series Snow Thrower Attachment Mounting Bracket & Drive Parts Diagram

LTST, 36" LT/YT Series Snow Thrower Attachment

Mounting Bracket & Drive Parts Diagram

  • Title
1

Snapper 7047848

BRACKET, Drive Mounting

$

$

Not available

2

Snapper 7040505

ARM, Idler

$

$

Currently unavailable

3

Snapper 7018574

IDLER, Flat (4.12 O.D.)
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

4

Snapper 7014211

SPRING, Idler to anchor
(Superseded to 7014211YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 7021932

ANCHOR, Spring (1/2-13 thread)
(Superseded to 7021932YP)

$9.49

$

Usually ships in 2-12 days

0

6

Snapper 18649

DRIVE-SHAFT, (Universal)

$

$

Currently unavailable

7

Snapper 7014717

BELT, Drive
(Superseded to 7014717YP)

$24.99

$

Usually ships in 2-12 days

0

8

Snapper 18647

PULLEY, Offset

$

$

Currently unavailable

9

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

10

$

$

Not available

11

Snapper 7090356

LOCKNUT, 5/8-18 Hex Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 19

0

12

Snapper 7010690

WASHER, Shim
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 7090122

WASHER, 3/8 SAE (Flat)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7090817

COTTER-PIN, 3/32x3/4

$

$

Not available

15

Snapper 7091497

CAPSCREW, 3/8-Cx1-1/2 Hex Head
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, only 1 left!

0

16

Snapper 7090118

LOCKWASHER, 3/8 Split
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

17

Snapper 7091302

NUT, 3/8C Hex
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7090619

LOCKNUT, 1/2-13 Hex Flange
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7013917

S-HOOK
(Superseded to 7013917YP)

$3.99

$

In Stock, only 1 left!

0

20

Snapper 7091495

CAPSCREW, 1/4Cx3/4 Hex
(Superseded to 703925)

Note: Was 90073 (NOT USED on early production drive shafts & pulleys [welded together])

$4.49

$

In Stock, Qty 7

0

21

Snapper 7090053

LOCKWASHER, 1/4 Internal Tooth
(Superseded to 703462)

Note: Was 12737 (NOT USED on early production drive shafts & pulleys [welded together])

$4.49

$

In Stock, Qty 7

0

22

Snapper 7091576

NUT, 1/4C Hex
(Superseded to 703127)

Note: Was 90063 (NOT USED on early production drive shafts & pulleys (welded together))

$3.49

$

In Stock, Qty 20+

0
