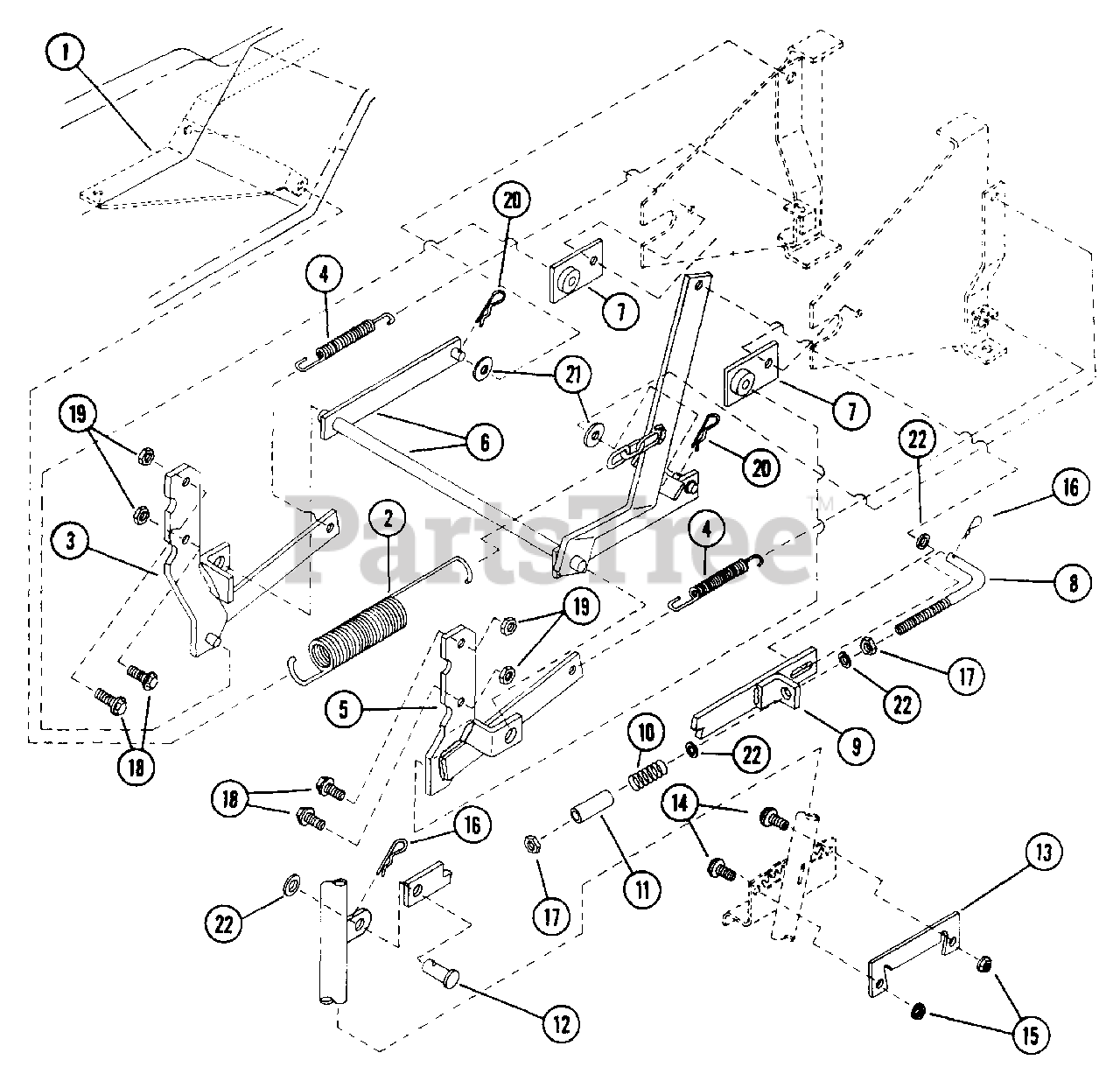

83699 - Snapper LTST, 36" LT/YT Series Snow Thrower Attachment Lift Components Parts Diagram

LTST, 36" LT/YT Series Snow Thrower Attachment

Lift Components Parts Diagram

  • Title
1

Snapper 7038125

BRACKET, Spring Attaching

$

$

Not available

2

Snapper 7014655

SPRING, Lift Assist
(Superseded to 7014655YP)

$33.99

$

Usually ships in 2-12 days

0

3

Snapper 7049715

ARM, Left Hand Support

$

$

Not available

4

$

$

Not available

5

Snapper 7049716

ARM, Right Hand Support

$

$

Currently unavailable

6

Snapper 7049712

LIFT-LEVER Structure

$

$

Not available

7

Snapper 7040504

PIVOT (Structure)

$

$

Currently unavailable

8

Snapper 7014670

ADJUSTER
(Superseded to 7014670YP)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 40506

LIFT BAR

$

$

Currently unavailable

10

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 14679

SPACER

$

$

Currently unavailable

12

Snapper 7029687

PIN, 3/8 x 1 1/16" Clevis
(Superseded to 7029687YP)

Note: Was 10736

$7.99

$

In Stock, only 1 left!

0

13

Snapper 7032378

PLATE, Lockout (Quadrant)
(Superseded to 7032378YP)

$

$

Not available

14

Snapper 7090803

CARRIAGE BOLT, 1/4-20x5/8
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7091584

LOCKNUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

16

Snapper 7091503

COTTER HAIRPIN, 1.43 Long
(Superseded to 7091503SM)

Note: Was 12420

$3.99

$

In Stock, Qty 20+

0

17

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

18

Snapper 7090659

LOCK-BOLT, 3/8-16x1-1/4 Hex
(Superseded to 7090659YP)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7091619

LOCKNUT, 3/8-16 Hex Flange
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

20

Snapper 7091596

COTTER HAIRPIN
(Superseded to 7091596YP)

Note: Was 13844

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7090250

WASHER, 1/2 SAE (Flat)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

22

Snapper 7090122

WASHER, 3/8 SAE (Flat)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0
