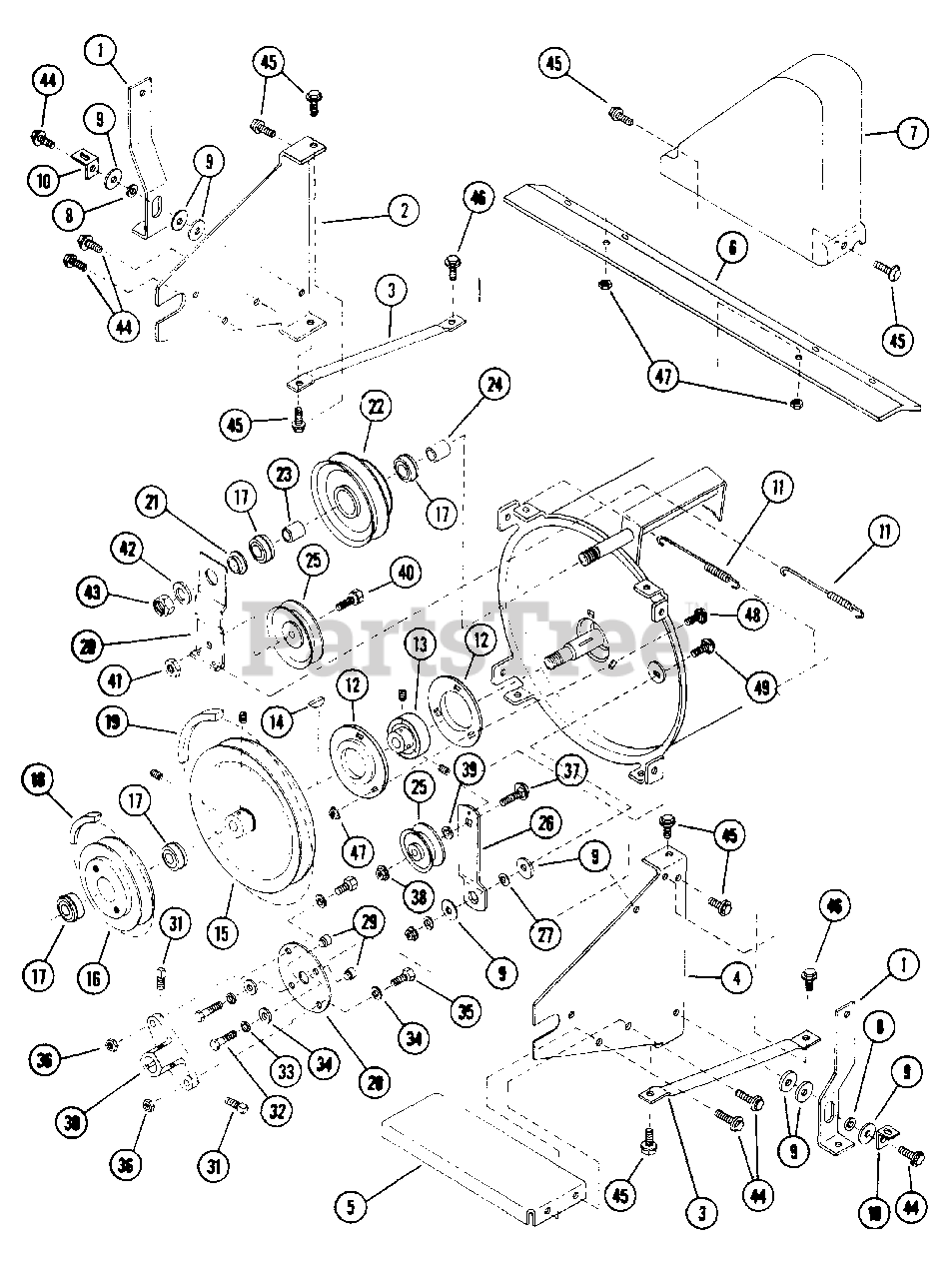

83699 - Snapper LTST, 36" LT/YT Series Snow Thrower Attachment Blower & Belts (Rear View) Parts Diagram

LTST, 36" LT/YT Series Snow Thrower Attachment

Blower & Belts (Rear View) Parts Diagram

  • Title

1

Snapper 38011

LINK, Lift

$

$

Currently unavailable

2

Snapper 7036102

BRACKET, LH Mounting

$

$

Currently unavailable

3

Snapper 7038041

BRACE, Side
(Superseded to 7038041YP)

Note: Was 38126

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 36101

BRACKET, RH Mounting

$

$

Currently unavailable

5

Snapper 38119

BRACE, Center

$

$

Currently unavailable

6

Snapper 7038118

BAR, Stiffener
(Superseded to 7038118YP)

$66.99

$

Usually ships in 2-12 days

0

7

Snapper 7019707

COVER, Belt Guard
(Superseded to 7019707YP)

$23.99

$

Usually ships in 2-12 days

0

8

Snapper 7014206

SPACERS

$

$

Not available

9

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 7031024

BRACKET, Shift

$

$

Currently unavailable

11

Snapper 7014211

SPRING, Idler
(Superseded to 7014211YP)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 7013931

HOUSING, Bearing

$

$

Not available

13

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes two setscrews)

$43.99

$

In Stock, only 1 left!

0

14

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

15

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Includes two setscrews)

$82.99

$

Usually ships in 2-12 days

0

16

Snapper 7018648

PULLEY, 5.25 OD (Iron)

$

$

Currently unavailable

17

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

18

Snapper 7014716

BELT, 41"
(Superseded to 7014716YP)

$21.99

$

Usually ships in 2-12 days

0

19

Snapper 7013939

BELT, Blower
(Superseded to 7013939YP)

$26.99

$

In Stock, Qty 20+

0

20

Snapper 7032363

ARM, Idler

$

$

Not available

21

Snapper 7021924

BUSHING

$

$

Currently unavailable

22

Snapper 18516

SHEAVE, Reduction

$

$

Currently unavailable

23

Snapper 7021849

SPACER, .765"

$

$

Not available

24

Snapper 7021913

SPACER, .625"

$

$

Not available

25

Snapper 7013850

IDLER
(Superseded to 7013850YP)

$20.99

$

In Stock, only 4 left!

0

26

Snapper 7032192

ARM, Idler

$

$

Currently unavailable

27

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7014718

DISC, Flex-Coupling

$

$

Not available

29

Snapper 7014395

SPACER, Flex Coupling

$

$

Not available

30

Snapper 7018626

HUB, Flex Coupling
(Superseded to 7018626YP)

$317.99

$

Usually ships in 2-12 days

0

31

Snapper 7090848

SETSCREW, 5/16-18x1/2 Square Head
(Superseded to 7090848SM)

$10.99

$

In Stock, only 1 left!

0

32

Snapper 7091328

CAPSCREW, 3/8-16x1-1/4 Hex Head
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

33

Snapper 7090118

LOCKWASHER, 3/8 Split
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

34

Snapper 7032070

WASHER, 3/8" Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

35

Snapper 7090138

CAPSCREW, 3/8cx1 Hex Head
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7091585

LOCKNUT, 3/8C Hex
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

37

Snapper 7090791

CARRIAGE BOLT, 3/8Cx1-1/2 SN
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

38

Snapper 7090499

LOCKNUT, 3/8C Hex
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 7090500

WASHER

$2.99

$

In Stock, Qty 7

0

40

Snapper 7091294

CAPSCREW, 3/8-16x1-1/2 Hex Head
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

41

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90504

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 7010690

WASHER, 5/8-18
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 7090356

LOCKNUT, 5/8-18 Hex Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 20+

0

44

Snapper 7090369

SCREW, 5/16-18x1 Self Tap
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper 7090361

SCREW, 5/16-18x5/8 Self Tap
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

46

Snapper 7090606

BOLT, 5/16-18x5/8 Hex Flange Lock
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

47

Snapper 7091601

LOCKNUT, 5/16-18 Hex Flange
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

48

Snapper 7091508

CARRIAGE BOLT, 5/16-18x3/4 Short Neck
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

49

Snapper 7091303

CARRIAGE BOLT, 5/16-18x1 Short Neck
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0
